INSTALLATION

(Continued)

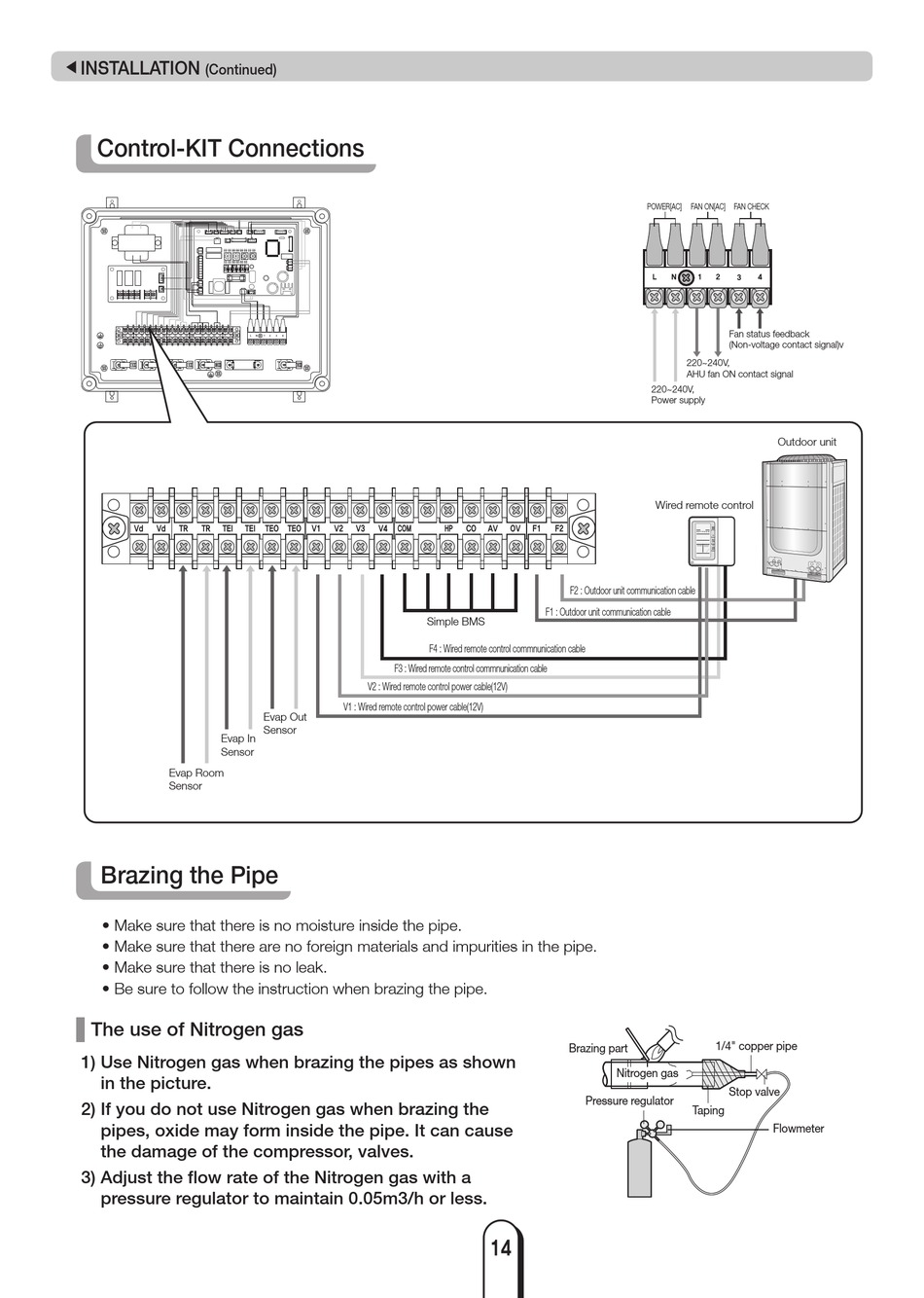

Control-KIT Connections

1 2 3 4 1 2 3 4 1 2 3 4
Vd Vd TR TR TEI
Evap In
Sensor
Evap Room
Sensor

Brazing the Pipe

• Make sure that there is no moisture inside the pipe.
• Make sure that there are no foreign materials and impurities in the pipe.
• Make sure that there is no leak.
• Be sure to follow the instruction when brazing the pipe.
The use of Nitrogen gas
1) Use Nitrogen gas when brazing the pipes as shown
in the picture.
2) If you do not use Nitrogen gas when brazing the
pipes, oxide may form inside the pipe. It can cause
the damage of the compressor, valves.
3) Adjust the flow rate of the Nitrogen gas with a
pressure regulator to maintain 0.05m3/h or less.
TEI TEO TEO V1 V2 V3 V4 COM
F3 : Wired remote control commnunication cable
V2 : Wired remote control power cable(12V)
V1 : Wired remote control power cable(12V)
Evap Out
Sensor
HP CO AV OV F1 F2
F2 : Outdoor unit communication cable
F1 : Outdoor unit communication cable
Simple BMS
F4 : Wired remote control commnunication cable
Brazing part
Pressure regulator
14
POWER[AC] FAN ON[AC] FAN CHECK
L
N 1 2 3 4
Fan status feedback
(Non-voltage contact signal)v
220~240V,
AHU fan ON contact signal
220~240V,
Power supply
Outdoor unit
Wired remote control
1/4" copper pipe
Nitrogen gas
Stop valve
Taping
Flowmeter
