REVEAL® FREE STANDING OVER-UNDER REFRIGERATED CONVERTIBLE MERCHANDISERS
> CONVERTIBLE UPPER SECTION MAY BE EITHER AMBIENT OR REFRIGERATED
> REFRIGERATED LOWER SECTION
> SELF-CONTAINED OR REMOTE UNITS
> UPPER SECTION: REAR SLIDING DOORS and SINGLE SHELF
> LOWER SECTION: REAR SLIDING DOORS WITH PERFORATED
ACRYLIC PLENUMS
> DEPENDING UPON OPTIONS CHOSEN, LOWER SECTION MAY
HAVE NO SHELVING, SHELVING OR RISERS (IN LIEU OF SHELVING)
--- --- --- --- ---
> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!

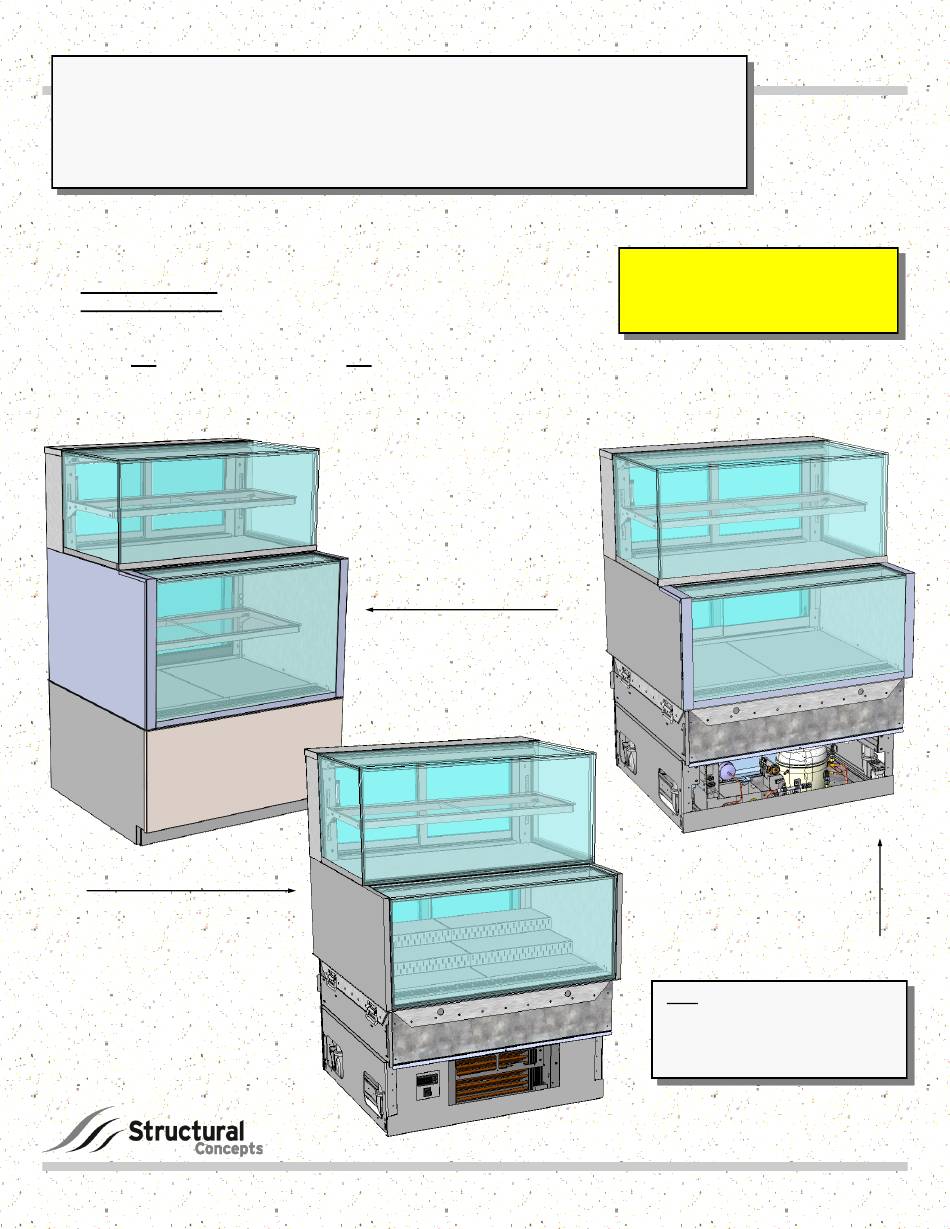

Reveal® Model NR3651RRSV
Rear Sliding Doors and Acrylic
Perforated Plenums / Optional
Product Steps / Shown As Shipped
From Factory (Without Attached
Components) / Front Slide-Out
Access To Condenser Package
Manuals\Reveal_Over-Under Refrigerated Service Case Operating Manual_21-22964.pub
READ AND SAVE THESE INSTRUCTIONS
®
Reveal® Model NR3658RRSV
Rear Sliding Doors and Acrylic
Perforated Plenums / Cladding
Shown Attached
Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
INSTALLATION
AND OPERATING
MANUAL
Models Are Shipped WITHOUT
Panels and Cladding Attached.
See Pages 10 & 11 For Component
Reveal® Model NR3651RRSV /
Rear Sliding Doors and Acrylic
Perforated Plenums / Shown As
Shipped From Factory (Without
Attached Components) / Rear Slide-
Out Access To Condenser Package
Reflect Every Feature Or Option Of
Your Particular Model. See Page 3
SCC P/N
21-22964
Attachment Instructions.
Note: Illustrations Shown May Not
Of Manual For List Of Models To
Which This Manual Is Applicable.
Rev B Date: 12.15.2021
