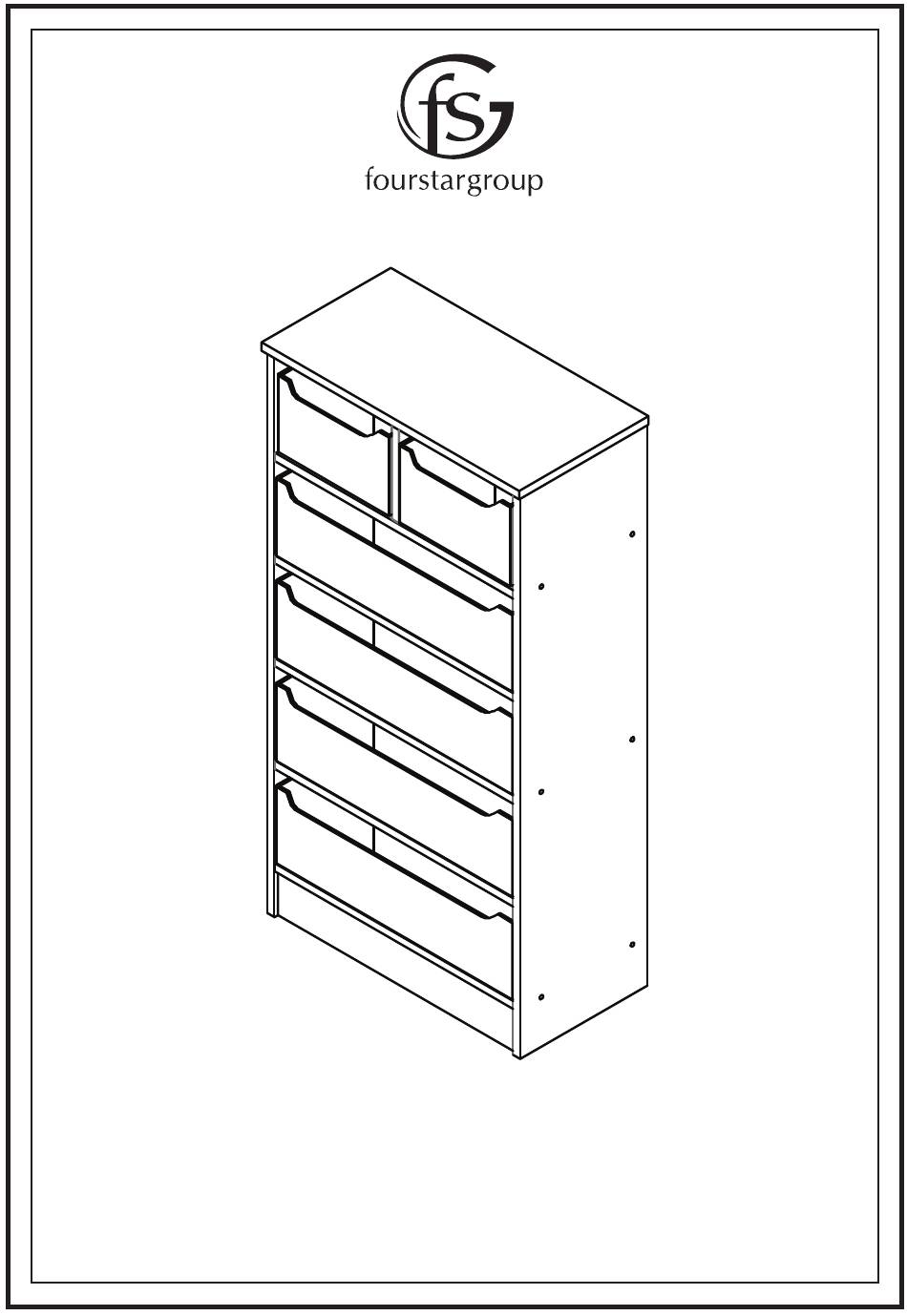

- Page 1 MODEL: 11210929 6 DRAWER ORGANIZER...
-
Page 2: Hardware List
PARTS LIST AND HARDWARE HARDWARE LIST DOWEL M6 x 30 mm 16 PCS 12 PCS SCREW 1 PC WHITE GLUE DOWEL M5 x 20 mm 4 PCS PARTS LIST 1 PC LEFT SIDE PANEL 1 PC RIGHT SIDE PANEL TOP PANEL 1 PC CENTER PANEL 1 PC... - Page 3 BEFORE YOU BEGIN , PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1.1 INSTALL THE DOWEL (1) TO THE CENTER PANEL (D), FIX PANEL (G) AND THE SIDE PANELS (A & B) USING THE GLUE (3), AS SHOWN. 1.2 INSTALL THE DOWEL (4) TO THE BOTTOM BAR (F) USING THE GLUE (3), AS SHOWN.
- Page 5 STEP 2 ATTACH THE FIX PANELS (G) TO THE SIDE PANELS (A &B) USING THE DOWELS (1) AND GLUE (3), THEN ATTACH THE FIX PANELS (E & H) WITH THE BOTTOM BAR (F) AND THE SIDE PANELS (A & B) USING THE SCREWS (2), AS SHOWN. 2 SCREW - 12 PCS 3 WITH GLUE - 1PC...
- Page 6 STEP 3 3.1 ATTACH THE CENTER PANEL (D) ONTO THE FIX PANEL (E) USING THE DOWEL (1) AND GLUE (3), AS SHOWN. 3.2 ATTACH THE TOP PANEL (C) TO THE CENTER PANEL (D) AND SIDE PANELS (A & B) USING THE DOWEL (1) AND GLUE (3), AS SHOWN.
- Page 7 STEP 4 UNFOLD THE BINS (I & J) AND INSERT THE CARDBOARD, AS SHOWN. THEN SLIDE THE BINS (I & J) TO THE ASSEMBLED ORGANIZER, AS SHOWN.
- Page 8 This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved. Have a friend help to lift and carry the unit to it's new location.
