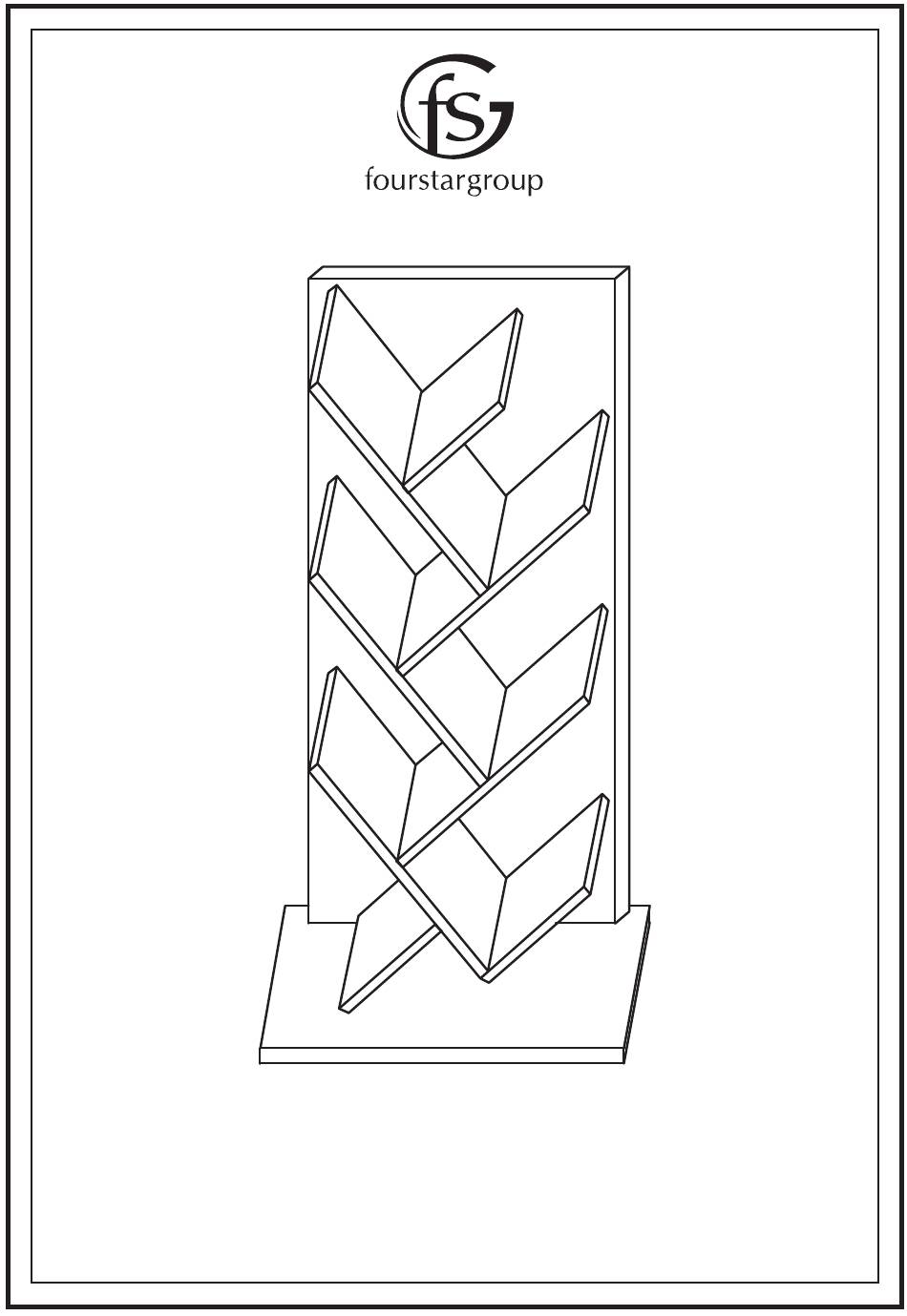

- Page 1 MODEL: 11210912 MEDIA ORGANIZER...
- Page 2 PARTS LIST AND HARDWARE HARDWARE LIST SCREW M4 x 32 mm 21 PCS PLASTIC DOWEL M5 x 20 mm 14 PCS WALL BRAKET 2 PCS WHITE GLUE 1 PC SCREW M3 x 9 mm 4 PCS WALL PLUG 2 PCS PARTS LIST 1 PC BACK PANEL...
- Page 3 BEFORE YOU BEGIN , PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1.1 INSTALL THE PLASTIC DOWEL (2) TO THE SHELF PANELS (C & D) USING THE GLUE (4), AS SHOWN. 1.2 INSTALL THE WALL BRACKET (METAL) (3) TO THE BACK PANEL (A) USING THE SCREWS (5), AS SHOWN. UNFINISHED SURFACE 3 WALL BRAKET (METAL) - 2PCS 5 SCREW - 4PCS...
- Page 5 STEP 2 ATTACH BOTTOM PANEL (B) TO THE BACK PANEL (A) USING THE SCREW (1), AS SHOWN. UNFINISHED SURFACE 1 SCREW - 3 PCS...
- Page 6 STEP 3 ATTACH THE SMALL SHELF (C), LEFT SHELF (D) AND RIGHT SHELF (E) USING THE GLUE (4), AS SHOWN. 4 WITH GLUE - 1PC...
- Page 7 STEP 4 ATTACH THE ASSEMBLED PARTS FROM STEP 3 TO THE ASSEMBLED PARTS FROM STEP 2 USING THE SCREWS (1), AS SHOWN. UNFINISHED SURFACE 1 SCREW - 16 PCS...
- Page 8 STEP 5 5.1 DRILL THE HOLES ON THE WALL AND INSERT THE WALL PLUG (6), INSTALL THE SCREW (1) WITH SCREW DRIVER. 5.2 HANG THE ORGANIZER ON THE WALL. 6 WALL PLUG - 2 PCS This unit is intended for use only with the products and maximum weights indicated.
