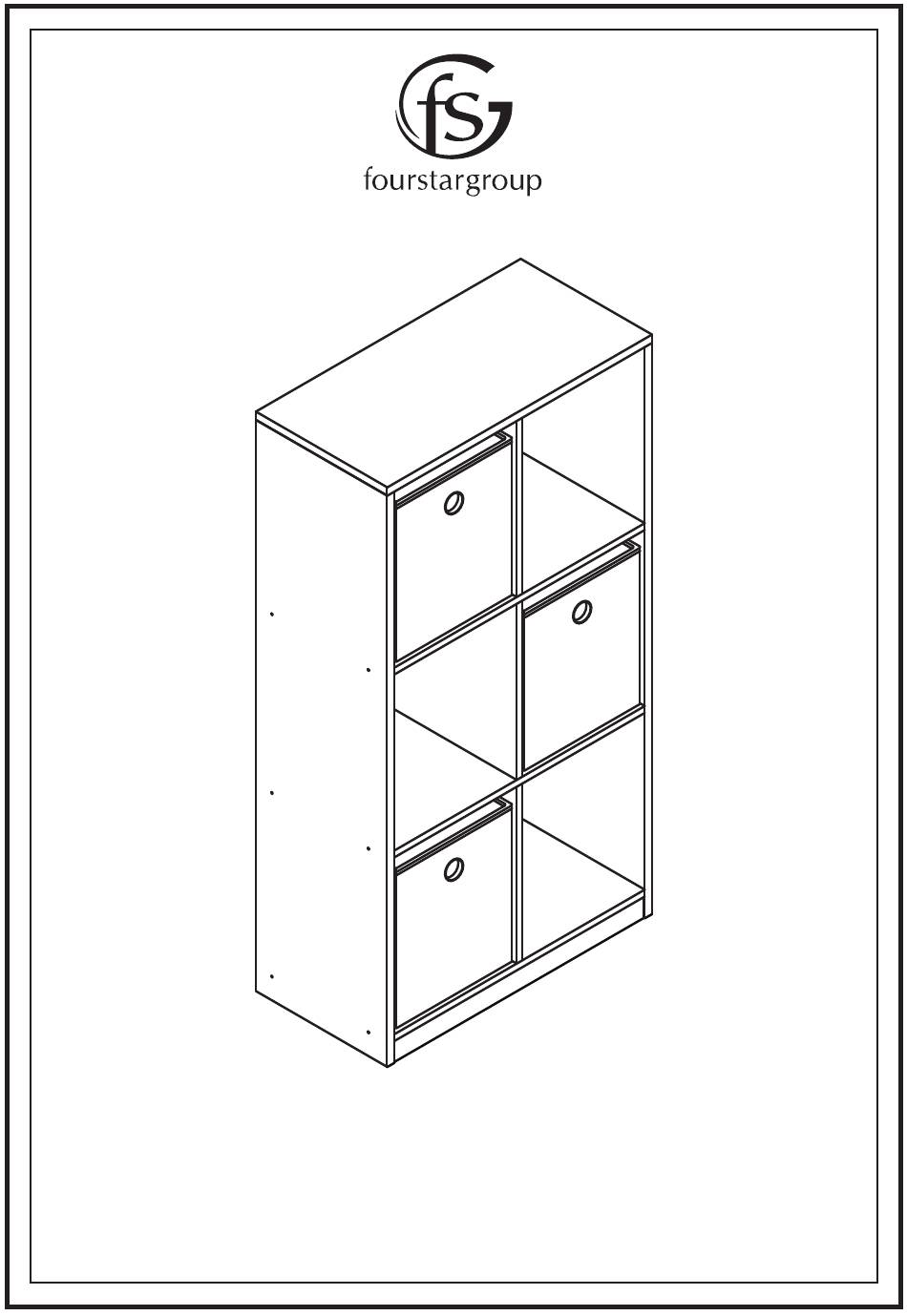

- Page 1 MODEL: 11210931 STORAGE ORGANIZER...
-
Page 2: Hardware List
PARTS LIST AND HARDWARE HARDWARE LIST 12 PCS SCREW M4 x 38mm (BLACK) SCREW M3 x 9mm 4 PCS 4 PCS WOODEN DOWEL M6 x 30mm 12 PCS PLASTIC DOWEL M5 x 20mm 2 PCS L-BRAKET 16 PCS POWER PIN 1 PC WHITE GLUE 3 PCS... - Page 3 BEFORE YOU BEGIN, PLEASE FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1.1 INSTALL THE PLASTIC DOWEL (4) TO THE CENTER PANEL (E) USING THE GLUE (7), AS SHOWN. 1.2 INSTALL THE WOODEN DOWEL (3) TO THE SIDE PANELS (B & C) USING THE GLUE (7), AS SHOWN. 1.3 INSTALL THE L-BRACKET (5) TO THE BOTTOM PANEL (F) AND BOTTOM CROSSBAR (I) USING THE SCREWS (2), AS SHOWN.
- Page 5 STEP 2 ATTACH THE CENTER PANELS (E) TO THE SHELF PANELS (D & G) USING THE GLUE (7), AS SHOWN. 7 WHITE GLUE - 1 PC...
- Page 6 STEP 3 ATTACH THE SIDE PANELS (B & C) AND THE BOTTOM PANEL (F) TO THE ASSEMBLED PARTS FROM STEP 2 USING THE SCREWS (1), AS SHOWN. 1 SCREW M4 x 38mm - 12 PCS...
- Page 7 STEP 4 ATTACH THE TOP PANEL (A) TO THE ASSEMBLED PARTS FROM STEP 3 USING THE GLUE (7), AS SHOWN.
- Page 8 STEP 5 ATTACH THE BACK PANELS (H) USING THE POWER PIN (6) AS SHOWN. 6 POWER PIN - 16 PCS...
- Page 9 STEP 6 INSERT THE BINS (8). 8 BIN - 3 PCS...
- Page 10 Shelf weight limit: 32 lbs. (14.5 kg) This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved.
