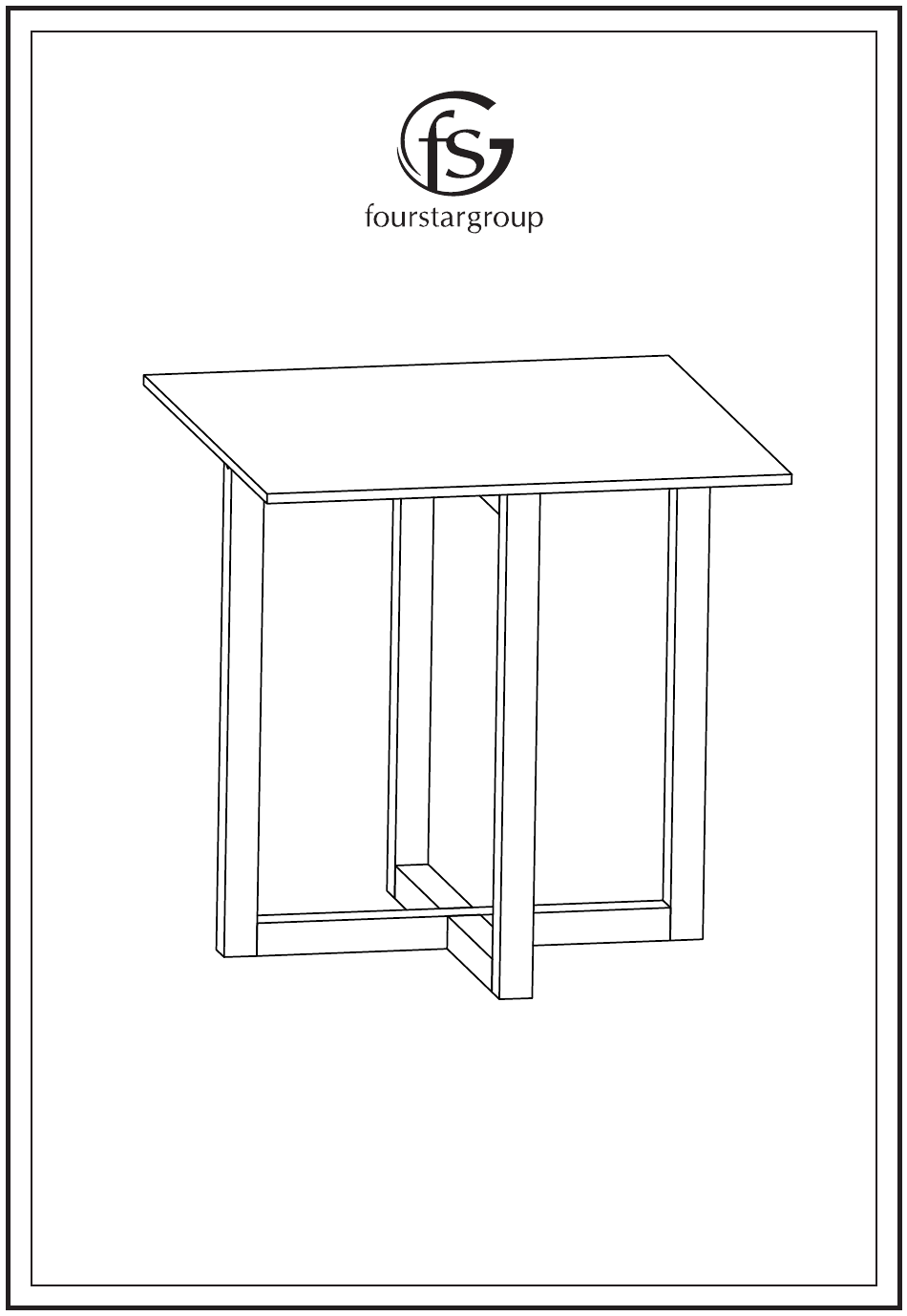

- Page 1 MODEL: 11225282 / MODELO: 11225282 SQUARE END TABLE MESITA CUADRADA...
- Page 2 PARTS LIST AND HARDWARE LISTA DE PARTES Y ACCESORIOS HARDWARE LIST LISTA DE ACCESORIOS TOP PANEL PANEL SUPERIOR 4PCS PATA 4PZS TOP CROSS BAR TRAVESAÑO SUPERIOR TOP CROSS BAR TRAVESAÑO SUPERIOR BOTTOM CROSS BAR 2PCS BARRA TRANSVERSAL 2PZS INFERIOR SCREW 12PCS TORNILLO 12PZS...
- Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE STEP 1 ATTACH TOP CROSS BAR (C) AND TOP CROSS BAR (D) TO TOP PANEL (A) USING SCREWS (F) AS SHOWN. PASO 1 COLOQUE LA BARRA TRANSVERSAL SUPERIOR (C) Y LA BARRA TRANSVERSAL SUPERIOR (D) AL PANEL SUPERIOR (A) CON LOS TORNILLOS (F) COMO SE MUESTRA.
- Page 4 STEP 3 REPEAT THE STEP 2 AS SHOWN. PASO 3 REPITA EL PASO 2 COMO SE MUESTRA. STEP 2 ATTACH FLOOR PROTECTOR LEG PADS (G) TO THE BOTTOM OF THE LEGS (B) AND ATTACH SCREW CAP COVERS (I) TO SIDE LEGS (B) TO COVER THE SCREW DRILLED HOLE AS SHOWN.
