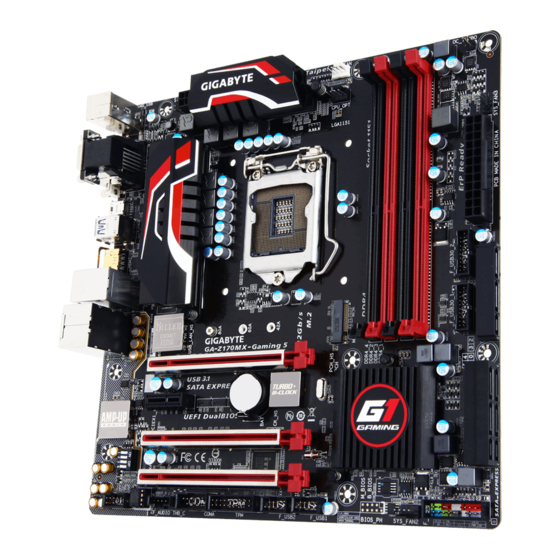

GA-Z170MX-Gaming 5
User's Manual
Rev. 1002
12ME-Z17MXG5-1002R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-Z170MX-Gaming 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigabyte GA-Z170MX-Gaming 5

  • Page 1 GA-Z170MX-Gaming 5 User's Manual Rev. 1002 12ME-Z17MXG5-1002R For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
  • Page 3: Table Of Contents

    Table of Contents GA-Z170MX-Gaming 5 Motherboard Layout ..............4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU and CPU Cooler ..............9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Configuration ......
  • Page 4: Ga-Z170Mx-Gaming 5 Motherboard Layout

    GA-Z170MX-Gaming 5 Motherboard Layout CPU_FAN ATX_12V_2X4 KB_MS_USB SYS_FAN1 CPU_OPT LGA1151 TYPEC Intel ® USB 3.1 R_USB30 Controller HDMI USB30_LAN Rivet Networks ™ Killer E2201 LAN AUDIO GA-Z170MX-Gaming 5 PCIEX16 PCIEX1_1 CODEC Intel Z170 ® PCIEX8 GAIN ® Super I/O PCIEX4 CLR_CMOS...
  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...
  • Page 6: Product Specifications

    Š Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Š Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Š Onboard Integrated Graphics Processor-Intel ® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz...
  • Page 7 Storage Interface Š Chipset: 1 x M.2 Socket 3 connector 3 x SATA Express connectors 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * R efer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors. Š Chipset: 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Page 8 Micro ATX Form Factor; 24.4cm x 24.4cm * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Please visit GIGABYTE's website Please visit the Support\Utility List for support lists of CPU, memory page on GIGABYTE's website to modules, SSDs, and M.2 devices. download the latest version of apps. - 8 -...
  • Page 9: Installing The Cpu And Cpu Cooler

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
  • Page 10: Installing An Expansion Card

    The four memory sockets are divided into two channels and each channel has two memory sockets as following: Channel A: DDR4_2, DDR4_4 Channel B: DDR4_1, DDR4_3 Dual Channel Memory Configurations Table DDR4_4 DDR4_2 DDR4_3 DDR4_1 2 Modules DS/SS DS/SS DS/SS DS/SS 4 Modules DS/SS DS/SS DS/SS DS/SS (SS=Single-Sided, DS=Double-Sided, "- -"=No Memory) Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed.
  • Page 11: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. You can connect a USB DAC to this port or use this port for USB devices. PS/2 Keyboard/Mouse Port Use this port to connect a PS/2 mouse or keyboard. D-Sub Port The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz (the actual resolutions supported depend on the monitor being used).
  • Page 12: Changing The Operational Amplifier

    The Mic in jack. If you want to install a Side Speaker, you need to retask either the Line in or Mic in jack to be Side Speaker out through the audio driver. Please visit GIGABYTE's website for more software information. • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
  • Page 13: Internal Connectors

    Internal Connectors 11 16 ATX_12V_2X4 SPDIF_O GAIN CPU_FAN F_USB30_1/F_USB30_2 SYS_FAN1/2/3 F_USB1/F_USB2 CPU_OPT SATA EXPRESS THB_C SATA3 0/1/2/3/4/5 COMA M2A_32G CLR_CMOS F_PANEL F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 14 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 15 5) CPU_OPT (Water Cooling CPU Fan Header) The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design.
  • Page 16 8) M2A_32G (M.2 Socket 3 Connector) The M.2 connectors support M.2 SATA SSDs and M.2 PCIe SSDs and support RAID configuration through Chipset. Please note that an M.2 PCIe SSD cannot be used to create a RAID set either with the Intel ® an M.2 SATA SSD or a SATA hard drive. To create a RAID array with an M.2 PCIe SSD, you must set up the configuration in UEFI BIOS mode. Refer to Chapter 3, "Configuring a RAID Set," for instructions on configuring a RAID array. M2A_32G Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Use a screw driver to unfasten the screw and nut from the motherboard. Locate the proper mounting hole for the M.2 SSD to be installed and then screw the nut first.
  • Page 17 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 18 11) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.
  • Page 19 LRESET SB3V SERIRQ LAD3 LAD2 VCC3 LAD1 SUSCLK 16) THB_C (Thunderbolt Add-in Card Connector) ™ This connector is for a GIGABYTE Thunderbolt ™ add-in card. Pin No. Definition GPIOA GPIOB Supports a Thunderbolt ™ add-in card. N_-SLP_S3 N_-S4_S5 - 19 -...
  • Page 20 17) COMA (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. Pin No. Definition Pin No. Definition NDSR- NDCD- NRTS- NSIN NSOUT NCTS-...
  • Page 21: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. • Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.
  • Page 22 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and CPU voltage, etc. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components.
  • Page 23 & CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU being installed. & CPU Frequency Displays the current operating CPU frequency. ` Advanced CPU Core Settings & CPU Clock Ratio, CPU Frequency The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu.
  • Page 24 & C3 State Support (Note 1) Allows you to determine whether to let the CPU enter C3 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. The C3 state is a more enhanced power-saving state than C1.
  • Page 25 & Memory Boot Mode (Note) Provides memory detection and training methods. Auto Lets the BIOS automatically configure this setting. (Default) S kip memory detection and training in some specific criteria for faster memory Enable Fast Boot boot. Disable Fast Boot Detect and train memory at every single boot. & Memory Enhancement Settings Provides several memory performance enhancement settings: Normal (basic performance), Relax OC, Enhanced Stability, and Enhanced Performance. (Default: Enhanced Stability) &...
  • Page 26 ` CPU Core Voltage Control This section provides CPU voltage control options. ` Chipset Voltage Control This section provides Chipset voltage control options. ` DRAM Voltage Control This section provides memory voltage control options. ` Internal VR Control This section provides VR voltage control options. ` PC Health Status &...
  • Page 27 Silent Allows the fan to run at slow speeds. Manual Allows you to control the fan speed under the Fan Speed Percentage item. Full Speed Allows the fan to run at full speeds. & Fan Speed Percentage Allows you to control the fan speed. This item is configurable only when CPU OPT Fan Speed Control is set to Manual.
  • Page 28: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...
  • Page 29: Bios Features

    A password is required for booting the system and for entering the BIOS Setup program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process.
  • Page 30 & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 31 & Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disabled Disables option ROM. Enables legacy option ROM only. Legacy Only UEFI Only Enables UEFI option ROM only. (Default) This item is configurable only when CSM Support is set to Enabled. & Network Stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server.
  • Page 32: Peripherals

    Peripherals & Intel Platform Trust Technology (PTT) ® Enables or disables Intel PTT Technology. (Default: Disabled) & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the first display. Sets the graphics card on the PCIEX16 slot as the first display. (Default) PCIe 1 Slot Sets the graphics card on the PCIEX8 slot as the first display. PCIe 2 Slot Sets the graphics card on the PCIEX4 slot as the first display. PCIe 3 Slot & OnBoard LAN Controller Enables or disables the onboard LAN function. (Default: Enabled) If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to Disabled.
  • Page 33 & USB Storage Devices Displays a list of connected USB mass storage devices. This item appears only when a USB storage device is installed. ` OffBoard SATA Controller Configuration Displays information on your M.2 PCIe SSD if installed. ` Trusted Computing 2.0 This sub-menu appears only when Intel Platform Trust Technology is set to Enabled. &...
  • Page 34: Chipset

    Chipset & VT-d (Note) ® Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Disabled) & Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) & DVMT Pre-Allocated Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...
  • Page 35: Power Management

    Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On The system is turned on upon the return of the AC power. Memory The system returns to its last known awake state upon the return of the AC power.
  • Page 36 & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode.
  • Page 37: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...
  • Page 38: Chapter 3 Appendix

    Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum ≥2 ≥3 ≥4 Number of Hard Drives Array Capacity Number of hard Size of the smallest (Number of hard (Number of hard drives * Size of the drive drives -1) * Size of drives/2) * Size of the...
  • Page 39 3. On the Intel(R) Rapid Storage Technology menu, press <Enter> on Create RAID Volume to enter the Create RAID Volume screen. Enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level. RAID levels supported include RAID 0, RAID 1, Recovery, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed). Next, use the down arrow key to move to Select Disks. 4.
  • Page 40: Drivers Installation

    • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe." (Or go to My Computer, double-click the optical drive and execute the Run.exe program.) "Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. Please visit GIGABYTE's website for details on configuring a RAID array. Please visit GIGABYTE's website for more software information. Please visit GIGABYTE's website for details on configuring the audio software. - 40 -...
  • Page 41: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 42 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 43 - 43 -...
  • Page 44: Contact Us

    Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. • GIGABYTE eSupport To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com...
