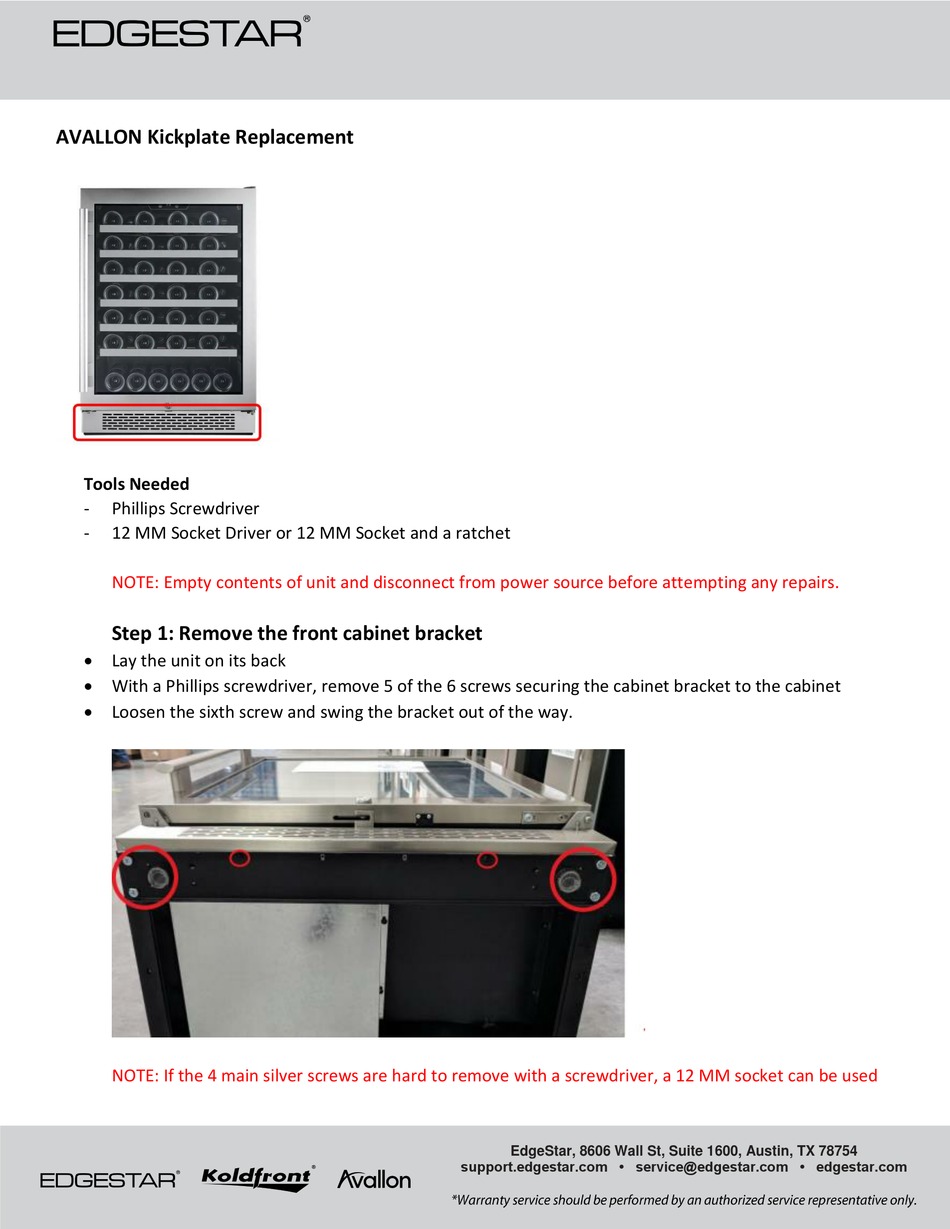

AVALLON Kickplate Replacement

Tools Needed

Phillips Screwdriver

12 MM Socket Driver or 12 MM Socket and a ratchet

NOTE: Empty contents of unit and disconnect from power source before attempting any repairs.

 Lay the unit on its back

 With a Phillips screwdriver, remove 5 of the 6 screws securing the cabinet bracket to the cabinet

 Loosen the sixth screw and swing the bracket out of the way.

NOTE: If the 4 main silver screws are hard to remove with a screwdriver, a 12 MM socket can be used
