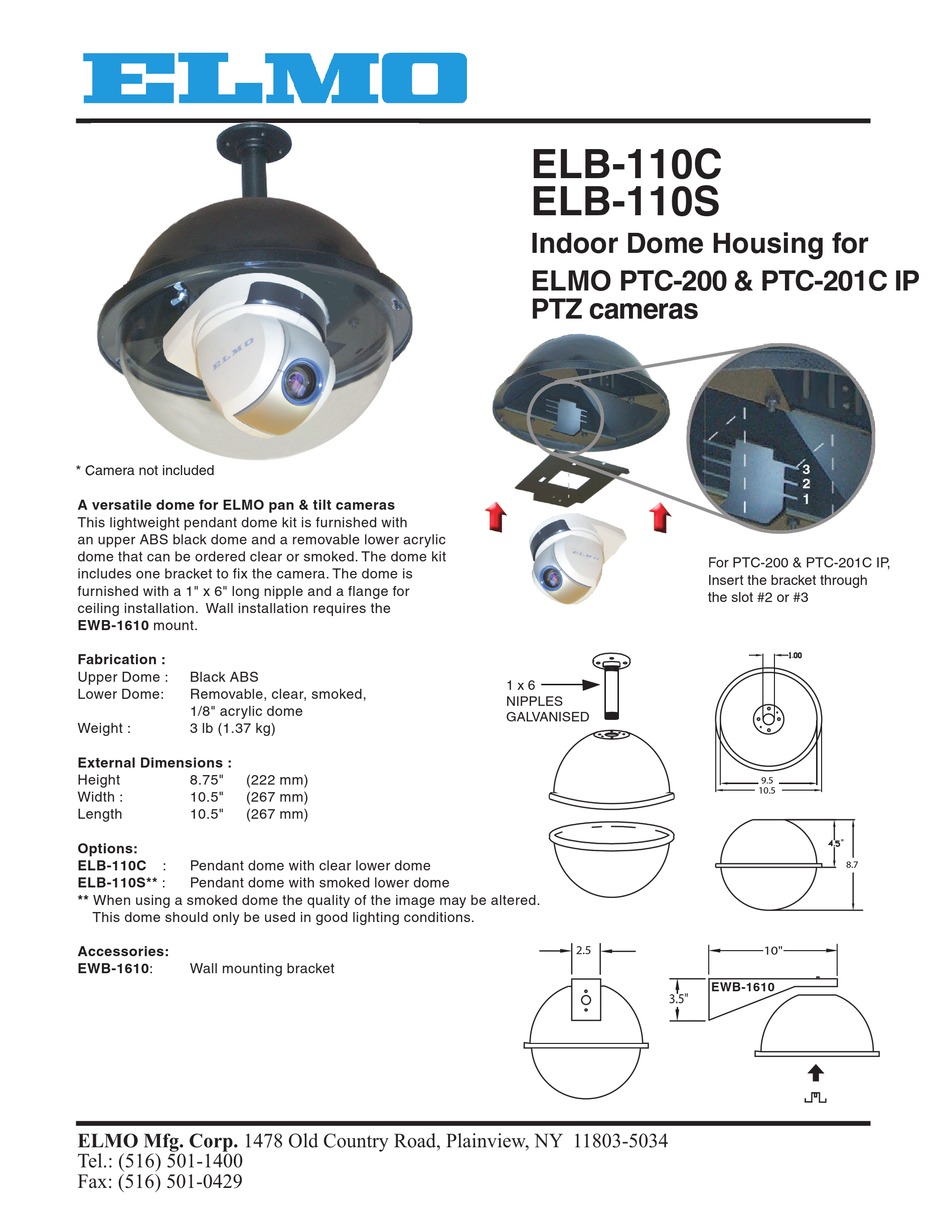

Elmo ELB-110C Specifications

* Camera not included Camera not included
A versatile dome for ELMO pan & tilt cameras
This lightweight pendant dome kit is furnished with
an upper ABS black dome and a removable lower acrylic
dome that can be ordered clear or smoked. The dome kit
includes one bracket to fix the camera. The dome is
furnished with a 1" x 6" long nipple and a flange for
ceiling installation. Wall installation requires the
EWB-1610 mount.
Fabrication :
Upper Dome : Black ABS
Lower Dome: Removable, clear, smoked,
1/8" acrylic dome
Weight : 3 lb (1.37 kg)
External Dimensions :
Height 8.75" (222 mm)
Width : 10.5" (267 mm)
Length 10.5" (267 mm)
Options:
ELB-110C : Pendant dome with clear lower dome
ELB-110S** : Pendant dome with smoked lower dome
** When using a smoked dome the quality of the image may be altered.
This dome should only be used in good lighting conditions.
Accessories:
EWB-1610: Wall mounting bracket
ELMO Mfg. Corp. 1478 Old Country Road, Plainview, NY 11803-5034
Tel.: (516) 501-1400
Fax: (516) 501-0429
ELB-110C
ELB-110S
Indoor Dome Housing for
ELMO PTC-200 & PTC-201C IP
PTZ cameras
1 x 6
NIPPLES
GALVANISED
2.5
3.5"
3
2
1
For PTC 200 & PTC 201C IP For PTC-200 & PTC-201C IP,
Insert the bracket through
the slot #2 or #3
9.5
10.5
"
8.7
10"
EWB-1610
