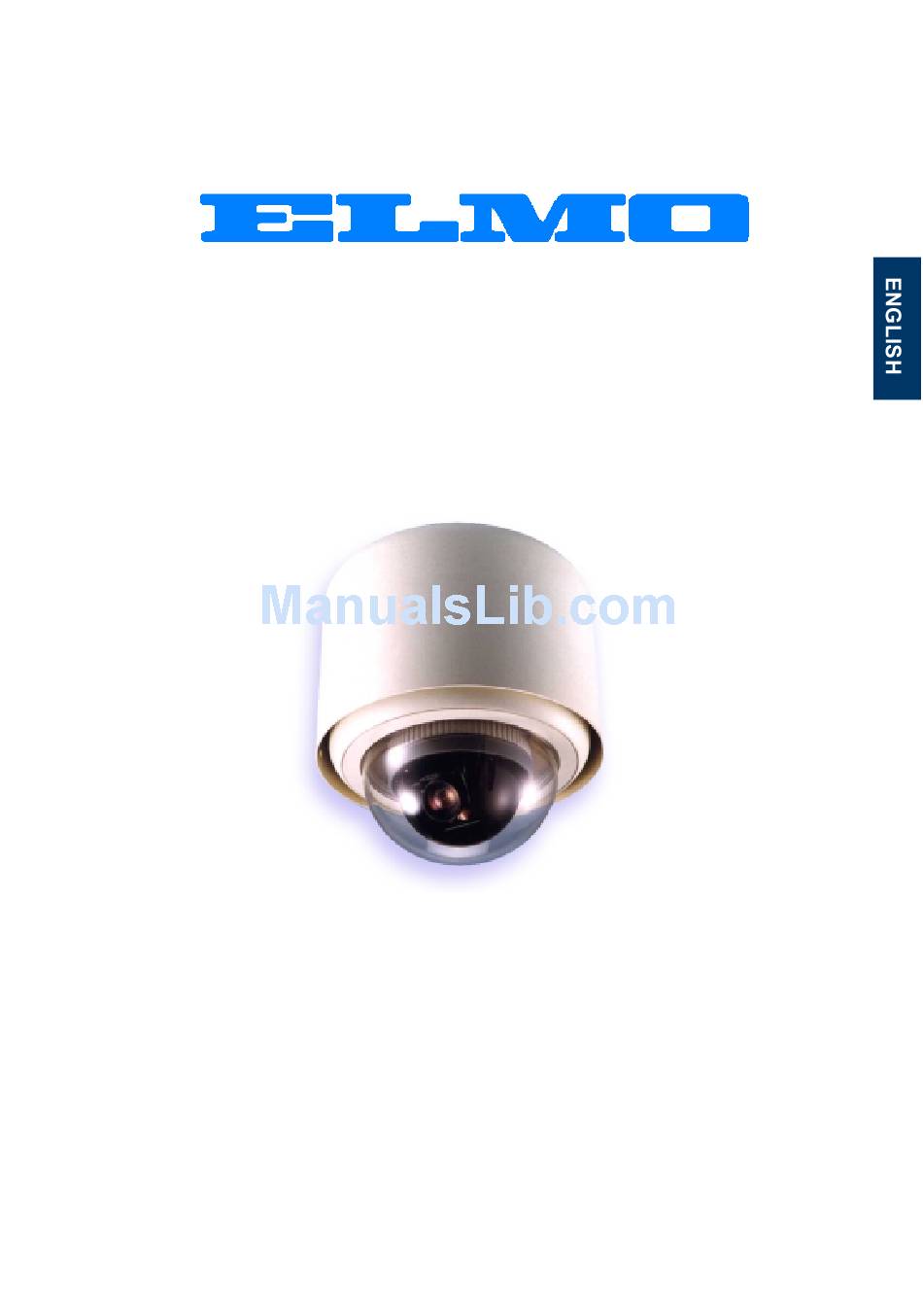

- Page 1 User ’ s Manual INDOOR / OUTDOOR HOUSING STANDARD Version 1.0 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Table Of Contents
PREFACE ... 2 FEATURES... 2 PRECAUTIONS... 2 CONSTRUCTION ... 3 INSTALLATION... 4 INSTALLATION FOR INDOOR ENVIRONMENT... 4 INSTALLATION FOR OUTDOOR ENVIRONMENT... 5 PCB CONNECTION ... 5 PCB CONNECTION ... 6 TERMINAL BLOCK DEFINITION ... 6 APPENDIX ... 7 ACCESSORIES... 7 CONTENTS... -
Page 3: Preface
The housing is designed for dome camera installation. There are two kinds of installation types for this product. One is indoor environment use, the other is outdoor environment use. It supports AC24V and DC12V power input. Fan and heater built in for temperature control. -
Page 4: Construction
CONSTRUCTION 1. Pendant 2. Sun Shield 3. Main Housing 4. Dome Camera 5. Dome Cover... -
Page 5: Installation
INSTALLATION INSTALLATION FOR INDOOR ENVIRONMENT 1. Pendant 2. Main Housing 3. PCB Frame 4. PCB 5. Heater Frame 6. Dome Camera 7. Dome Cover... -
Page 6: Installation For Outdoor Environment
INSTALLATION FOR OUTDOOR ENVIRONMENT 1. Pendant 2. Sun Shield 3. Main Housing 4. PCB Frame 5. PCB 6. Heater Frame 7. Dome Camera 8. Dome Cover... -
Page 7: Pcb Connection
PCB CONNECTION TERMINAL BLOCK DEFINITION Pin Name V_IN DC12V output : +12V ( For Keyboard ; Max.400mA ) DC12V output Ground and Alarm Ground. Remark : 1. Half-duplex mode is standard. 2. D+,D- are used to transmit and received commands. You need only two wires to transmit and receive commands under half-duplex mode. -
Page 11: Appendix
APPENDIX ACCESSORIES Pendent ………………….……………………….…… 1 pcs. Operation Manual …………………………………… 1 pcs. - Page 12 1478 Old Country Road Plainview, NY 11803 www.elmousa.com...
