DOREL ASIA

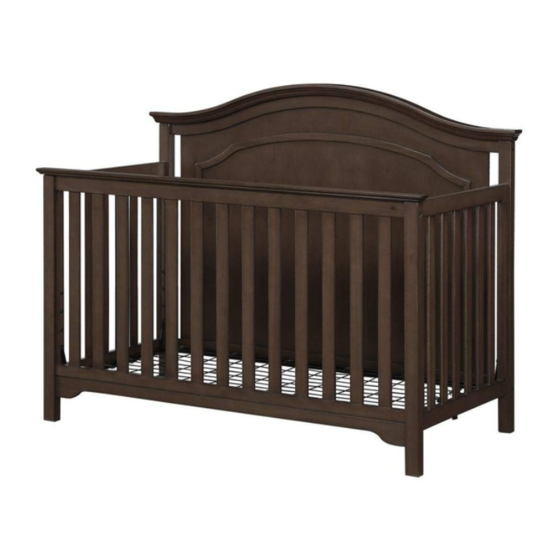

Hayworth Crib
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of
DA7249 (Weathered Walnut)
(TAKEN FROM CARTON)
_____________________________________
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
Model No:
DA7249W (White)
UPC CODE:
0-65857-16963-8
0-65857-16965-2
DPCI#:
030-08-2599
030-08-2602
Lot number:
Date of purchase:
charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSIST
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRO
E-MAIL:DAS@DOREL
Advertisement
Table of Contents
Related Manuals for Baby Relax DA7249
Summary of Contents for Baby Relax DA7249

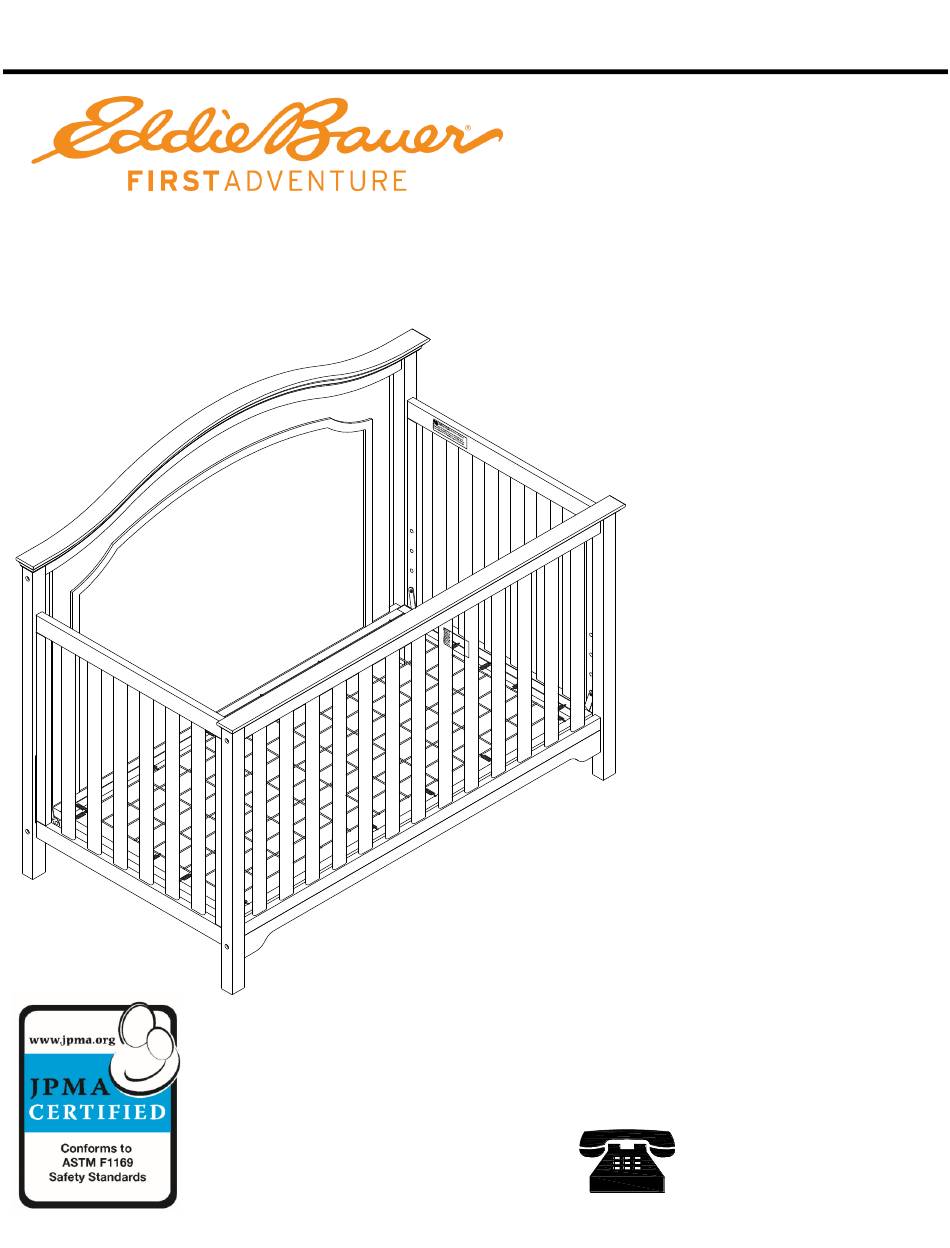

- Page 1 DOREL ASIA Model No: DA7249 (Weathered Walnut) DA7249W (White) Hayworth Crib UPC CODE: 0-65857-16963-8 0-65857-16965-2 DPCI#: 030-08-2599 030-08-2602 Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service department.
