Nimbus V

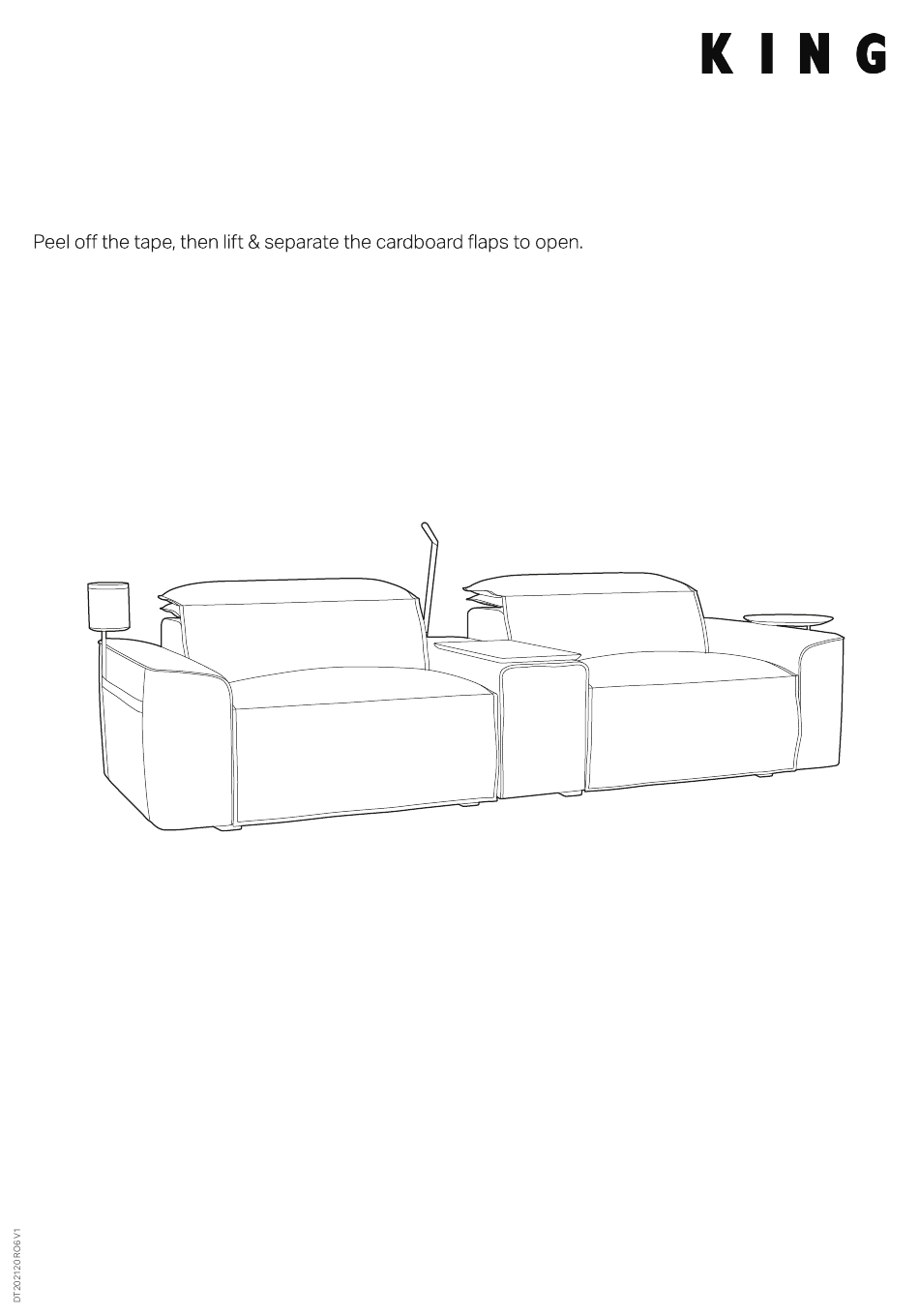

Product Information and Assembly
Two People Are Required For Safe Assembly.
Opening Boxes:
DO NOT use a knife to open the King boxes as you may damage your furniture.
Assemble your furniture by following the instructions below.
KING CUSTOMER CARE: kingliving.com/support

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nimbus V and is the answer not in the manual?

Questions and answers

Related Manuals for KING Nimbus V

Summary of Contents for KING Nimbus V

  • Page 1 Product Information and Assembly Two People Are Required For Safe Assembly. Opening Boxes: DO NOT use a knife to open the King boxes as you may damage your furniture. Assemble your furniture by following the instructions below. KING CUSTOMER CARE: kingliving.com/support...

  • Page 2: Table Of Contents

    If the recliner does not close, there may be an obstruction interfering with the safety section. REMOVE OBSTRUCTION BEFORE FURTHER OPERATION See the FAQ section on page 7 for more information about the obstruction detection safety feature. KING CUSTOMER CARE: kingliving.com/support KING CUSTOMER CARE: kingliving.com/support...

  • Page 3: Assembly

    Assembly MEDIA CONSOLE KING CUSTOMER CARE: kingliving.com/support...

  • Page 4: Accessories And Storage

    Accessories and Storage INSTALLING ACCESSORIES Refer to individual accessory package for assembly instructions. STORAGE POCKET With dual zipper. INSTALLING MEDIA CONSOLE SUBWOOFER KING CUSTOMER CARE: kingliving.com/support...

  • Page 5: Connecting To Power

    Connecting to Power Do not connect Nimbus V to power until arms are assembled and modules connected. Every recliner must be connected to its own power supply. KING CUSTOMER CARE: kingliving.com/support...

  • Page 6: Operation

    Operation CLOSE OPEN AUTOMATIC CLOSE Automatic Close: Swipe backwards across all buttons. Important: This should always be completed everytime the power supply is connected or interrupted. KING CUSTOMER CARE: kingliving.com/support...

  • Page 7: Memory Positions

    Press and hold buttons 1 and 3 for 8 seconds. 8 sec. Memory Position 2: Press and hold buttons 2 and 4 for 8 seconds. 8 sec. RECALL MEMORY POSITIONS Memory Position 1: Memory Position 2: Swipe forward once. Swipe forward twice. KING CUSTOMER CARE: kingliving.com/support...

  • Page 8: Frequently Asked Questions (Faq)

    2. Re-connect power cable and turn power ON at the power socket. 3. Check that the light on the power supply is illuminated. 4. If the recliner module still doesn’t respond when a button is touched, contact King Customer Care.
  • Page 9 2. Check that the legs of the sofa are fully inserted into the Nimbus Joiner. 3. Firmly push the module seat downwards if any legs are not fully inserted into the joiner. 4. If the recliner module is still sitting higher or lower than another module contact King Customer Care.
  • Page 10 1. Touch and hold buttons 3 and 4 for 15 seconds. NOTE: It is important to touch the buttons for the full 15 seconds. 2. If your memory positions still cannot be set or recalled, contact King Customer Care. KING CUSTOMER CARE: kingliving.com/support...
  • Page 11 Your recliner modules may not be correctly joined together. Follow these steps. 1. Turn power OFF at the power socket for each recliner module. 2. Refer to the assembly section of this booklet for instructions on how to correctly Join your King Cloud modules.

  • Page 12: Warning

    • Always disconnect the electrical cord supply and call King-Care. attached to the unit from power before • Do not attempt to disassemble or service cleaning or moving the unit or when not in the internal mechanism, motor or other use for an extended period.
