Maverick Industries ET-632 REDI CHEK Instruction Manual

INSTRUCTION MANUAL MODEL ET-632 REDI CHEK
BARBECUE THERMOMETER
Introduction
Congratulations on your purchase of the ET-632 REDI CHEK BARBECUE Thermometer, a
programmable radio frequency food thermometer. You will now be able to remotely monitor
the temperature of grilling
food and the temperature inside your grill from anywhere in your home.

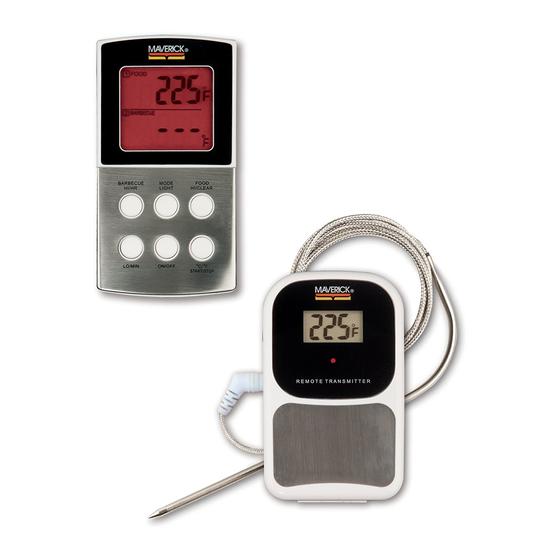

Components
1. 1– Receiver unit
2. 1– Transmitter unit
3. 1– Detachable stainless steel FOOD probe
4. 1– Detachable stainless steel BARBECUE probe with clip
5. 4– AAA batteries.

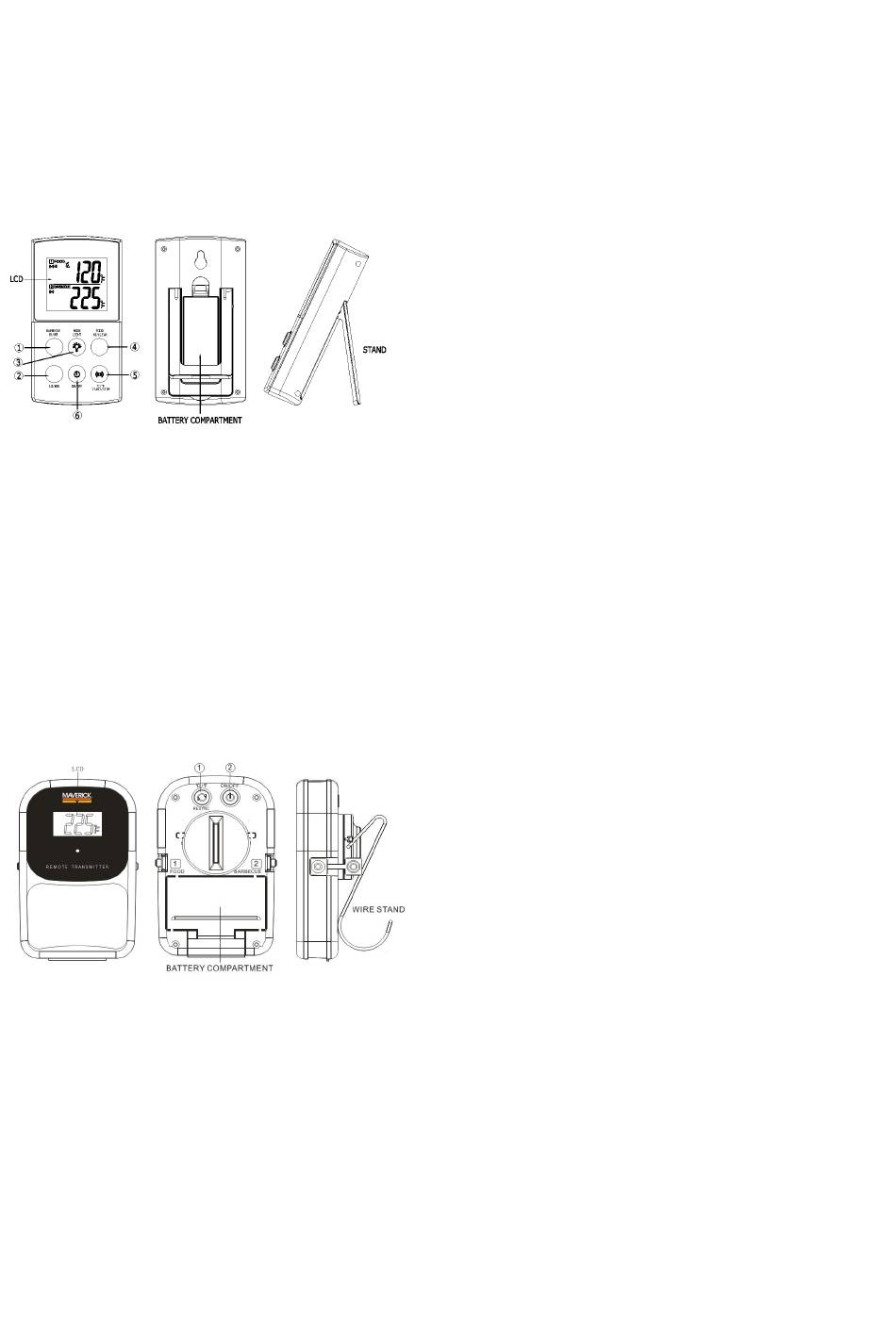

Receiver Features
● LCD (Liquid Crystal Display) – Displays all icons, temperature and time.
● BATTERY COMPARTMENT – Holds 2 AAA batteries.
● STAND – Swings out and allow you to stand the receiver on tabletop.
Buttons
1. HI/HR – In THERMOMETER MODE, press and hold until the digits flash; press to
increase the maximum BARBECUE temperature. Press and hold for 2 seconds to increase
10 degrees per second. In TIMER MODE, when the TIMER is stopped, press to set the
hour. Press and hold for 2 seconds to increase 10 hours per second.
2. LO/MIN – In THERMOMETER MODE, press and hold until the digits flash, press to
increase the minimum BARBECUE temperature. Press and hold for 2 seconds to increase
10 degrees per second. In TIMER MODE, when the TIMER is stopped, press to set the
minute. Press and hold for 2 seconds to increase 10 minutes per second.
3. LIGHT/MODE – Press to turn on the LCD back light for 5 seconds. Press and hold for 2
seconds to select THERMOMETER MODE or TIMER MODE.
4. HI/CLEAR – In THERMOMETER MODE, press and hold until the digits flash, press to
increase the maximum FOOD temperature. Press and hold for 2 seconds to increase 10
degrees per second. In TIMER MODE, when the timer is stopped, press to clear the timer
setting back to 0:00.
5. ALERT, ºC /ºF, START/STOP –Press and hold for 2 seconds to switch between ºC and
ºF display. In THERMOMETER MODE, press to turn ON/OFF the alarm. In TIMER MODE,
press to start or stop the timer countdown or count up.
6. Power – Press to turn ON/OFF the receiver.
Transmitter Features
● LCD (Liquid Crystal Display) – displays temperature of both FOOD and BARBECUE. It
will
automatically switch between FOOD and BARBECUE displays.
(Note: Press the re-sync button
to switch the display between ºC and ºF.)
● WIRE STAND – Allows you to stand the receiver on tabletop or it can be reversed and
used as a hanger.
● BATTERY COMPARTMENT – holds 2 AAA batteries.
●1 FOOD – Plug-in for stainless steel FOOD probe.
●2 BARBECUE –Plug-in for stainless steel BARBECUE probe
Buttons
1. Re-sync –Transmit manually, terminates the auto registration process. Press and hold
for 2 seconds to register the radio frequency with the receiver. Press to select the
temperature unit between ºC and ºF.
2. Power"ON/OFF"– Press and hold for 2 seconds to turns ON/OFF the transmitter.
Installing batteries
Open the battery compartment of the receiver and insert two "AAA" batteries with correct
polarity. Open the battery compartment of the by removing the two small screws and insert
two "AAA" batteries with correct polarity.
Registering Receiver & Transmitter
The Barbecue Thermometer needs the receiver to register and lock in the radio frequency
signal from the transmitter when batteries are installed. Proceed as follows to register.
1. Plug the stainless steel probe sensors into the corresponding plug in of the transmitter.
Note: The FOOD probe is 6 inches long with pointed end while the BARBECUE probe
is 3 inches long with a grill rack clip.
2. Turn on the receiver by pressing the power button 2 seconds.
3. Turn on the transmitter by pressing the power button 2 seconds, found on the back of the
transmitter. This needs to be done within 120 seconds of turning on the receiver in order for
the receiver to receive the Registration Code from the transmitter. If it doesn't beep within
5-10 seconds and the "---" shown on LCD was flashing or is solid, press the power button 2
seconds to turn OFF the Transmitter and then turn back ON. Pressing and holding the
RESYNC button for 2 seconds will get the same result as turning the transmitter OFF and
then ON.
4. Registration is completed when the unit beeps and the probe temperatures will appear
on LCD.
Loss link alert
If the receiver is taken out of range or there is abnormal external interference or after
shutting OFF the transmitter, the receiver may not be able to receive the transmission from
the transmitter. If this happens over 4 minutes, the unit will alert you by beeping once for
every 4 seconds to tell you to re-sync the signal. Pressing any button on Receiver will stop
the Loss Link beep.
To regain transmission signal, move the receiver close to the transmitter, the link should be
automatically restored and the temperatures should appear on the receiver display.
THERMOMETER MODE
In thermometer mode, the LCD will show a 1 FOOD icon in the upper part of the display and
a BARBECUE icon in the lower part of the display. You can follow processes below to gain
your desired settings.
Setting HI (Maximum) FOOD Temperature
1. Press the HI/ CLEAR button to display the maximum FOOD temperature, which will only
be displayed for 5 seconds. The FOOD temperature range is 32 ºF - 572 ºF and the default
setting is 176 ºF.
2. Press and hold the HI/ CLEAR button until the digits flash.
3. Press the HI/ CLEAR button to set your desired temperature. It will increase one with
each press. Press and hold the HI/ CLEAR button to fast increase.
4. Press the LIGHT/MODE button to confirm the setting.
Note: Press HI/CLEAR to read your set maximum FOOD temperature.
To destroy harmful bacteria like Salmonella and E Coli the USDA recommends the
following minimum internal temperatures:
(Beef, Veal, Lamb Steaks & Roasts and Fish) to be 145 ºF (Egg
Dishes, Pork and Ground Beef Veal & Lamb) to be 160 ºF
(Turkey, Chicken & Duck Whole, Pieces & Ground) to be 165 ºF
Setting HI (Maximum) BARBECUE Temperature
1. Press the HI/HR button to display the maximum BARBECUE temperature, which will only
be displayed for 5 seconds. The maximum BARBECUE temperature range is 140 ºF – 572
ºF and the default setting is 176 ºF.
Note: The unit will not allow you to set the maximum BARBECUE temperature below
the minimum BARBECUE temperature.
2. Press and hold the HI/HR button until the digits flash.
3. Press the HI/HR button to set your desired temperature. It will increase one with each
press. Press and hold the HI/ CLEAR button to fast increase.
4. Press the LIGHT/ MODE button to confirm the setting.
Note: Press the HI/HR button to read your set maximum BARBECUE temperature.
Setting LO (Minimum) BARBECUE Temperature
1. Press the LO/MIN button to display the minimum BARBECUE temperature, which will
only be displayed for 5 seconds. The minimum BARBECUE temperature range is 32 ºF –
554 ºF and the default setting is 50 ºF.
Note: The unit will not allow you to set the minimum BARBECUE temperature above
the maximum BARBECUE temperature.
2. Press and hold the LO/MIN button until the digits flash.
3. Press the LO/MIN button to set your desired temperature. It will increase one with each
press. Press and hold the LO/MIN button to fast increase.
4. Press the LIGHT/MODE button to confirm the setting.
Note: Press the LO/MIN button to read your set minimum BARBECUE temperature.
Activating the temperature alarm
You can press the ALERT, ºC /ºF, START/STOP button to activate the temperature alarm
for BARBECUE and FOOD. The alarm icons will appear beneath theFOOD and
BARBECUE icons.
The receiver will beep with the alarm icon and probe temperature flashing if:
a) The actual FOOD temperature has exceeded your set maximum FOOD temperature.
( Beep twice in every second)
b) The actual BARBECUE temperature has exceeded your set maximum BARBECUE
temperature. (Beep once in every second)
