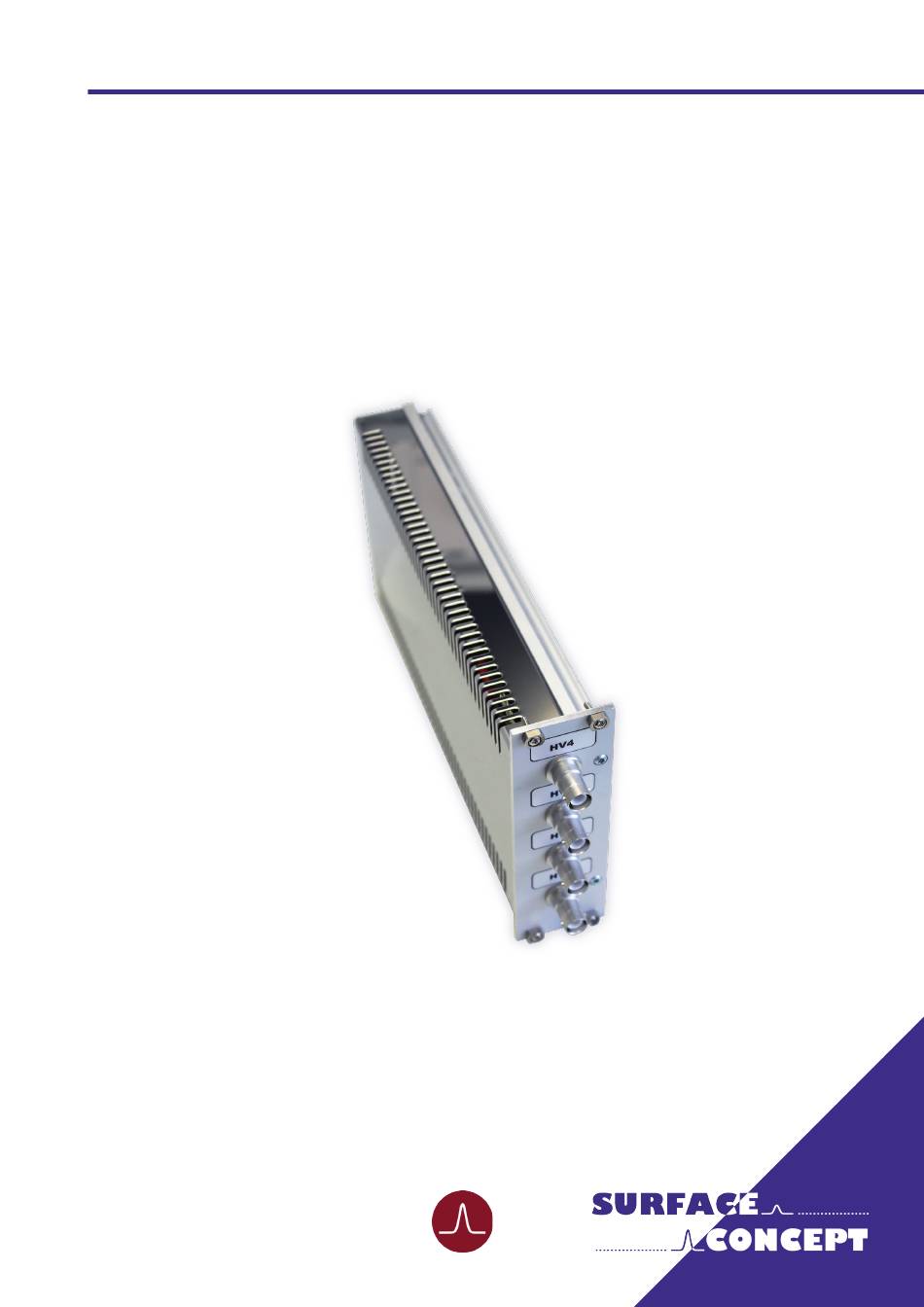

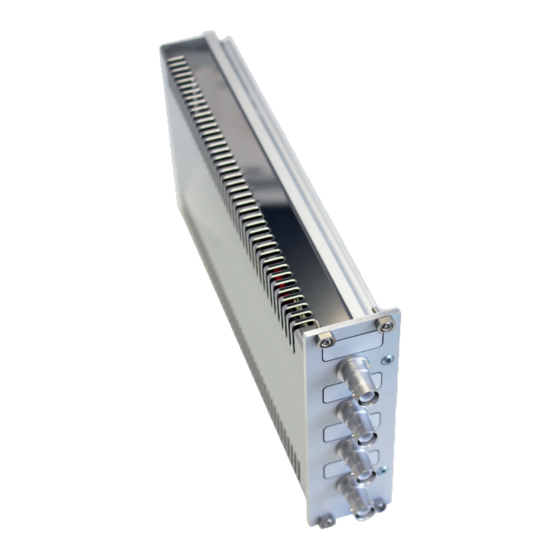

- Page 1 19“ HVPS-HC Module 2 Channel (Release R019) Manual...
- Page 2 User Manual for the 19” HVPS-HC Module 2 Channel phone: +49 6131 62716 0 Release: R019 fax: +49 6131 62716 29 Manual Version 2.0 email: info@surface-concept.de web: www.surface-concept.de Printed on 2020-07-17 19” HVPS-HC Module R019 Manual | Surface Concept GmbH...
-
Page 3: Table Of Contents
4 Device Layout & Operation ....................9 4.1 Device Layout ........................9 4.2 General Device Operation ................... 10 4.3 Schematic Layout of the 19” HVPS-HC Module R019 ........11 5 List of Figure ........................... 13 19” HVPS-HC Module R019 Manual | Surface Concept GmbH... - Page 4 19” HVPS-HC Module R019 Manual | Surface Concept GmbH...
-
Page 5: Introduction
2.1 General Information This manual is intended to assist users in the installation, operation and maintenance of Release Version 019 of the 19” HVPS-HC Module. It is divided into 5 chapters. 2.2 Safety Instructions Please read this manual carefully before performing any electrical or electronic operations and strictly follow the safety rules given within this manual. -
Page 6: General Overview
Surface Concept 19” Basic Unit, a modular supply system. The 19” HVPS-HC Module R019 provides two separate high voltages with a fixed polarity. There is a 2-fold fan-out for each HV channel to provide the output voltage to a second SHV connector for each channel. -
Page 7: Introduction
3.1 Initial Inspection Visual inspection of the system is required to ensure that no damage has occurred during shipping. If there are any signs of damage, please contact SURFACE CONCEPT immediately. Please check the delivery according to the packing list (see Table 1) for completeness. - Page 8 • Install the 19” HVPS-HC Module R019 into a free slot of the 19” Basic Unit (if not already installed). • Use SHV cables to connect to your application. Finish the complete cabling of the 19” HVPS-HC Module R019 before switching on the 19”...
-
Page 9: Device Layout & Operation
Manual 19“ HVPS-HC Module 4 Device Layout & Operation 4.1 Device Layout The layout of the 19” HVPS-HC Module R019 is given below. 1. 2xSHV connector (a,b) with integrated fan-out for output of operation voltage for the first HV channel. -
Page 10: General Device Operation
After switching on the 19” Basic Unit, the display shows the “Surface Concept” animated logo, while the device is scanning for the 19” HVPS-HC Module R019 and its specific settings. This can take up to several seconds. If the 19” Basic Unit is ready for operation, it switches into the standby mode and shows an empty... -
Page 11: Schematic Layout Of The 19" Hvps-Hc Module R019
4.3 Schematic Layout of the 19” HVPS-HC Module R019 Figure 6 shows the schematic layout of the 19” HVPS-HC Module R019 and especially the layout of the HV outputs. An internal controller measures the output voltage and regulates it to the nominal value entered by the user or set as default value within the device. - Page 12 19” HVPS-HC Module R019 Manual | Surface Concept GmbH...
-
Page 13: List Of Figure
Figure 5: Operation mode – voltage adjustment........................... 10 Figure 6: Schematic layout of the 19“ HVPS-HC Module R019 exemplary in the connection layout with a positive HV polarity for HV channel 1 and a negative HV polarity for HV channel 2................11... - Page 14 This declaration does not represent a commitment to features or capabilities of the instrument. The safety notes and regulations given in the product related documentation must be observed at all times. 19” HVPS-HC Module R019 Manual | Surface Concept GmbH...
