E-Broh QUATTRO LETE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANE BR OHQ0 1 E N
U S E R
M A N U AL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUATTRO LETE and is the answer not in the manual?

Questions and answers

Related Manuals for E-Broh QUATTRO LETE

Summary of Contents for E-Broh QUATTRO LETE

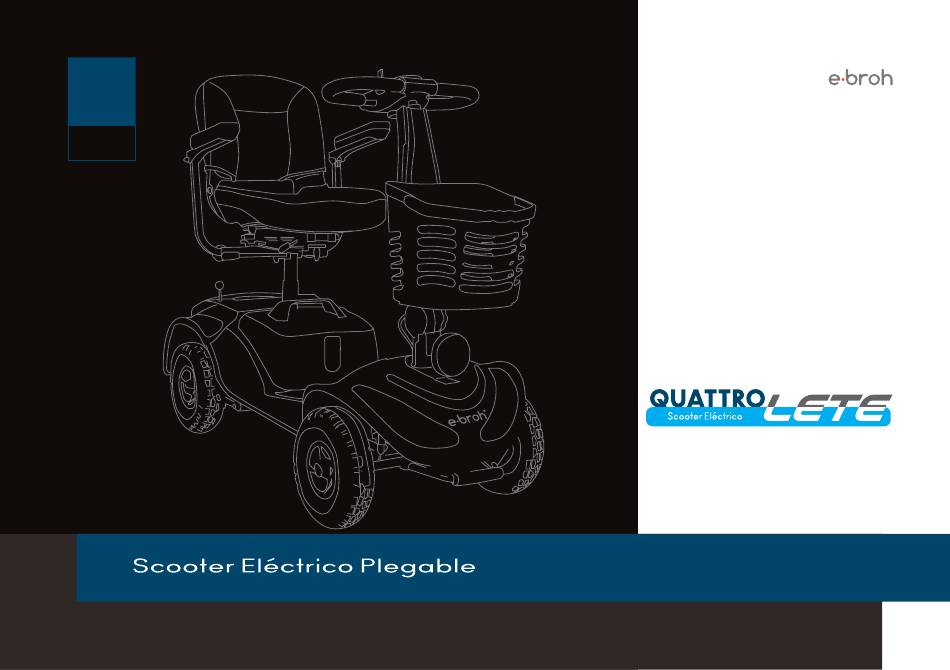

  • Page 1 MANE BR OHQ0 1 E N U S E R M A N U AL...
  • Page 2 Thank you for buying your Electric Scooter. In order to keep your scooter in working condition, before use please read carefully these instructions. The scooter has an attractive and stylized design. All our electric scooters have a reliable and safe structure. They stand out for their easy handling and are equipped with a premium engine.

  • Page 3: Table Of Contents

    TA BL E O F CO NT E NT S Warnings to the user Precautions Safety tips Safety symbols Component description Warranty policy Operating and running instructions Vehicle modifications + SERIES Nº Assembly Technical information Cleaning and care Vehicle authorisation Frequently asked questions and troubleshooting Warranty card Maintenance...

  • Page 4: Warnings To The User

    WA R NI NG S TO T HE U S E R 1. Please read this manual carefully before using the vehicle for correct use. 2. Please carefully check that the components are listed in the product manual before using your vehicle for safety reasons. If any components are missing or damaged, contact your supplier.

  • Page 5: Safety Tips

    S A F ETY TI PS 1. Know your Quattrolete. Your driving skills and mechanical skills are the foundation for safe driving. It is recommended to practice in open spaces and know the mechanical performance and handling first. 2. Evaluate your driving skills. Know your driving skills according to the handling of the Ebroh scooter to prevent accidents. 3.

  • Page 6: Safety Symbols

    S A F ETY SY M BOL S The symbols below indicate in the vehicle those components and areas where a hazard may exist. It is important to read and understand these indications and prohibitions. Read and understand this manual before using the product. In the battery danger of explosion by misuse.

  • Page 7: Component Description

    COMPONENT DESCRIPTION HANDLEBAR SUPPORT INDICATOR IGNITING INDICATOR BASKET ARMREST BATTERY CHARGE SPEED SLIDER INDICATOR SEAT TURN CONTROL SEAT COMMAND ADJUSTMENT ELECTRIC LEVER./MANUAL SEAT SEAT SHAFT ANGLE CONTROL HANDLEBAR FOCUS SETBACK PLUG BOWLER BURDEN AUDIBLE SWITCH BATTERY WARNING LIGHTS FUSE SHOCK ABSORBERS BUMPER ACCELERATOR WHEEL...

  • Page 8: Operating And Running Instructions

    IN ST RU CT I O N S, O PE R AT IO N A ND CI RC ULATI ON Inspection before movement According to the traffic regulations, the driver is responsible for the conditions of his vehicle. The essential properties of your vehicle can change even after a short stop.
  • Page 9 Familiarize yourself with the vehicle’s performance and properties before using it. DANGER. Do not operate the vehicle indoors. The owner is responsible for the safety of the vehicle. You will achieve maximum road safety and the best conditions of your vehicle thanks to regular inspections, adjustments and lubrication.
  • Page 10 3 Keep the charger in a place that cannot be reached by young children. Do not place the battery upside down or use it without full charge, as it will seriously affect the battery life. It is strictly forbidden to turn on the switch when the battery is charging. 4 If a peculiar odor or excess temperature occurs, stop charging it immediately and send it to the authorized service center.
  • Page 11 Maintain good charging habits, give better vitality to the battery. The vehicle is charged with a 24V 20Ah lithium battery. The lithium battery is self-contained, enclosed in a metal housing and is mounted on the vehicle chassis. Attention. 1. If the battery runs out and cannot be recharged in a short time or remains in storage in a short period of time (e.g. one week), or maintains its charging capacity below 20%, it could result in the loss of battery storage capacity and, therefore, the loss of its guarantee.
  • Page 12 DANGER. Once the battery is broken or deformed, it must be removed from the vehicle immediately, placed in an open place, away from people and flammable objects, to avoid causing fire or explosion. Unauthorized private manipulation can cause people to be electrocuted or burned. Short-circuit batteries can set fire or explode. Use only the supplied charging cable and scooter charger.
  • Page 13 RANGE OF USE It is difficult to demonstrate a precise range of use due to the influence of many factors: 1. State of charge of batteries 5. Headwind 2. Gradient 6. Road conditions 3. Tyre pressure 7. Age/use of batteries 4.
  • Page 14 TYRE The tyre is one of the important parts of the vehicle; being directly in contact with the road, in a joint work with the suspension, this ensures that your vehicle has good driving comfort and stability, ensuring also that the wheel has good grip, improving traction and braking ability of the scooter. DANGER.
  • Page 15 USE OF THE SCOOTER GETTING ON THE SCOOTER Make sure the ignition key is not inserted. Never get on or off the scooter with the key in the ignition. Remove the key from dashboard first. DANGER. This will prevent the vehicle from moving during the driver’s up or down operation. Get on the side of the scooter.
  • Page 16 SCOOTER DRIVING The following indications may affect the stability and direction of the vehicle in circulation and therefore the physical safety ATTENTION. of the driver, pedestrians, pets and street furniture. For your safety do not perform the following actions: Driving with a pet on a leash. Carry passengers (including pets).

  • Page 17: Assembly

    A S S EM BLY A ND DIS AS S E M BLY The Quattrolete can be assembled by your dealer or specialist store for delivery. In case it has been delivered directly without assembly follow the following steps. 1. Open the box and check that all the components are in perfect condition. If not, please contact your dealer. 2.
  • Page 18 AUTOMATIC SHUTDOWN Your Quattrolete scooter is equipped with an energy saving system. The Quattrolete has a timer that in case of leaving the ignition key in its ignition position (“ON”) for more than 20 minutes without circulating the scooter turns off. If you wish to resume circulation you must perform the following operations: 1.
  • Page 19 2. Stretch the knob to remove the locking pin. 3. Slide the tube inwards or outwards as desired. 4. Align the holes in the seat frame and those in the arm, re-insert the locking pin. 5. Tighten the knob. To get on or off the scooter without turning the seat can raise the armrest on the side because it will go down.

  • Page 20: Cleaning And Care

    LIMPI EZA Y C UIDA DO Regular and proper cleaning is an important factor for the maintenance of your vehicle. It is important to maintain the full functioning of the main parts of the vehicle. 1. Aggressive or penetrating solvents can damage rubber or plastic parts. 2.
  • Page 21 Cleaning and care recommendations Your scooter needs minimal cleaning for its care and maintenance. Follow a regular cleaning schedule. EXTERIOR SURFACES Bumpers, rims and trimmers can improve your appearance with a slight application of brightener or conditioner DANGER. Do not apply these products to the seat or tire as they can become dangerously slippery. CLEANING AND DISINFECTION Use a soft, non-abrasive cleaning cloth and product to clean the plastic and metal components of the scooter.
  • Page 22 FORBIDDEN. Even though the scooter has passed the waterproofing controls, it should keep electrical components away from moisture, direct exposure to water, body fluids such as sweat or incontinence. Check electrical components frequently for signs of corrosion and replace if necessary. CONTROLS, CHARGER AND REAR ELECTRONICS Keep these elements free of moisture.

  • Page 23: Fr Equen Tly A S K E D Q U E S T I O Ns A Nd T Roub Lesh Oo Tin G

    FR EQUEN TLY A S K E D Q U E S T I O NS A ND T ROUB LESH OO TIN G Any electromechanical device requires some troubleshooting. However, most problems that may arise can be solved with a little reflection and common sense.
  • Page 24 Number of beeps Problem Traffic controller. You may be trying to Turn off the scooter for a few minutes to allow place the battery while the key is inserted the controller to cool down and re-insert the          (9) or the engine controller may be in warm-up key.
  • Page 25 What to do if the scooter does not move when I press the accelerator? When the lever of electr mode. /manual is pressed forward, the brakes are disconnected and the power connection is not transmitted. Pull the lever to connect the electric circulation mode, repeat the ignition operation. What to do when the main switch is fired repeatedly? When the switch is fired repeatedly check that its operation is allowed.

  • Page 26: Maintenance

    MAINTENANCE PROGRAM The inspection intervals specified in the maintenance programme are applied to use the vehicle in normal use. Maintenance intervals may need to be shortened depending on location, weather conditions, personal driving style and terrain. The first event (month or kilometers) is decisive. Adjustment: A, Change: C, Inspection: I (includes lubrication, adjustment, cleaning or change of component in case of wear or damage if necessary) After 1 month After 12 més or...

  • Page 27: Inspection Log

    INSPECTION LOG Inspection and maintenance work can only be performed and confirmed by an authorized dealer. The first maintenance (month or kilometers) is decisive. 1st Inspection and maintenance 2º Inspection and maintenance 3º Inspection and maintenance 4º Inspection and maintenance after 1 month or 500 km.

  • Page 28: Warranty Policy

    WA R RA NTY P OL IC Y All our Ebroh scooters are guaranteed by manufacturing defects for 24 months from the time of delivery. All wear-resistant components such as brake pads, tyres, shafts, bearings and light bulbs remain excluded from the guarantee. The security shall be cancelled if any of the following conditions is met: - Where a malfunction attributable to human error or negligence of the machine user is demonstrated.

  • Page 29: Vehicle Modifications + Series Nº

    MO D I FI C AT I O NS T O T HE V E HI CLE Conversions or additions can leave your vehicle unprotected and could put you and other road users at risk. They can be carried out only where they are legally permitted.

  • Page 30: Technical Information

    TE CHNI C AL IN FO RMAT IO N M AI N FEAT U RE S Weight 55 Kg Voltage 24 V 270 Ah Top speed 10 Km / h Maximum load 150 Kg Capacity 1 person...
  • Page 31 DATA TABLE MODEL CODE EQUT-029 MAXIMUM SAFETY SLOPE 12º(14.1%) MAXIMUM CLIMBING CAPACITY 150Kg. (275 lbs) MAXIMUM LIFTING OF OBSTACLES 5 cm. MEASUREMENTS (WIDTH, HEIGHT, BOTTOM) 520x900x1200 mm. WEIGHT / WITH PACKAGING. 55 Kg./ 65Kg. MEASURES 560x640x1240 mm. ENGINE TYPE AND POWER 24V, 270W REMOVABLE BATTERY Lithium ion 24V, 20Ah...

  • Page 32: Vehicle Authorisation

    VEHIC LE AUT HO RISAT ION Please fill in next to the guarantee card. Type. Number of contact key. Frame Nº. Color. Name. Surname. Zip Code - City. The Scooter was successfully delivered by: Date of Signature / stamp of Buyer’s purchase.

  • Page 33: Warranty Card

    WA R R AN TY C AR D Type. Number of contact key. Frame Nº. Color. Name. Surname. Postal Code - City. The Scooter was delivered correctly by: Date of Signature / stamp of Buyer’s purchase. the distributor. signature.

  • Page 34: Maintenance Record Sheet

    M AIN TE NA NC E RE CO RD SH EE T Cause and DATE Description Person procedure for Place of service OBSERVATIONS dd/mm/aa of the fault of service resolving the fault...
  • Page 35 Cause and DATE Description Person procedure for Place of service OBSERVATIONS dd/mm/aa of the fault of service resolving the fault...
  • Page 36 Ofi c i na · + 3 4 8 76 7 6 8 0 4 0 info@ebroh.es www.ebroh.es Plataforma Logística Zaragoza PLAZA - c/ Tarento, 9 - 50197 - Zaragoza (Spain)
