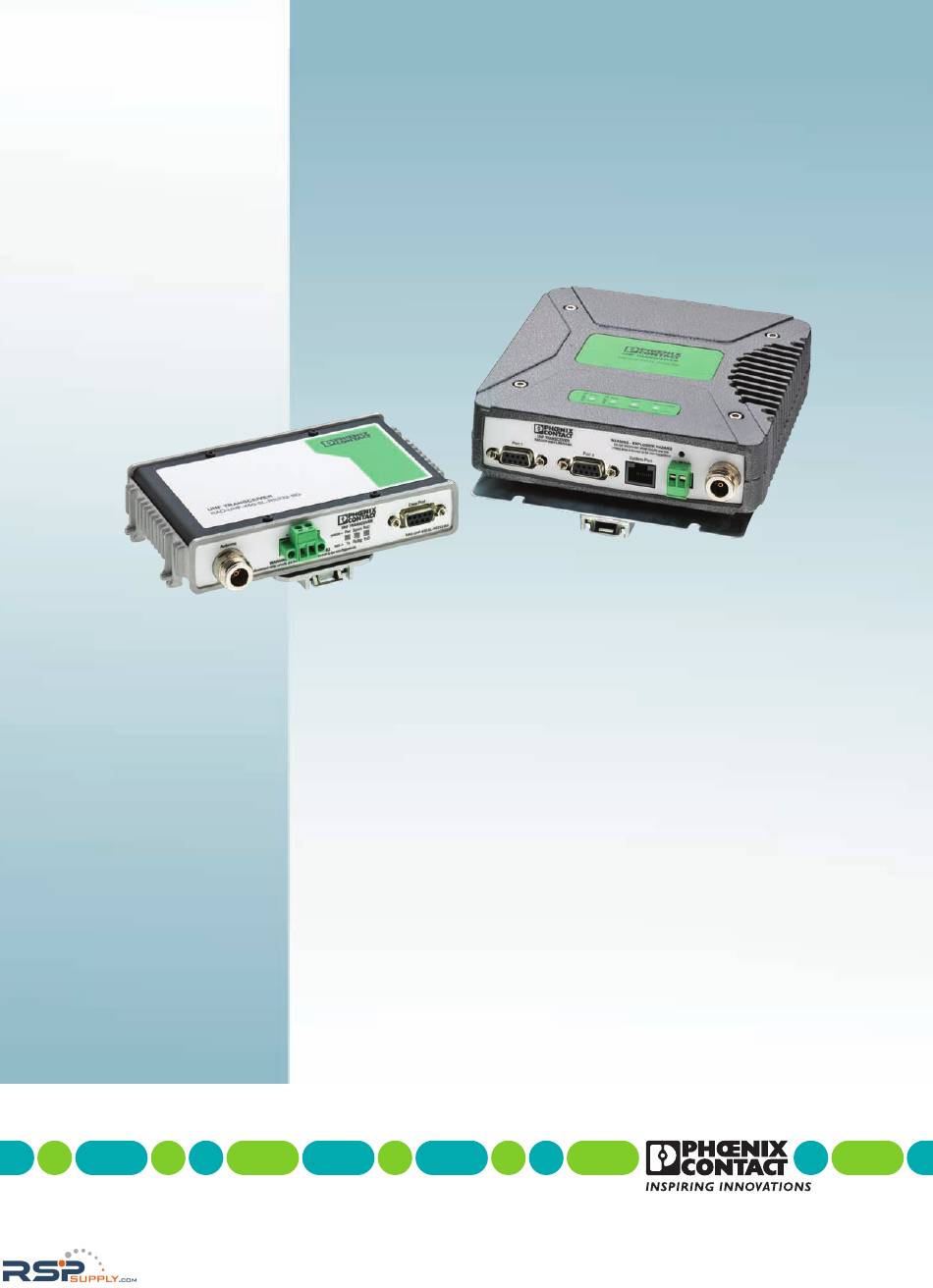

Page 1 User Manual RAD-UHF-… Wireless Radio System for PTP and PTMP Data Communication on the UHF Band RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 2 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 3 INTERFACE User Manual 04/2007 Designation: RAD-UHF-… Revision: This user manual is valid for: Designation Version Order No. RAD-UHF-SL-RS232-BD 5606857 RAD-UHF-FL-RS232-BD/64F01 5606114 RAD-UHF-FL-RS232-BD/63F01 5606858 RAD-UHF-FL-RS232-BD/51F01 5607055 RAD-UHF-FL-RS232-BD/65F01 5607056 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 4 Phoenix Contact accepts no liability for erroneous handling or damage to products from Phoenix Contact or third-party products resulting from disregard of information contained in this manual.
Page 5 Although Phoenix Contact makes every effort to ensure that the information content is ac- curate, up-to-date, and state-of-the-art, technical inaccuracies and/or printing errors in the information cannot be ruled out. Phoenix Contact does not offer any guarantees as to the reliability, accuracy or completeness of the information.
Page 6 No representation or other affirmation of facts, including but not limited to statements re- garding capacity, suitability for use or performance of the equipment, shall be or be deemed to be a warranty or representation by Phoenix Contact for any purpose, not give rise to any liability or obligation of Phoenix Contact whatsoever.
Page 7: Table Of Contents
Product Overview ........................1-3 RAD-UHF-FL-RS232-BD/… Overview............... 1-3 1.1.1 RAD-UHF-FL-RS232-BD/… Features and Benefits ......1-3 RAD-UHF-SL-RS232-BD Overview ..............1-4 1.2.1 RAD-UHF-SL-RS232-BD Features and Benefits ....... 1-5 System Architecture ................... 1-5 1.3.1 Generic Connectivity ................1-5 1.3.2 Industries and Applications ..............1-6 1.3.3 Application Detail ................
Page 8 Introduction (Automatic Diagnostics) ..........6-6 6.3.5 File Menu .................... 6-6 6.3.6 Settings Menu ...................6-13 6.3.7 Polling ....................6-23 6.3.8 Data Logging ..................6-25 6.3.9 Tools ....................6-28 6.3.10 Interpreting Poll Results ..............6-31 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 9 RAD-UHF-… Open Database Connectivity (ODBC)..............6-33 Technical Data.........................7-3 RAD-UHF-SL-RS232-BD ................... 7-3 RAD-UHF-FL-RS232-BD\…................7-4 Ordering Information........................8-3 Ordering Information ..................8-3 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 10 RAD-UHF-… viii PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 11 System Architecture Product Overview..........................1-3 RAD-UHF-FL-RS232-BD/… Overview............... 1-3 1.1.1 RAD-UHF-FL-RS232-BD/… Features and Benefits......1-3 RAD-UHF-SL-RS232-BD Overview ..............1-4 1.2.1 RAD-UHF-SL-RS232-BD Features and Benefits ........ 1-5 System Architecture ................... 1-5 1.3.1 Generic Connectivity ................1-5 1.3.2 Industries and Applications..............1-6 1.3.3 Application Detail................. 1-6 1.3.4...
Page 12 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 13: Product Overview
The ability to duplicate data streams – that is, decode the same off-air data to two sep- arate ports. • Multi-function radio capable of dropping off one stream to a port and forward on or re- peat (store and forward) the same or other data. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 14: Rad-Uhf-Fl-Rs232-Bd
Data Port “breakout box” style flow LEDs for easier troubleshooting. RAD-UHF-SL-RS232-BD Overview The RAD-UHF-SL-RS232-BD radio is a wireless modem designed for the transmission of data communications for SCADA, telemetry and any other information and control applica- tions that utilize ASCII messaging techniques. The SL radio uses advanced “digital” mod- ulation and signal processing techniques to achieve exceptionally high data throughput ef- ficiency using traditional licensed narrow band radio channels.
Page 15: Rad-Uhf-Sl-Rs232-Bd Features And Benefits
Pw r Syn ch RxD > Tx RxS g Figure 1-2 RAD-UHF-SL-RS232-BD Radio System Architecture 1.3.1 Generic Connectivity The RAD-UHF-… Series is designed for SCADA and telemetry applications, and any other applications that use an ASCII communications protocol, and which connect physically using the RS-232 interface standard (although converters can be used to adapt other in- terfaces such as RS-422/485).
Page 16: Industries And Applications
This simple system architecture provides a virtual connection between the two points, sim- ilar to a cable. Dependent of the hardware chosen, it is possible to provide a full-duplex connection, i.e., data transfer in both directions simultaneously, if required. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 17 Normally, the radio system is allowed to operate “transparently”, allowing the application’s protocol to provide the addressing, and thus control the traffic. Where the application layer does not provide the addressing, the FL Series can provide it using SID codes™. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 18 In this scenario, the repeater is the master from an RF point of view, and the application master is effectively a “remote” from an RF point of view, even though it is controlling the data transfer on the system. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 19: Compliance Information
Non-directional antenna - DO NOT allow people to come within 0.5 m (20 in.) of the antenna when the transmitter is operating. Directional antenna - DO NOT allow people to come within 6 m (20 ft.) of the antenna when the transmitter is operating. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 20: R&Tte Notice (Europe)
DC Blocking Capability - 1.5 kV impulse (Rise Time 10 ms, Fall Time 700 ms) (Repe- tition 10 times) or 1.0 kV RMS 50 Hz sine wave for 1 minute. Phoenix Contact declares that the RAD-UHF-… radio equipment is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Therefore this equipment is labelled with the following CE-marking.
Page 21: Low Voltage Safety (Europe)
Tampering or replacement with non-factory components may adversely affect the safe use of the radio modem in hazardous locations and may void the approval. A power connector with screw-type retaining screws as supplied by Phoenix Contact MUST be used. 1.4.3 Low Voltage Safety (Europe) In order to comply with the R&TTE (Radio and Telecommunications Terminal Equipment)
Page 22: 2313_En_A
RAD-UHF-… 1-12 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 23 Path Quality Analysis ..................2-3 2.2.1 Signal Strength ..................2-3 2.2.2 Antennas and Cabling ................. 2-4 2.2.3 Coaxial Cable Considerations ............. 2-4 2.2.4 Antenna Mounting Considerations ............2-6 2.2.5 Maintaining System Performance............2-6 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 24 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 25: System Planning And Design
The exceptions include short distances and where a test is done with a Phoenix Contact radio. However, where towers would need to be built just to do the test, a path loss study is more practical. A path loss study predicts the signal strength reliability and estimates the fade margin of a proposed radio link.
Page 26: Antennas And Cabling
For long-range transmission paths where the signal is likely to be weaker, a low-loss cable type is recommended, especially if the length of cable must exceed 15 m (50 ft.). PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 27: Cable Types And Signal Loss (Db) At 450 Mhz
Cable Types and Signal Loss (dB) at 450 MHz Cable Type Loss per 30.5 m (100 ft.) RG-58 9.9 dB RG-213 4.62 dB LMR 400 2.71 dB LMR 600 1.72 dB 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 28: Antenna Mounting Considerations
If possible, the radio should be keyed during this test to ensure maximum current draw from the supply. Batteries, if used, should be checked for charge level and signs of leakage or corrosion. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 29 The V24 Standard ................3-3 3.1.2 Hardware Handshaking (RAD-UHF-FL… Only) ........3-4 Power Supply and Environmental Considerations ..........3-5 3.2.1 General....................3-5 3.2.2 Power Supply ..................3-5 3.2.3 Solar Applications................3-5 3.2.4 Grounding.................... 3-6 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 30 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 31: Making Connections And Powering Up
RXD, and GND). Straight Through Cable Null Cable Modem DB9 Female RTU/PLC or Computer Modem DB9 Female RTU/PLC or Computer Connector DB9 Connector Connector DB9 Connector Figure 3-1 RS-232 Cable Types 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 32: Rad-Uhf-Sl-Rs232-Bd Ports
5 – GND 6 – RxD - Diagnostic 7 – RTS 8 – CTS 9 – RSSI Output Figure 3-2 RAD-UHF-SL-RS232-BD RS-232 Connector Pinout 6 – DSR 7 – RTS 8 – CTS 9 – Not used (Port 1) RSSI (Port 2) 5 –...
Page 33: Rad-Uhf-Fl-Rs232-Bd Ports
Hardware handshake lines can be employed to provide flow control. However, in the te- lemetry industry, many devices do not always support all (or any) flow control lines. NOTE: Because of the great variety of handshaking methods, Phoenix Contact does not recommend full handshaking implementation. However, Ready-To-Send (RTS) and Clear-To-Send (CTS) can be configured, if necessary.
Page 34: Power Supply
Please pay particular attention to 24 V DC PLC systems using DC-DC converters to supply 13.8 V DC. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 35 4.5.2 Pull-Down Menus and Toolbar Buttons ..........4-17 4.5.3 Port Configuration................4-21 4.5.4 RF Parameters ..................4-26 4.5.5 TX/RX (Frequency) Trim ..............4-28 4.5.6 System Parameters ................4-29 4.5.7 Messages ..................4-36 4.5.8 Status Bar..................4-36 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 36 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 37: Programming
All configuration parameters are held in non-volatile memory (NVRAM) on the Data Radio Modem. Configuration is fully programmable via the Systems Port using the programming cable (Part No. 5606653 for RAD-UHF-FL-… and 5606657 for RAD-UHF-SL-RS232-BD). Disassembly of the unit is not required for any reason other than for factory servicing.
Page 38: Rad-Link 400 Software Main Screen
(Figure 4-2). In this mode it is possible to open a previously saved configuration file, or configure various programming options and save the configuration to a file. NOTE: Modulation type is not available in this mode. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 39 Clone Mode. It is important to note that when using this facility the cloned radio should be of the same type to ensure it does not operate outside its capability. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 40: Pull-Down Menus And Toolbar Buttons
If the session is lost due to data trans- mission errors or disconnection of the programming cable it needs to be re-established to ensure any updated configuration is written successfully to the unit. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 41 COM1 is the default selection and, if a different port is to be used, it must be set before establishing a session by reading the configuration from a unit. While a session is established with a unit this menu cannot be accessed. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 42: Port Configuration
The packet layer configuration options which can be selected are: PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 43 Each data packet is delineated by <FEND> characters, and a substitution mechanism exists that allows these characters to be included in the data packet. The diagnostics controller package uses the SLIP protocol to communicate between base station and remote modems. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 44 Maximum Frame Size: Set the maximum number of characters or enter zero to disable. Range 0-4095. • EOM Character: Select the check box to the left of the description to enable and enter the EOM character as a decimal value. Range 0-255. 4-10 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 45: Rf Parameters
The power level can be adjusted by selecting this button which displays a dialog box. The up/down keys or a typed-in value can be used to select the required power level in dBm steps. Figure 4-8 Power Adjust 4-11 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 46 Detection of a received signal above the mute level is indicated by the “RxSig” LED on the unit. Figure 4-9 Mute Adjust 4-12 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 47: System Parameters
Port 1 or Port 2 (FL Series only) and included in a complete frame for transmis- sion over the radio channel. The maximum period that the transmitter will be enabled is limited by the PTT timeout setting. 4-13 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 48 This value must match that specified in the RAD-Link 400 Diagnostics software configuration. For more information see section "Diagnostics" on page 6-3. 4-14 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 49: Messages
4.4.6 Messages The message window provides a log of error messages occurring during use of the pro- grammer utility. Several error messages may occur as a result of a selection. 4-15 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 50: Status Bar
Clone Mode. It is important to note that when using this facility the cloned radio should be of the same type to ensure it does not operate outside its capability. 4-16 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 51: Pull-Down Menus And Toolbar Buttons
Note that a session must be established with the unit by initially reading the configuration parameters from the unit prior to being written to a unit. 4-17 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 52 The progress of data transfer to or from the unit is indicated by a message window as well as a rotating indicator in the bottom right-hand corner of the main window. Figure 4-15 Read Unit Dialog Box 4-18 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 53 Power Adjust and Mute Adjust. Wizard (also available on toolbar) This function permits the user to select standard configurations after the configuration from a unit has been read or a file opened. 4-19 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 54 This feature is normally used for configuring data radio modems connected locally. The procedure is: Read the configuration from the first unit. Configure the parameters (or open a previously saved configuration file). 4-20 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 55: Port Configuration
“OK” button should be used to complete the selection. The custom selection is also dis- played in the main window below the “Custom ” button. Figure 4-21 Non-Standard Configuration Screen 4-21 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 56 SLIP is a well-known protocol for transferring binary data packets over a data link. Each data packet is delineated by <FEND> characters, and a substitution mechanism exists that allows these characters to be included in the data packet. 4-22 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 57 Maximum Frame Size: Set the maximum number of characters or enter zero to disable. Range 0-4095. • Minimum Frame Size: Set the maximum number of characters or enter zero to dis- able. Range 1-255. Only available when AES Encryption is on. 4-23 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 58 The CTS line is set to FALSE if the transmit buffer in the modem exceeds 4075 bytes, or the number of queued frames exceeds 29 to ensure that no overflow condition can occur. 4-24 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 59 Check the “Data Detect” radio button for DCD to be asserted when data is about to be transmitted from the port. This option is not available if handshaking is set to “None” or “Xon/Xoff”. 4-25 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 60: Rf Parameters
NOTE: Although the transmit power has been adjusted it must be written to the unit using the modem “Write” function to ensure it is retained after a power on reset. 4-26 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 61 Selecting “OK” retains the mute level setting. Note that, although the mute level has been adjusted, it must be written to the unit using the “Write” function to ensure it is retained after the unit is rebooted. 4-27 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 62: Tx/Rx (Frequency) Trim
NVRAM using the modem “Write” func- tion to ensure it is retained after the modem is rebooted. Figure 4-28 Frequency Trim 4-28 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 63: System Parameters
For example, a standard oscillator may vary in fundamental frequency operation over 1 year by one part per million. An adjustment range of ±10 ppm, displayed in Hz, has been allowed for. If this is insufficient, the unit should be returned to Phoenix Contact for re-calibration.
Page 64 Each port is independent and supports multiple options which are described in the follow- ing sections. Figure 4-30 illustrates the structure of the stream routing function for each data port. Figure 4-30 Stream Configuration 4-30 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 65 “trunked” through to the other radio, the 4-31 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 66 The master unit must retransmit any diagnostic frames that are not addressed to itself onto the remainder of the population. 4-32 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 67 However, if more than one remote unit transmits at a time, a collision will occur during the multiple transmissions, resulting in a loss of data from one or more units. 4-33 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 68 1 and the maximum slot number. For ex- ample, if the time per slot is 30 ms and the maximum slots is 4, the random backoff times can be 30, 60, 90 or 120 ms. 4-34 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 69 – Serial Number is unique to each unit and is set within the unit at time of production as well as included on the label fixed to the unit. 4-35 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 70: Messages
Remote indicating communications is via a radio channel. – Rotating bar progress indicator showing data is being transferred to or received from a unit. 4-36 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 71 Data Port Transfer ................5-3 5.1.4 Radio Errors ..................5-4 5.1.5 Antenna Alignment and RSSI Testing ..........5-4 5.1.6 Link Establishment and BER Testing ..........5-5 5.1.7 Performing a Loop Back Test .............. 5-6 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 72: 2313_En_A
RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 73: Troubleshooting
Note that some incorrect settings of the character set parameter can still produce transmittable data even though the data will not be understood by the ap- plication. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 74: Radio Errors
This DC voltage appears at Pin 9 of Port 1 (SL radio) or Pin 9 of Port 2 (FL radio). A ground reference can be obtained from chassis ground or Pin 5 of a data Port. Figure 5-1 shows Pin 9 voltage as it relates to signal strength. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 75: Link Establishment And Ber Testing
RAD-Link 400 software under “statistical performance tools”. ® Alternatively, it is possible to use HyperTerminal or other packet test instruments, or PC programs to run end-to-end or perform “loop back” testing. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 76: Performing A Loop Back Test
Type characters into the terminal program. If the test is successful, the characters ap- pear on the terminal program. If not successful, the screen is blank. Observe the TX/RX LEDs on each radio to determine how far the data is going. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 77 Introduction (Polled Diagnostics)............6-5 6.3.4 Introduction (Automatic Diagnostics)........... 6-6 6.3.5 File Menu..................... 6-6 6.3.6 Settings Menu..................6-13 6.3.7 Polling....................6-23 6.3.8 Data Logging ..................6-25 6.3.9 Tools....................6-28 6.3.10 Interpreting Poll Results ..............6-31 Open Database Connectivity (ODBC)..............6-33 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 78 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 79: Diagnostics
Microsoft Jet Database Engine Ver 3.5. The database file, which is an “.mdb” file, can be accessed with external programs such as ® Microsoft Access 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 80: Main Screen
Alarms displays any alarms that occur. Base Station Activity displays any changeovers that occur with Hot Stand-by Base Stations within the system. NOTE: Automatic Diagnostics “Status Polls” appear as cyan in color. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 81: Modem Connection
A radio modem can be excluded from a poll sequence by removing it from the poll group. Intensive polling of a single radio modem is possible using the Individual polling facility. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 82: Introduction (Automatic Diagnostics)
The “File” menu allows the operator to create a New database, Open an existing database, Add/Edit/Delete a database or View an existing database. All such database tools utilize standard, Windows-type formats for file selections as shown below. PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 83 Individual Unit Database Setup Selected Unit Selected Unit is a pull-down selection box for selecting a radio modem to view or edit. This is blank if no radio modems exist in the database. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 84 FL radio configuration programmer. Model This allows selection of the type of radio modem unit being adding to the database. Select RAD-UHF-FL-RS232-BD or RAD-UHF-SL-RS232-BD as required. Unit selection is either Base or Remote. Communications Port Select either serial (RS-232 serial data communications using COM1, etc.) or eDiags (Ethernet) mode.
Page 85 A selection list of serial numbers appears. Select one or a group at a time and then press the “Delete” button on the selection box. Exit Button Press the “Exit” button to exit the “Add/Edit/Delete” menu. 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 86 Diagnostics: Enabled or Disabled Base Station: Indicates if unit is a Remote or Base Station Firmware Packs: (Base Only) Radio: Base Station Firmware Version Display: Base Station Display controller firmware version 6-10 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 87 Freq Error: RX Freq Error Date: Date of Last Poll Time: Time of Last Poll 6.3.5.2 Database Utilities Several options exist under the database utilities. They are in a subset of the “File” menu. 6-11 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 88 This is useful to copy a database from one PC to another as it results in a significantly smaller file size or as a backup file. Compact and Repair This utility will compact and repair an existing database. 6-12 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 89: Settings Menu
Select either “dBm” or “milliwatts” as the display units. Power is displayed throughout the system in the selected power measurement unit. NOTE: Power is always stored in the database file as milliwatts. 6-13 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 90 The “Poll Group” dialog box enables the adding and removing of radios in the automatic poll group. Units in the Selection list box are available for adding to the poll group. These units are polled during a group poll cycle. 6-14 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 91 NOTE: High and Low Priority unit rules are implied in exactly the same way. This section of the user manual is applicable to both. 6-15 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 92 (when in the alarm condition) will generate. This parameter is specified to prevent a flood of e-mails when a radio unit does not recover from an error. 6-16 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 93 Local alarms are those diagnostics alarms that are displayed in the Alarms output window on the PC screen. Diagnostics provides a configurable set of rules for displaying local alarms in the alarm window. 6-17 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 94 Acknowledged Alarms” option is checked. Units that are alarming may disappear from the system if acknowledged alarms are not regularly reset to unacknowledged. Set Defaults: This parameter returns all values to the factory default. 6-18 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 95 Local IP: This is the IP address of the computer that the diagnostics software is running on. It must match the destination IP address in the terminal server or Ethernet device. Ensure only fixed IP addresses are used (Not DHCP assigned addresses). 6-19 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 96 Link client database to current radio database Remote Client Groups System administrators can restrict remote Clients to only view radio diagnostics data of a specific group of radio. Multiple group names can be defined. 6-20 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 97 Port: This option allows a UDP Port number to be specified for each client. Add: This option adds the currently selected remote client to the database. Deleted: This option deletes the currently selected remote client from the database. 6-21 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 98 Local Host Settings The “Local Host Settings” tab allows the server UDP port and password to be configured. The “server” is the local host machine. Figure 6-21 Local Host Settings 6-22 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 99: Polling
Received Frequency Error • Time and date stamp The line above Status Polls is a “Processing Status Bar.” It displays messages about errors, warnings and poll processing. Figure 6-22 Polling Report 6-23 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 100 Settings” on page 6-14) and then performs a group poll as per above. If configured, the group poll is repeated until done and the software waits for another 24 hours until time expires again. Figure 6-23 Individual Polling Screen 6-24 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 101: Data Logging
24-hour period is desired for viewing, then adjust the From: and To: fields accordingly and select the unit. When the History window first appears, the From: and To: fields contain the last 24 hours of data. 6-25 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 102 This provides a very effective and fast method of ana- lyzing a units’ operating parameters over time. Select “View Trend” under the “Data Logging” menu item or click the associated toolbar button. Figure 6-25 Trending 6-26 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 103 Use the “Set From” button to set the From: field to the current cursor position. Use the “Set To” button to set the To: field to the current cursor position. 6-27 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 104: Tools
Lost Packets: This indicates the number of packets RAD-Link 400 Diagnostics has declared as lost. Error: This indicates the calculated Packet Error Rate in percent. It is calculated from the ratio of TX Packets to RX Packets. 6-28 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 105 Each RAD-UHF-FL-… radio stores packet statistics for later retrieval and analysis. They are: • Lost Synch • Lost RxSig • Good Frames • Bad Frames • Time Ticker • RSSI Ticker 6-29 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 106 Adjust the From: and To: fields to view a specified time span or press ALL to obtain complete database period. 6-30 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 107: Interpreting Poll Results
Below -105/-110 dBm the error rate may become too high for some applications. In the modem the RSSI measurement is made every 100 ms, while the RF carrier is being detected. 6-31 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 108: Test Parameters
The modem is specified to operate over a DC supply range of 11 to 16 V. The default levels are set to 11.5 to 15.5 V. The modem will not operate correctly outside these bounds and damage may occur when high voltage levels are applied. 6-32 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 109: Open Database Connectivity (Odbc)
Microsoft Access, Excel, and most other Microsoft products. Accessing RAD-Link 400 software logged data from another application or platform via ODBC is easy, provided the application has an ODBC interface component. 6-33 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 110: 2313_En_A
RAD-UHF… 6-34 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 111 Section This section informs you about – technical data Technical Data ..........................7-3 RAD-UHF-SL-RS232-BD Technical Data ............7-3 RAD-UHF-FL-RS232-BD\… Technical Data............7-4 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 112 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 113: Technical Data
Technical Data Technical Data RAD-UHF-SL-RS232-BD Table 7-1 RAD-UHF-SL-RS232-BD Technical Data General Data Power Supply 10-16 V DC Transmit Current (nominal) 600 mA @ 1 Watt 1500 mA @ 5 Watt Receive Current (nominal) <170 mA Dimensions 154 x 102 x 28 mm (6.1 x 4.1 x 1.2 in.) Mounting NS35 DIN rail.
Page 114: Rad-Uhf-Fl-Rs232-Bd
16 kbyte of on-board RAM Analog Interface TX/RX Analog Interface for external FSK/FFSK modems Approvals Part 15, Part 90 Class 1, Division II, Groups A, B, C, D, for Hazardous Locations PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 115: Ordering Information
Section This section informs you about – ordering information Ordering Information ........................8-3 Ordering Information ..................8-3 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 116 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 117 Wireless radio, 2 data ports, 455-470 MHz range RAD-UHF-FL-RS232-BD/65F01 5607056 Accessories Description Type Order No. Pcs./Pkt Programming cable, use with RAD-UHF-SL-RS232-BD radio RAD-UHF-SL-CAB/PROG 5606657 Programming cable, use with RAD-UHF-FL-RS232-BD/… radios RAD-UHF-FL-CAB/PROG 5606653 Mini Power Supply, 10-15 V DC MINI-PS-100-240AC/10-15DC/2 2938756 Antenna, 6.5 dB YAGI for 400-430 MHz, with N-type connector...
Page 118 RAD-UHF PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 119 OMNI-Directional and YAGI-Directional Antenna Radiation ..... 2-5 Section 3 Figure 3-1: RS-232 Cable Types ................. 3-3 Figure 3-2: RAD-UHF-SL-RS232-BD RS-232 Connector Pinout ......3-4 Figure 3-3: RAD-UHF-FL-… RS-232 Connector Pinouts Ports 1 and 2 ....3-4 Section 4 Figure 4-1: RAD-Link 400 Software Main Screen ..........
Page 120 Individual Unit Database Setup ............6-7 Figure 6-4: Advanced Settings ................6-10 Figure 6-5: Radio View screen ................6-11 Figure 6-6: View Unit Summary List ..............6-12 Figure 6-7: Archive Between Dates ..............6-12 Figure 6-8: Controller Settings ................6-13 PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 121 Status Poll and Alarm History Report ..........6-25 Figure 6-25: Trending ..................6-26 Figure 6-26: Performance ..................6-28 Figure 6-27: Commissioning Record ..............6-29 Figure 6-28: Statistical Performance Counters ............6-30 Section 7 Section 8 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 122 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 123 LED Error Codes ................5-4 Section 6 Table 6-1: Statistical Performance ..............6-31 Table 6-2: Test Parameters................6-32 Section 7 Table 7-1: RAD-UHF-SL-RS232-BD Technical Data .......... 7-3 Table 7-2: RAD-UHF-FL-RS232-BD\… Technical Data........7-4 Section 8 2313_en_A PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
Page 124 RAD-UHF-… PHOENIX CONTACT 2313_en_A RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12961-Phoenix-Contact-5606858-Radio-Licensed-406-420-MHz-Serial-Radio.aspx...
