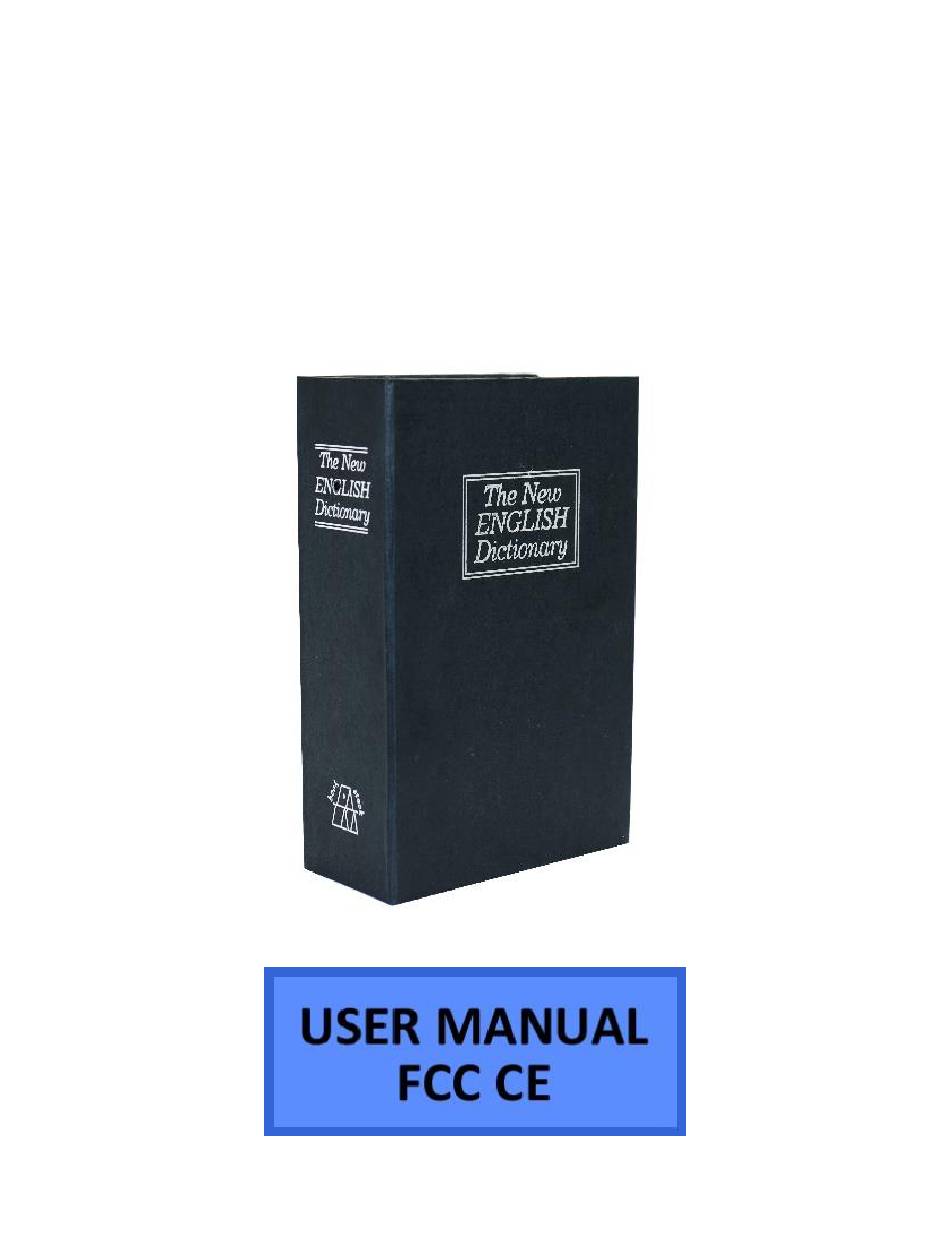

- Page 1 Bush Baby Stealth Dictionary Hidden Camera Manual SKU: BBSRBDictionary Version 2.0...
- Page 2 THANK YOU FOR PURCHASING THE BBSDICTIONARY Please read through this manual before operating your device, and keep it handy. Your purchase should include: 1 x BBSRBDictionary 1 x Remote Control 1 x Removable Battery 1 x MicroUSB Cable ...
- Page 3 GET FAMILIAR WITH THE BBSDICTIONARY Version 2.0...
- Page 4 Version 2.0...
- Page 5 Version 2.0...
- Page 6 BEFORE YOU START To preserve battery power, your device will come with the battery connector disconnected. Before attempting to use the device be sure to connect the battery’s connector to the circuit board power lead. OPERATING THE BBSDICTIONARY IMPORTANT NOTICE: Allow the device to charge 6 – 8 hours before using.
- Page 7 3. To remove the SD card, gently push the card in so that it clicks. 4. The internal spring tension will eject the card. REMOVING AND CHARGING THE BATTERY 1. Remove battery from the inside of the dictionary. 2. Disconnect the battery connector that is connecting the battery to the circuit board.
-
Page 8: How To Turn On The Camera
HOW TO TURN ON THE CAMERA 1. Press the Power Button on the remote control one time. The device is now in Standby mode. HOW TO RECORD CONTINUOUS VIDEO (720P) 1. In standby mode, press the “B” button once quickly (see page 4). The unit will vibrate twice. 2. - Page 9 HOW TO RECORD IN MOTION DETECTION MODE 1. In Standby mode, press the “D” button once quickly (see page 4). The unit will vibrate three times. 2. The unit is now in motion detection mode, and it will begin recording video when motion is detected.
- Page 10 1. Gently push the MicroSD card into the slot until you hear a click, then release the card. The spring inside should push the card out enough that you can grab it. 2. To insert the SD card, make sure the gold contacts on the card are inserted first, and that they’re facing the main circuit board.
- Page 11 IMPORTANT NOTICE: Ensure that the dictionary is off before inserting the MicroSD card, otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Connect the MicroSD card to your computer using the MicroSD card USB adapter after safely removing the card from your device.
- Page 12 Or… Go to Start > Computer > Removable Disk Version 2.0...
- Page 13 3. Open the Removable Disk drive. 4. Open the DCIM folder. 5. Open the folder featuring a sequence of numbers. 6. Double click the file you want to view. VLC Player is recommended for watching videos. If you are having video playback issues such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
- Page 14 want the save the file to. Right click your mouse, and then chose “Paste.” This will copy the file to your computer. To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A”...
- Page 15 5. Locate “Removable Disk” inside the (My) Computer folder. a. Go to Start > Computer > Removable Disk 6. Open the Removable Disk drive. 7. Right click with your mouse and paste the downloaded time file. 8. Alternatively, if you cannot get the above method to work, do the following: 9.
- Page 16 The title must be in all lowercase letters! Before Step 8 Version 2.0...
- Page 17 After Step 8 13. Open the text document. 14. Enter the date/time in the following format: a. Example: 2016/08/08 15:00:00 15. Save the text document. 16. Unplug the device from your computer. Power on the device and begin a test recording to confirm date/time setting succeeded.
-
Page 18: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Charge the device for at least 6-8 hours before the first use. Make all charging cables are securely connected when charging. THE DEVICE ISN’T CHARGING Replace the battery or charging cable. ... -
Page 19: Other Problems
THE INDICATOR LIGHT IS ON, BUT THE CAMERA WILL NOT RECORD VIDEO OR TAKE PHOTOS The SD card may be too small. o Insert SD card between 4GB – 128GB. You may have a 64GB+ card and need to format it properly. -
Page 20: Specifications
SPECIFICATIONS Video Resolution 1080P 720P Video Format .AVI Frames per Second Vision Angle 75° Motion Detection Lux Rating 1LUX Water Resistant Battery Life 30 Hour Type of Memory External MicroSD Card Memory Capacity 4GB – 128GB USB Interface 2.0 USB Player Software VLC recommended Operating Systems... - Page 21 Version 2.0...
- Page 22 Version 2.0...
- Page 23 Version 2.0...
- Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ Wall AC Adapter ☐ MicroUSB Cable ☐ Removable Battery ☐ MicroSD Card ____GB ☐ MicroSD Card Reader ☐ MicroUSB Cable ☐ Instruction Booklet ☐ BBSDictionary ☐ With Audio ☐ Without Audio QC Tech: _____________________________________ Date: ________________________________________ Leave Us A Review! Version 2.0...
