- Page 1 Panel Express INSTRUCTION MANUAL For Technical Support, Call 770-974-0021 888-SAWTRAX (888-729-8729) Watch an instructional video of picking up and moving a load at: https://vimeo.com/417310487...
- Page 2 PARTS OF THE PANEL EXPRESS Page 2...
- Page 3 When unpacking, CHECK TO MAKE SURE THAT THE DOLLY IS INTACT / UNDAMAGED and that all ordered parts are included. If any parts are missing or broken, please call Saw Trax Manufacturing as soon as possible at 770-974-0021. IMPORTANT WARNINGS AND SAFETY PRECAUTIONS 1.
- Page 4 7. If on a slope, position and lock casters on the down side of the slope. 8. Do not ride on this equipment. Do not carry passengers. 9. Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact Saw Trax Manufacturing for a replacement. Page 4...
-
Page 5: Tips And Tricks

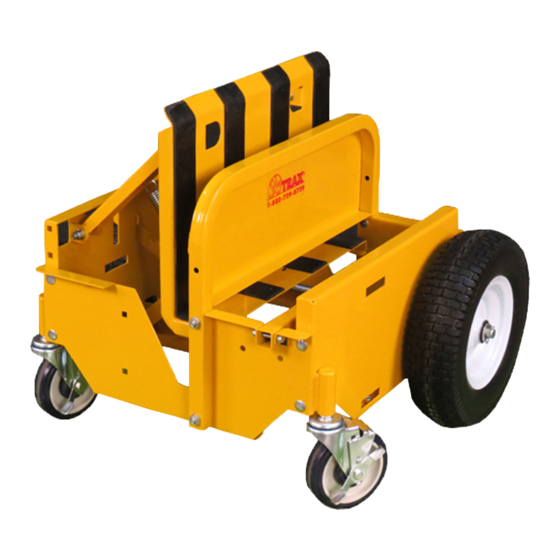

FEATURES The Panel Express comes standard with two (2) locking casters for easy loading and two (2) foam filled tires that will not go flat. The Self-adjusting brace mechanism automatically adjusting to hold any load up to 3.5". With the adjusting brace locked open, the maximum load is 200 lbs. -
Page 6: Optional Upgrades
FEATURES (Continued) Includes a convenient handle for moving the dolly when empty. OPTIONAL UPGRADES Need a handy place to store straps, tools, and supplies? Just add the optional Toolbox to our dolly for easy storage. Great for hand tools, mudding tool, or tie down straps. We find it is perfect for an E strap that can be used with the E strap fittings on the sides of the dolly. - Page 7 ASSEMBLY Some assembly is required on your part to finish the Panel Express. 1. Remove Cart, Foam Wheels, and all hardware packed in the box. 2. Install the Foam Tires and Axel using the provided flat washers and cotter pins.
- Page 8 Nuts. The heads of the bolts should be on the exterior of the dolly body. Revised 08/05/2020. For information on the compatibility of the Panel Express with any products introduced after this date, contact Saw Trax. Panel Express Instruction Manual © SAW TRAX MFG. 2020...
- Page 9 Saw Trax Mfg., Inc. sells through distributors. The specifications listed in Saw Trax Mfg., Inc. printed materials and on the official Saw Trax Mfg, Inc. website are given as general information and are not binding. Saw Trax Mfg, Inc. reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
