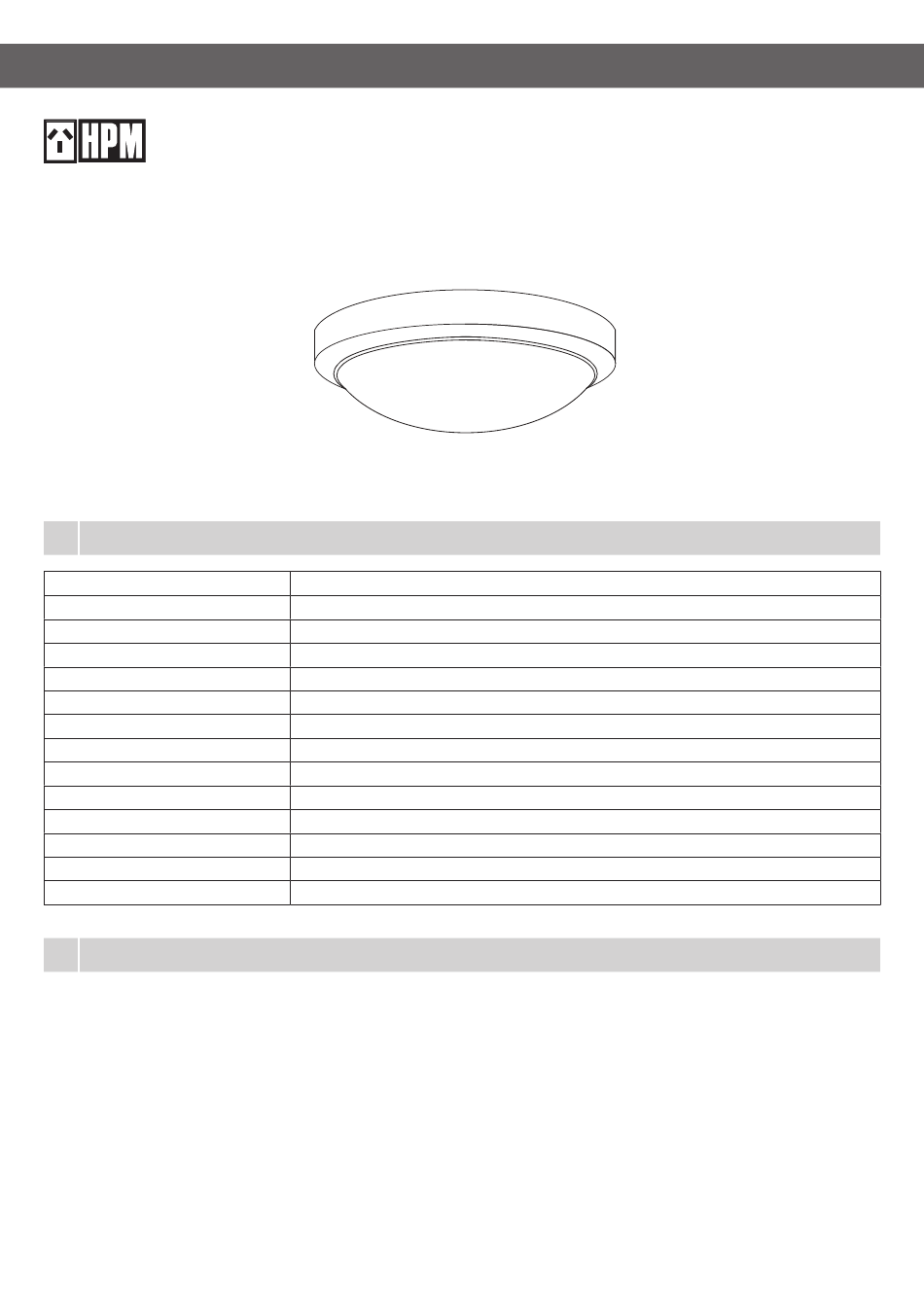

HPM LBL014KWE Instruction Manual

This product must be installed by a licensed electrician.
1

Specifications

Cat No.
Supply voltage
Input power
Power output
Lumens output
Colour temperature
Colour rendering index (CRI)
Beam angle
Dimmable
Lifespan (in open air at 25°C)
Protection class
IP rating
Size
Weight (excl packaging)
2

Installation

1. Remove the cover and diffuser from the fitting by loosening the mounting screws (figure 1).
2. Use the fitting as a template to mark the screw positions onto the wall / ceiling (figure 2).
3. Insert the mains wiring through the silicone grommet located near the terminal block.
4. Install the fitting onto the wall / ceiling (figure 3).
5. Remove the terminal block cover and connect the mains wiring to the terminal block as marked on the fitting. Ensure that the wires are secure and no bare
wires are exposed (figure 4).
6. Install the terminal block cover back onto the terminal block (figure 4).
7. Apply silicone to the grommet area where the mains wiring enters the fitting. This is to ensure the IP rating is maintained.
8. Install the diffuser and cover back onto the fitting and tighten the mounting screws (figures 5, 6 & 7).
9. DO NOT MEGGER TEST.

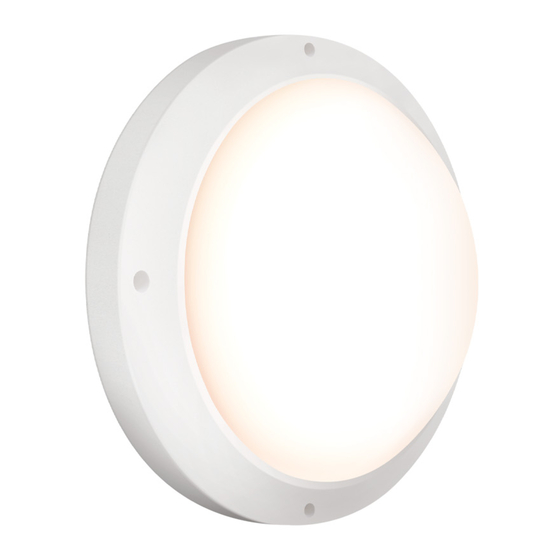

Oroya LED Outdoor Light
Instruction Manual
Cat. LBL014KWE, LBL014KBL
LBL014KWE, LBL014KBL
230-240V a.c. 50Hz
12W
11W
870lm
Cool White 4000K Nominal
80+
120
o
No
25,000h
Class II
IP65
Ø270 x 90mm
0.6kg
