Page 1

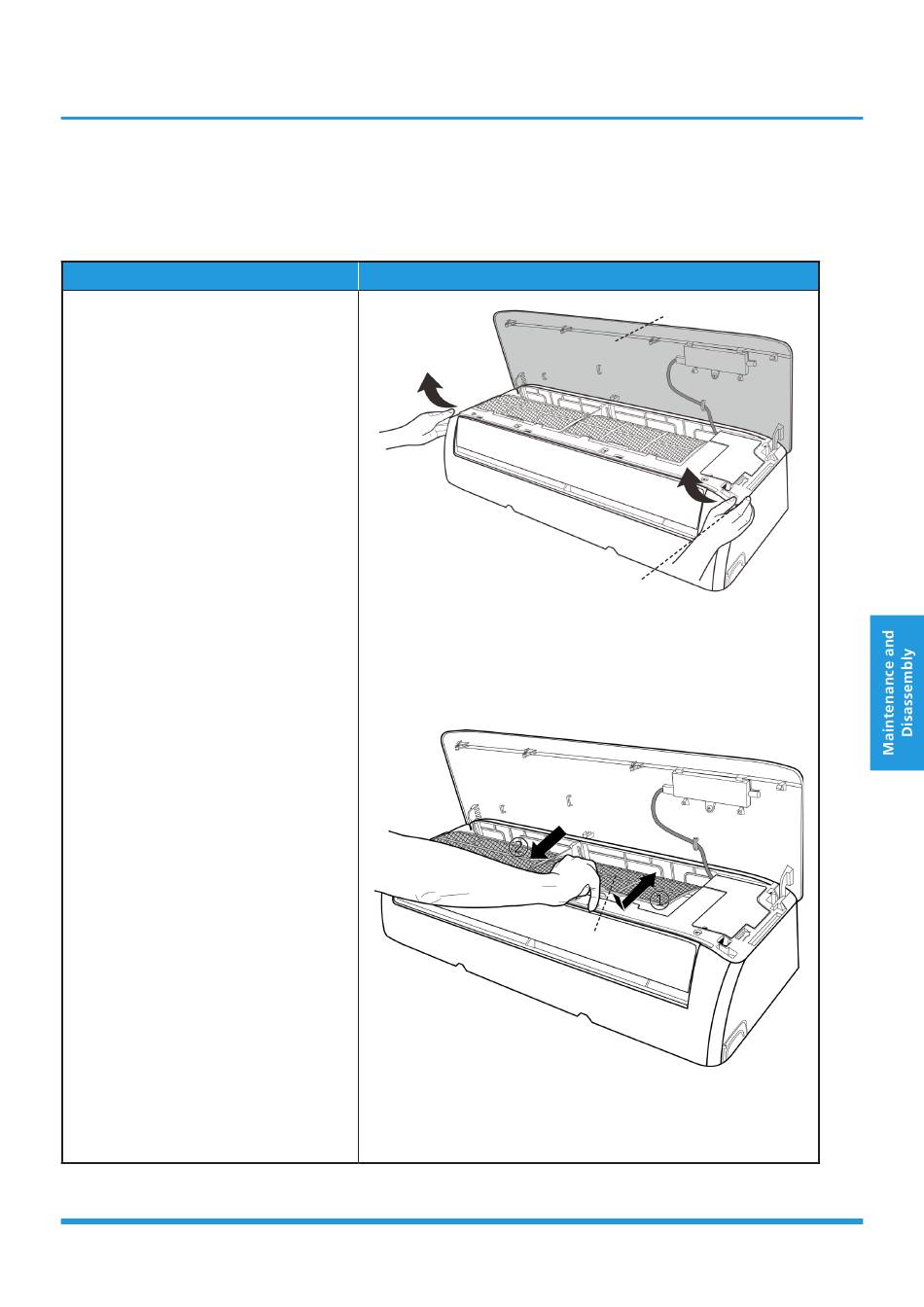

1. Disassembly Indoor unit Front Panel Procedure Illustration 1) Hold the front panel by the tabs on Front Panel the both sides and lift it (see CJ_AB_ INV_001). CJ_AB_INV_001 2) Push up the bottom of an air filter (step 1), and then pull it out downwards (step 2) (see CJ_AB_ INV_002).
Page 2
Procedure Illustration 1) Open the horizontal louver and push the hook towards left to open it (see CJ_AB_INV_003). Horizontal Louver Hook CJ_AB_INV_003 2) Bend the horizontal louver lightly by both hands to loosen the hooks, then remove the horizontal louver (see CJ_AB_INV_004).
Page 3
Procedure Illustration 3) Pry the electrical cover by a screw driver, and rotate it towars left, then remove it. (see CJ_AB_INV_005). CJ_AB_INV_005 4) Disconnect the connector for display board. (see CJ_AB_INV_006) . CJ_AB_INV_006 Note: This section is for reference only. Actual unit appearance may vary. ...
Page 4
Procedure Illustration 1) Slid the front panel side to side to release each axis (see CJ_AB_INV_007) CJ_AB_INV_007 2) Open the screw cap and then remove the 3 screws (see CJ_AB_INV_008). CJ_AB_INV_008 Note: This section is for reference only. Actual unit appearance may vary. ...
Page 5
Procedure Illustration 3) Release the hooks with hands. (see CJ_AB_INV_009) CJ_AB_INV_009 4) Release the 5 hooks in the back (see CJ_AB_INV_010). Hooks CJ_AB_INV_010 5) Pull out the panel frame while pushing the hook through a clearance between the panel frame and the heat exchanger.
Page 6
Procedure Illustration 1) Release the 5 hooks of the vertical blades, then pull the vertical blades Hooks rightward and remove it (see CJ_AB_ INV_012). CJ_AB_INV_012 2) Remove 1 screw of the display board. (see CJ_AB_INV_013). 3) Rotate the display board in the direction shown in the right picture.
Page 7
Electrical parts (Antistatic gloves must be worn.) Note: Remove the front panel (refer to 1. Front panel) before disassembling electrical parts. Procedure Illustration Ground Screws 1) Cut the ribbon by a shear, then pull out the coil temperature sensor (T2) (see CJ_AB_INV_014).
Page 8
Procedure Illustration 4) Remove the fixed devices of the connectors (see CJ_AB_INV_016). CJ_AB_INV_016 5) Disconnect the connectors of fan motor, the step motor and the T2 sensor (see CJ_AB_INV_017). CJ_AB_INV_017 6) Open the left side plate of electronic control box (see CJ_AB_INV_018). CJ_AB_INV_018 Note: This section is for reference only.
Page 9
Procedure Illustration 7) Open the two clips on the front of the electric box. (see CJ_AB_INV_019) CJ_AB_INV_019 8) Open the upper cover plate of electronic control box (see CJ_AB_ INV_020). CJ_AB_INV_020 Note: This section is for reference only. Actual unit appearance may vary. ...
Page 10
Procedure Illustration 9) Remove 1 screw and open the 2 clips along the direction indicated in right image (see CJ_AB_INV_021). CJ_AB_INV_021 10) Pull out the electrical main board along the direction indicated in right image to remove it (see CJ_AB_ INV_022).
Page 11
Evaporator Note: Remove the front panel and electrical parts (refer to 1. Front panel and 2. Electrical parts) before disassembling evaporator. Procedure Illustration 1) Disassemble the pipe holder located at the rear of the unit (see CJ_AB_INV_023). Pipe Holder CJ_AB_INV_023 Screw 2) Remove the 1 screws on the evaporator located at the fixed plate (see CJ_AB_...
Page 12
Procedure Illustration 1) Release the hook on the evaporator (see CJ_AB_INV_025). CJ_AB_INV_025 2) Remote the one screw on the evaporator located at the fixed plate (see CJ_AB_ INV_026). CJ_AB_INV_026 3) Pull out the evaporator (see CJ_AB_ INV_027). CJ_AB_INV_027 Note: This section is for reference only. Actual unit appearance may vary. ...
Page 13
Fan motor and fan Note: Remove the front panel, electrical parts and evaporator (refer to 1. Front panel, 2. Electrical parts, and 3. Evaporator). before disassembling fan motor and fan. Procedure Illustration 1) Remove the two screws and remove the fixing board of the fan motor (see CJ_AB_ INV_028).
Page 14
Procedure Illustration 1) Remove the fixing screw (see CJ_AB_ INV_030). 2) Pull out the fan motor and fan assembly from the side. Fixing Screw CJ_AB_INV_030 Note: This section is for reference only. Actual unit appearance may vary. Page 14 ...
Page 15
Step motor Note: Remove the front panel and electrical parts (refer to 1. Front panel, 2. Electrical parts) before disassembling step motor. Procedure Illustration 1) Remove the two screws, then remove the stepping motor (see CJ_AB_INV_031). Stepping Motor CJ_AB_INV_031 Note: This section is for reference only. Actual unit appearance may vary. ...
Page 16
Drain Hose Procedure Illustration 1) Rotate the fixed wire clockwise indicated in right image (see CJ_AB_INV_032). CJ_AB_INV_032 2) Pull up the drain hose to remove it (see CJ_AB_INV_033). CJ_AB_INV_033 Note: This section is for reference only. Actual unit appearance may vary. ...
