Disassembly of Super-slim Cassette
1.
Front Panel and Display Board
i) models except for 60k
Procedure

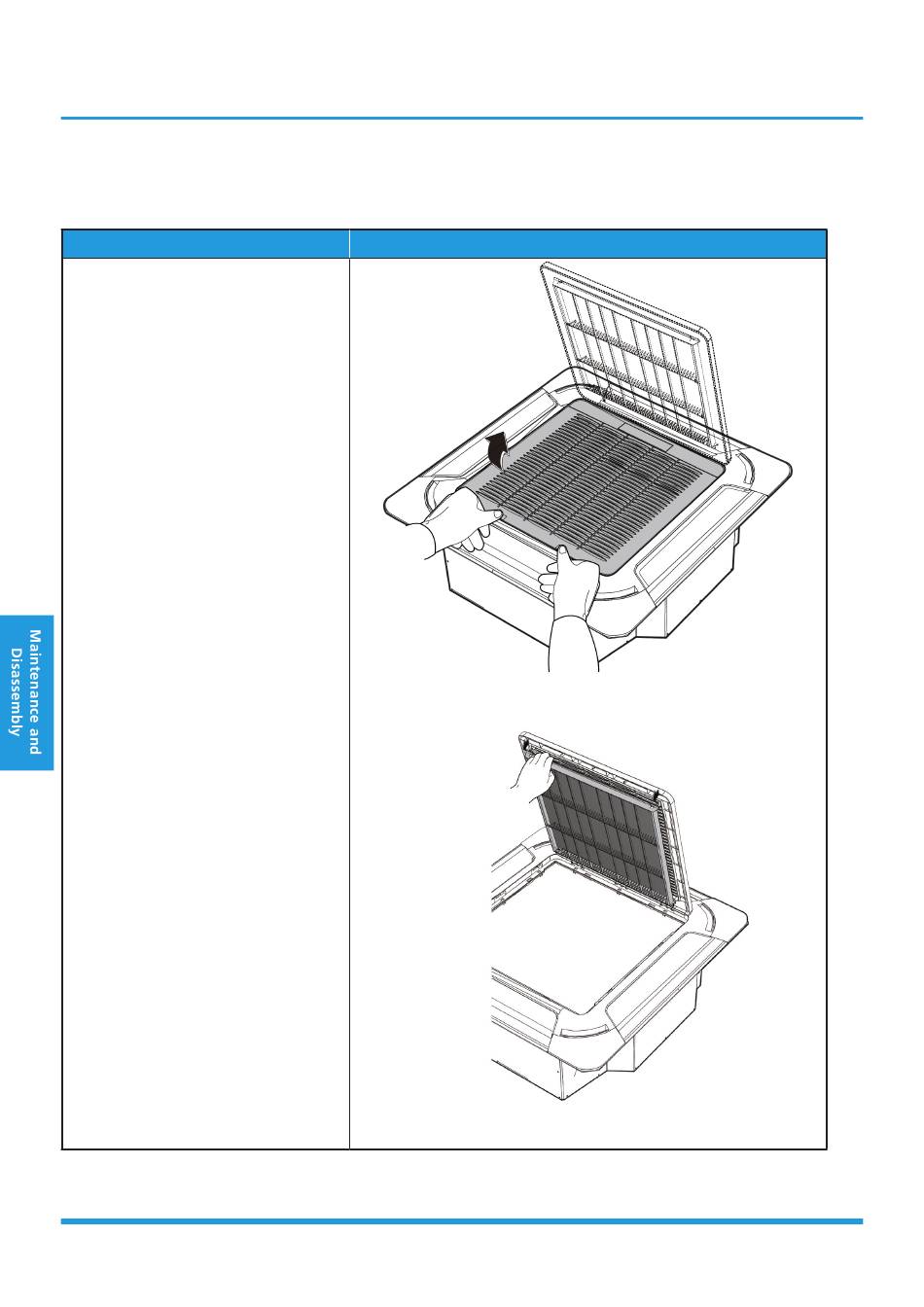

1) Release 2 hooks and open the panel.
(see CJ_CASSETTE_001 )
2) Pull up the filter. (see CJ_
CASSETTE_002 )
Note: This section is for reference only. Actual unit appearance may vary.
Page 1
Illustration
CJ_CASSETTE_001
CJ_CASSETTE_002
