MCAC-ATSM-2014-11
Hydraulic Module 50Hz
Content
1 Introduction ...................................................................................................................................................................... 2
2 Feature ............................................................................................................................................................................. 2
3 External appearance ...................................................................................................................................................... 3
4 Nomenclature .................................................................................................................................................................. 3
5 Products list ..................................................................................................................................................................... 4
6 Application range ............................................................................................................................................................. 4
7 Specifications ................................................................................................................................................................... 4
8 Dimensions ...................................................................................................................................................................... 5
9 Wiring Diagram ................................................................................................................................................................ 6
10 Exploded views ............................................................................................................................................................. 7
11 Selection ....................................................................................................................................................................... 11
12 Key components configuration parameter .............................................................................................................. 11
13 Trouble shooting ......................................................................................................................................................... 12
14 Installation .................................................................................................................................................................... 13
Manufacture reserves the right to discontinue, or change at any time, specifications or designs without notices and without
incurring obligations.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM/II-65S and is the answer not in the manual?

Questions and answers

Summary of Contents for MDV HM/II-65S

  • Page 1: Table Of Contents

    MCAC-ATSM-2014-11 Hydraulic Module 50Hz Content 1 Introduction ..................................2 2 Feature ..................................... 2 3 External appearance ..............................3 4 Nomenclature .................................. 3 5 Products list ..................................4 6 Application range ................................4 7 Specifications ................................... 4 8 Dimensions ..................................5 9 Wiring Diagram ................................
  • Page 2: Introduction

    Hydraulic Module 50Hz MCAC-ATSM-2014-11 1 Introduction The series hydraulic module is designed for air-cooled scroll chiller unit, it built-in two pumps, one is backup. The water pump can be automatic switching under failure (malfunction shifting). It is the use of the hydraulic module integration solutions, is a completely prefabricated sets strict monitoring of products, with a pump, valve, automatic replenishment, safety components, bypass components, drain dirty sewage and control system, etc.

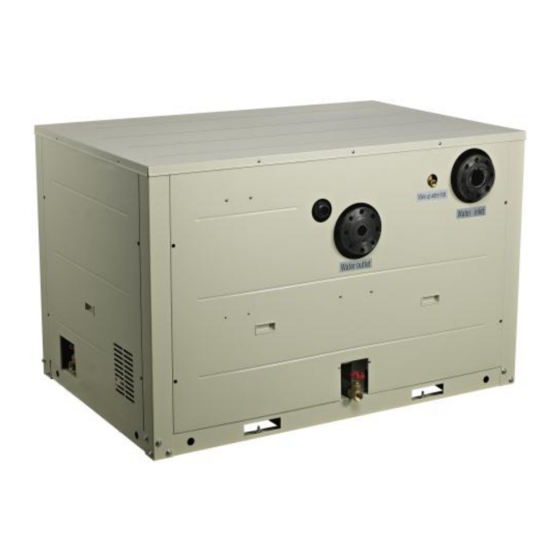

  • Page 3: External Appearance

    MCAC-ATSM-2014-11 Hydraulic Module 50Hz Setting pressure in plant:1.5 bar 2.7 More safety The motor safety class is IP24, insulation class is F. 3 External appearance 4 Nomenclature / V II – 65 Power Supply S: 380V, 50Hz, 3Ph D: 220V, 60Hz, 3Ph Rated cooling capacity (kW) Water pump quantity I: one pump...
  • Page 4: Products List

    Hydraulic Module 50Hz MCAC-ATSM-2014-11 5 Products list Model Water flow(m3/h) Head(m) Cooling capacity(kW) Power supply HM/II-65S 380V/3Ph/50Hz HM/II-130S 6 Application range Content Running range Running media Water, Glycol The fluid medium temp. -20˚C~100˚C Ambient temp. -15˚C~46˚C Power supply 380V/3Ph/50Hz Voltage rating tolerance ±...
  • Page 5: Dimensions

    MCAC-ATSM-2014-11 Hydraulic Module 50Hz Dimensions HM/II-65S Unit: mm HM/II-130S...
  • Page 6: Wiring Diagram

    Hydraulic Module 50Hz MCAC-ATSM-2014-11 9 Wiring Diagram HM/II-65S HM/II-130S...
  • Page 7: Exploded Views

    MCAC-ATSM-2014-11 Hydraulic Module 50Hz 10 Exploded views HM/II-65S...
  • Page 8 Hydraulic Module 50Hz MCAC-ATSM-2014-11 Part Name Part Name Middle support board Base welded parts Rear panel Column II Middle column Handle The welded parts of top cover Front panel II Column I Soft rubber joint Y-shape filter Front panel I Outlet water pipe ass'y of water tank Outlet water pipe ass'y of water pump Pumping rod type brass gate valves...
  • Page 9 MCAC-ATSM-2014-11 Hydraulic Module 50Hz HM/II-130S...
  • Page 10 Hydraulic Module 50Hz MCAC-ATSM-2014-11 Part Name Part Name Middle support board Base welded parts Rear panel Column II Middle column Handle The welded parts of top cover Front panel II Column I Soft rubber joint Y-shape filter Front panel I Outlet water pipe ass'y of water tank Outlet water pipe ass'y of water pump Pumping rod type brass gate valves...
  • Page 11: Selection

    Please make sure how many water system is need, each water system match the outdoor unit combined quantity and type. Each water system design of pump head, please refer to flow-head curve. Flow-head curve (HM/II-130S) Flow-head curve (HM/II-65S) Flow(m3/h) Flow(m3/h)
  • Page 12: Trouble Shooting

    Hydraulic Module 50Hz MCAC-ATSM-2014-11 13 Trouble shooting Name Phenomenon Possible reasons Solutions a.Exchange two wires of them. Phase sequence a. Phase sequence failure. The alarm signal output. b.Check whether the circuit is loose, failure b. Lake phase. please connect it again if yes. The pump The power supply is normal, After cut off power supply, replace the...
  • Page 13: Installation

    14.1 Dimension selection of pipe Water Expansion Pressure Fixed pressure Safety Automatic air Model Unit inlet/outlet tank by-pass valve replenishment valve valve valve DN65 HM/II-65S Inch 2-1/4' G3/4' R1-1/4' 1/2' 1/2' 3/8' DN65 HM/II-130S Inch 2-1/2' G3/4' R1-1/4' 1/2' 1/2' 3/8' 14.2 Installation introduction and key points:...
  • Page 14 Hydraulic Module 50Hz MCAC-ATSM-2014-11 DN15 unit DN65 DN65 unit DN32 Terminal Two-way valve Auxiliary electric heater Terminal Three-way valve Terminal Name Name Name Water flow switch Y-shape filter Check valve Automatic discharge valve Water storage tank Pressure relief valve Water replenishment valve Circulating pump Pressure by-pass valve Expansion tank...
  • Page 15 MCAC-ATSM-2014-11 Hydraulic Module 50Hz HM/II-65S HM/II-130S ○ Hoisting emplacement: If set on rooftop, hydraulic module will set a supporting point at the bottom, which can undertake hoisting carrying capability. If set indoor, it only needs to configure a trailer, drag it to indoor location specified. Please provide sizes and weights of each type of hydraulic module, convenient to hoist and make a hole in place.
  • Page 16 Hydraulic Module 50Hz MCAC-ATSM-2014-11 Make sure the linkage with the main unit device is normal, confirm the action of flow switch, confirm the operation status of pump, confirm the visual value on the hydraulic module dial is normal or not, and confirm whether the phase sequence protection, water-lacking protection, overload protection and other functions are normal.
  • Page 17 MCAC-ATSM-2014-11 Hydraulic Module 50Hz (1). Power supply of the unit must be connected (switching-on) strictly on the basis of electric requirements. Please don’t share power lines with other appliances. (2). Please ensure that the unit is reliably grounded, prevent leakage accidents when installing. (3).
  • Page 18 Hydraulic Module 50Hz MCAC-ATSM-2014-11 Attention! Frequently start-up would impact the lifespan of unit. Strongly recommend: When the units started up, don’t frequently start or stop the units. Don’t dump directly if it's out of necessary. 14.7 Commissioning (1). Check whether the unit is well earthed. (2).
