RJ48C‐28I2 and RJ48C‐28BAI2 Jack Interface Panels
CONTENTS
1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. CUSTOMER & TECHNICAL SERVICES
5. WARRANTY & REPAIRS
6. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. GENERAL
1.1 Document Purpose
This document describes the Westell RJ48C (Issue 2) Series of
Jack Interface Panels. An RJ48C jack panel is shown in
Figure 1. See Table 3 for specific model numbers and descrip­
tions.
1.2 Document Status
Revision C of this practice updates Paragraphs 1.3, 2.2.1,
Figure 3, deletes the previous Figure 4, Table 2, and Table 5,
and adds the current Table 2 and Figure 4 through Figure 6.
Revision B of this practice updated all text and drawings which
describe or show the mounting ears (additional holes added).
Revision A replaced 030‐101336 for the models shown in
Table 3 and updated the company contact information. Prac­
tice 030‐101336 replaced practice 057‐017701. Whenever this
practice is updated, the reason will be stated in this paragraph.
1.3 Product Purpose and Description
The RJ48C‐28I2 and RJ48C‐28BAI2 28‐position T1 jack pan­
els provide easy Customer Interface (CI) connections for
operation in 1.544Mbps High‐capacity Digital Services (Hi‐Cap)
applications. Provided at the front of the jack panel are 28
RJ48C jacks for customer connections. At the rear are two,
64‐pin, male, Amphenol connectors for Customer or Network
connections. Two, 64‐pin, female, Amphenol‐type cables are
needed (provided with the RJ48C‐28I2 model only) to inter­
face the panel with the nearby shelf assembly. See Table 3 for
ordering information for the panels and various cables.
1.4 Mounting Location
The jack panel may be mounted in a 19" or 23" relay rack or on
a wall. The panel occupies 2 Rack Units (RUs) or 3.5" of verti­
cal space and is mounted above or below a 31MA228 or
DSA‐2280I3 shelf assembly. It also may be mounted facing the
circuit‐card side or the wire‐side of the shelf assembly.
1.5 Product Features
The jack panel offers the following features.
S
Mounts in a 19" or 23" relay rack (2 RUs) or on a wall
S
Detachable and reversible mounting ears allow wall or rack
mounting, and either flush or projected rack orientations
S
Two, 64‐pin, male connectors at the rear of the panel allow
Customer Interface (CI) or Network Interface (NI) con­
nections to the nearby shelf assembly
ECopyright 2010 Westell, Inc. All rights reserved.
R
200 MECHANICS is a registered trademark of Westell, Inc.
PAGE #
1
1
2
. . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . 4
4
030‐101676 Rev. C, December 2010

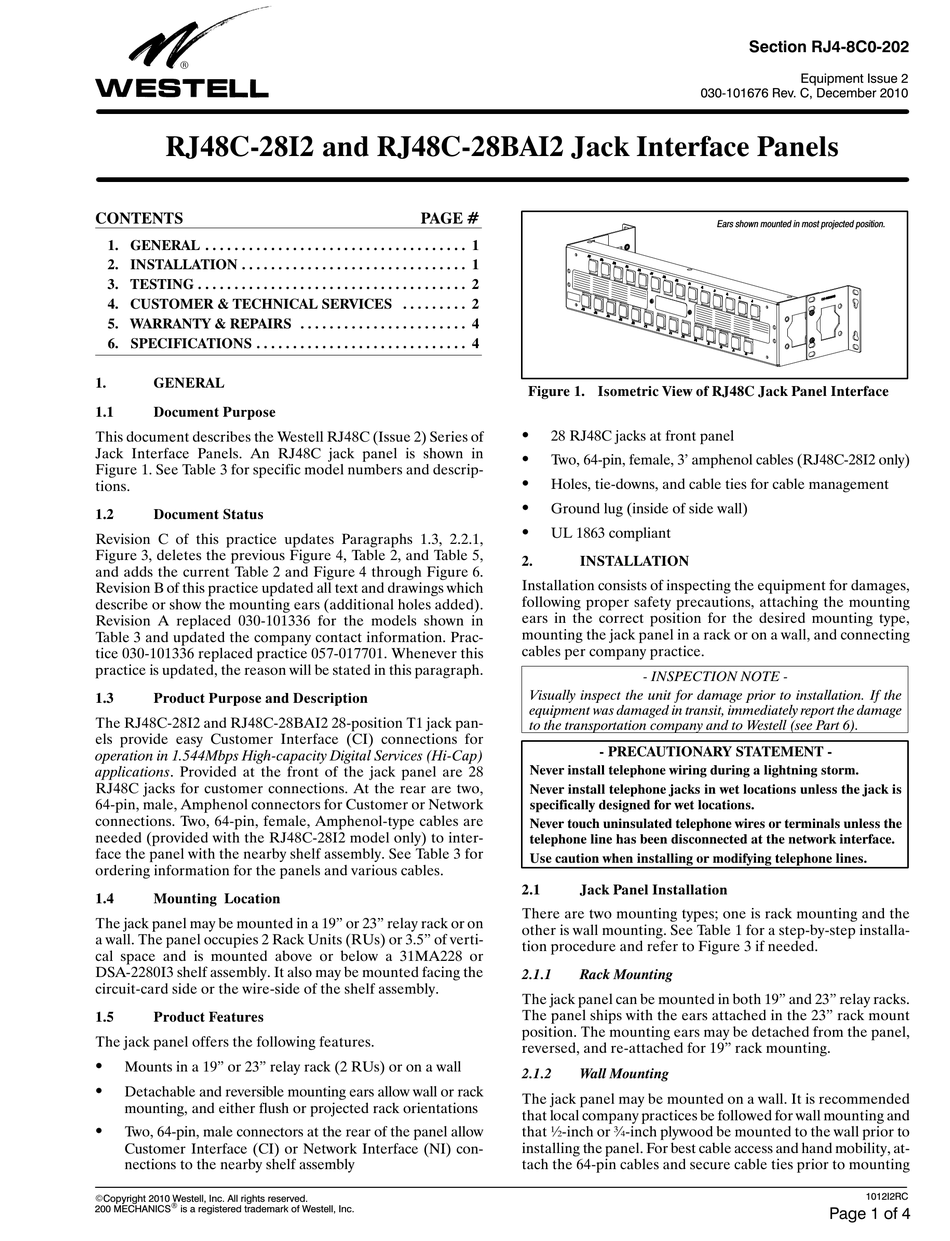

Figure 1. Isometric View of RJ48C Jack Panel Interface
S
28 RJ48C jacks at front panel
S
Two, 64‐pin, female, 3' amphenol cables (RJ48C‐28I2 only)
S
Holes, tie‐downs, and cable ties for cable management
S
Ground lug (inside of side wall)
S
UL 1863 compliant
2. INSTALLATION
Installation consists of inspecting the equipment for damages,
following proper safety precautions, attaching the mounting
ears in the correct position for the desired mounting type,
mounting the jack panel in a rack or on a wall, and connecting
cables per company practice.
‐ INSPECTION NOTE ‐
Visually inspect the unit for damage prior to installation. If the
equipment was damaged in transit, immediately report the damage
to the transportation company and to Westell (see Part 6).
‐ PRECAUTIONARY STATEMENT ‐
Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
Use caution when installing or modifying telephone lines.
2.1 Jack Panel Installation
There are two mounting types; one is rack mounting and the
other is wall mounting. See Table 1 for a step‐by‐step installa­
tion procedure and refer to Figure 3 if needed.
2.1.1 Rack Mounting
The jack panel can be mounted in both 19" and 23" relay racks.
The panel ships with the ears attached in the 23" rack mount
position. The mounting ears may be detached from the panel,
reversed, and re‐attached for 19" rack mounting.
2.1.2 Wall Mounting
The jack panel may be mounted on a wall. It is recommended
that local company practices be followed for wall mounting and
that ½‐inch or ¾‐inch plywood be mounted to the wall prior to
installing the panel. For best cable access and hand mobility, at­
tach the 64‐pin cables and secure cable ties prior to mounting
Section RJ4‐8C0‐202
Equipment Issue 2
Ears shown mounted in most projected position.
1012I2RC
Page 1 of 4
