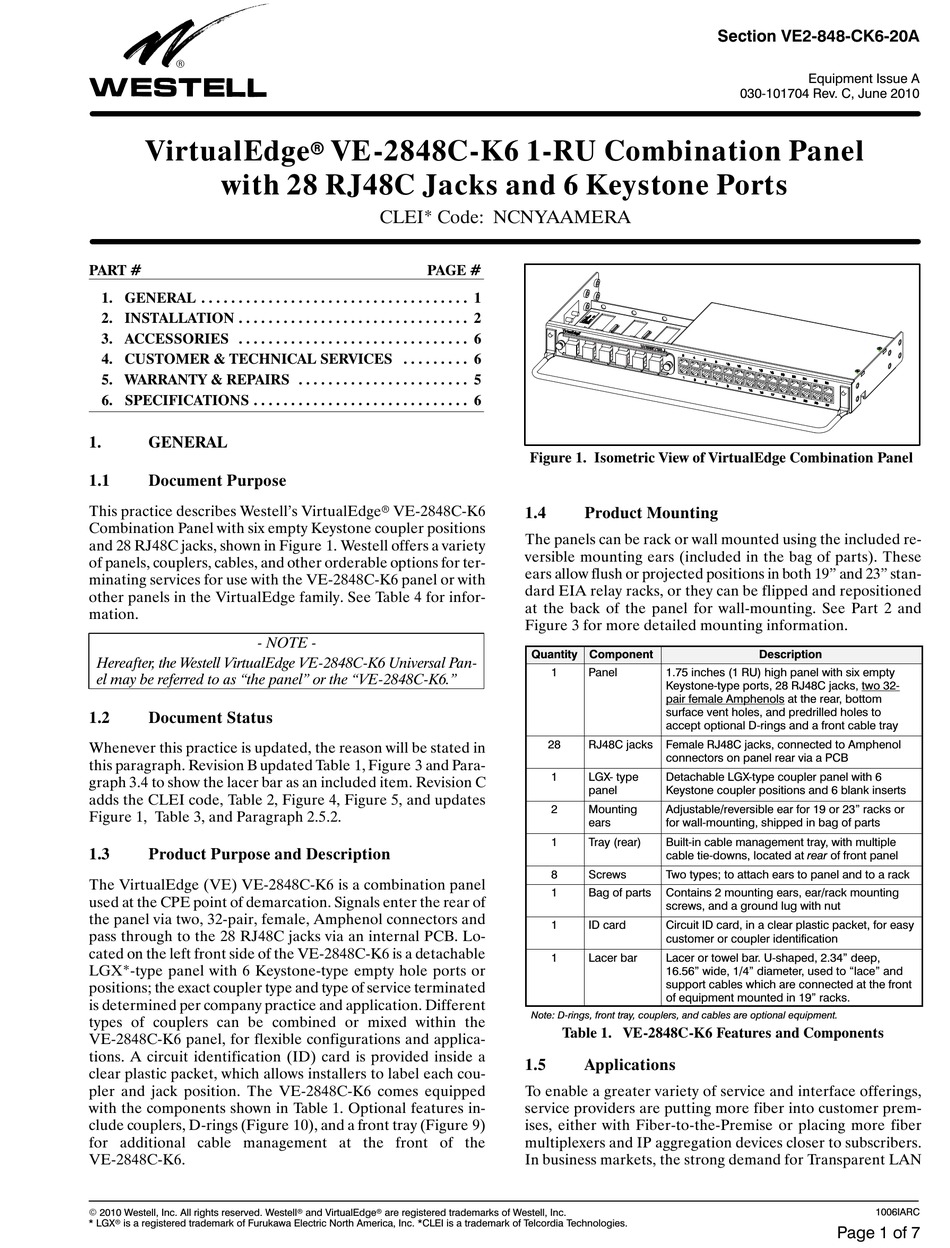

1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. INSTALLATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. CUSTOMER & TECHNICAL SERVICES
5. WARRANTY & REPAIRS
6. SPECIFICATIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This practice describes Westell's VirtualEdger VE-2848C-K6
Combination Panel with six empty Keystone coupler positions
and 28 RJ48C jacks, shown in Figure 1. Westell offers a variety
of panels, couplers, cables, and other orderable options for ter-
minating services for use with the VE-2848C-K6 panel or with
other panels in the VirtualEdge family. See Table 4 for infor-
mation.
- NOTE -
Hereafter, the Westell VirtualEdge VE-2848C-K6 Universal Pan-
el may be referred to as the panel" or the VE-2848C-K6."
1.2
Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. Revision B updated Table 1, Figure 3 and Para-
graph 3.4 to show the lacer bar as an included item. Revision C
adds the CLEI code, Table 2, Figure 4, Figure 5, and updates
Figure 1, Table 3, and Paragraph 2.5.2.
1.3
Product Purpose and Description
The VirtualEdge (VE) VE-2848C-K6 is a combination panel
used at the CPE point of demarcation. Signals enter the rear of
the panel via two, 32-pair, female, Amphenol connectors and
pass through to the 28 RJ48C jacks via an internal PCB. Lo-
cated on the left front side of the VE-2848C-K6 is a detachable
LGX*-type panel with 6 Keystone-type empty hole ports or
positions; the exact coupler type and type of service terminated
is determined per company practice and application. Different
types of couplers can be combined or mixed within the
VE-2848C-K6 panel, for flexible configurations and applica-
tions. A circuit identification (ID) card is provided inside a
clear plastic packet, which allows installers to label each cou-
pler and jack position. The VE-2848C-K6 comes equipped
with the components shown in Table 1. Optional features in-
clude couplers, D-rings (Figure 10), and a front tray (Figure 9)
for additional cable management at the front of the
VE-2848C-K6.
E 2010 Westell, Inc. All rights reserved. Westellr and VirtualEdger are registered trademarks of Westell, Inc.
* LGXr is a registered trademark of Furukawa Electric North America, Inc. *CLEI is a trademark of Telcordia Technologies.
r
VE-2848C-K6 1-RU Combination Panel
CLEI* Code: NCNYAAMERA
PAGE #
1
2
6
. . . . . . . . .
6
. . . . . . . . . . . . . . . . . . . . . . .
5
6
Figure 1. Isometric View of VirtualEdge Combination Panel
1.4
Product Mounting
The panels can be rack or wall mounted using the included re-
versible mounting ears (included in the bag of parts). These
ears allow flush or projected positions in both 19" and 23" stan-
dard EIA relay racks, or they can be flipped and repositioned
at the back of the panel for wall-mounting. See Part 2 and
Figure 3 for more detailed mounting information.
Quantity Component
1
Panel
1.75 inches (1 RU) high panel with six empty
Keystone-type ports, 28 RJ48C jacks, two 32-
pair female Amphenols at the rear, bottom
surface vent holes, and predrilled holes to
accept optional D-rings and a front cable tray
28
RJ48C jacks
Female RJ48C jacks, connected to Amphenol
connectors on panel rear via a PCB
1
LGX- type
Detachable LGX-type coupler panel with 6
panel
Keystone coupler positions and 6 blank inserts
2
Mounting
Adjustable/reversible ear for 19 or 23" racks or
ears
for wall-mounting, shipped in bag of parts
1
Tray (rear)
Built-in cable management tray, with multiple
cable tie-downs, located at rear of front panel
8
Screws
Two types; to attach ears to panel and to a rack
1
Bag of parts
Contains 2 mounting ears, ear/rack mounting
screws, and a ground lug with nut
1
ID card
Circuit ID card, in a clear plastic packet, for easy
customer or coupler identification
1
Lacer bar
Lacer or towel bar. U-shaped, 2.34" deep,
16.56" wide, 1/4" diameter, used to lace" and
support cables which are connected at the front
of equipment mounted in 19" racks.
Note: D-rings, front tray, couplers, and cables are optional equipment.
Table 1. VE-2848C-K6 Features and Components
1.5
Applications
To enable a greater variety of service and interface offerings,
service providers are putting more fiber into customer prem-
ises, either with Fiber-to-the-Premise or placing more fiber
multiplexers and IP aggregation devices closer to subscribers.
In business markets, the strong demand for Transparent LAN
Section VE2-848-CK6-20A
Equipment Issue A
030-101704 Rev. C, June 2010
Description
1006IARC
Page 1 of 7
