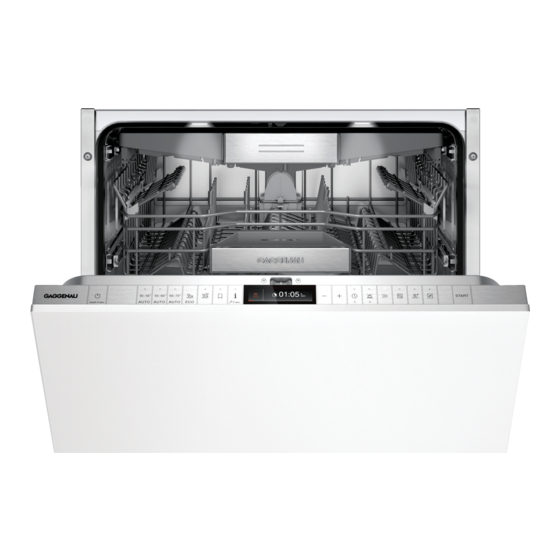

- Page 1 Gaggenau User manual DF270400F Dishwasher...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Features......... 22 General information...... 4 Top basket ........ 22 Intended use........ 4 Bottom basket ........ 24 Restriction on user group.... 4 Cutlery basket ........ 25 Safe installation ........ 5 Cutlery drawer ........ 25 Safe use ........... 6 Etagere ........... 27 Damaged appliance ...... 8 Folding prongs ....... 27 Risk to children ........ 8 Baking sheet spray head .... 27... - Page 3 Technical specifications.... 60 Setting additional functions .... 38 Information regarding Free and Setting timer programming .... 38 Open Source Software .... 61 Starting the programme .... 39 Declaration of Conformity .... 61 Interrupting programme .... 39 Terminate programme.... 39 Display programme information.. 39 Switching off appliance .... 39 Basic settings........
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information Read this instruction manual carefully. Only this will ensure you ¡ use the appliance safely and efficiently. Keep the instruction manual and the product information safe ¡... -
Page 5: Safe Installation
Safety en Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. When installing and connecting the appliance, follow the in- ▶ structions in the manual and installation instructions. WARNING ‒ Risk of electric shock! Improper installation is dangerous. -
Page 6: Safe Use
en Safety Only use adapters approved by the manufacturer. ▶ WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. If built-under or integrable appliances are not in a cavity so ▶ that one side is accessible, the hinge area must be covered at the side. - Page 7 Safety en WARNING ‒ Risk of injury! Leaving the appliance door open may result in injury. ¡ Only open the appliance door to load or unload tableware ▶ in order to prevent accidents, e.g. through tripping. Do not sit or stand on the appliance door when open. ▶...
-
Page 8: Damaged Appliance
en Safety Damaged appliance Follow the safety instructions if the appliance is damaged. WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is danger- ¡ ous. Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured sur- ▶... -
Page 9: Safety Systems
Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. With redundant appliances, unplug the power cord. Then ▶ cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close. -
Page 10: Preventing Material Damage
en Preventing material damage Only use the water hoses sup- ▶ Preventing material damage Preventing material dam- plied with the appliance or genu- ine spare hoses. Never re-use water hoses that ▶ have been used before. Preventing material damage Safe installation If the water pressure is too high or ¡... -
Page 11: Childproof Lock
Childproof lock en So as not to scratch the finish ▶ Environmental protection and saving energy Environmental protection on the appliance, do not use sponges with a rough surface or and saving energy abrasive cleaning agents. To prevent corrosion, do not use Environmental protection and saving energy ▶... -
Page 12: Zeolith Drying
en Environmental protection and saving energy Zeolith drying Sensors The appliance features a Zeolith con- The sensors adjust the programme tainer. Zeolith drying lets you save sequence and strength in the auto- energy. matic programmes depending on the Zeolite is a mineral that can store level and type of soiling. -
Page 13: Installation And Connection
Installation and connection en Check the Scope of supply and Installation and connection Installation and connec- the condition of the appliance. tion Consult the installation instructions for the installation dimensions re- Installation and connection quired. Scope of supply Make the appliance level using the height-adjustable feet. -
Page 14: Drinking Water Connection
en Installation and connection The connection data for the appli- Drinking water connection ance can be found on the rating Connect your appliance to a drinking plate. water connection. Check that the mains plug is inser- ted properly. Installing the drinking water connection Note If you are replacing the appliance,... -
Page 15: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number" → Page 60. -
Page 16: Controls
en Familiarising yourself with your appliance "Detergent" → Page 33 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 24 Bottom basket Dispenser for special salt Add the special salt to the dispenser for special salt. → "Water softening system", Page 30 Lower spray arm The lower spray arm washes the tableware in the bot- tom basket. - Page 17 Familiarising yourself with your appliance en "Switching on the appliance" → Page 38 ON/OFF button and reset button "Switching off the appliance" → Page 39 "Terminating the programme" → Page 39 "Programmes" → Page 19 Programme buttons Info button If you press , the display shows information about selected programmes, basic settings and additional functions.
- Page 18 en Familiarising yourself with your appliance Display The display shows information about pro- grammes, basic settings or additional functions. You can change the basic settings via the display and the setting buttons. → "Changing basic settings", Page 41 Display The display shows information about pro- grammes, basic settings or additional functions.
-
Page 19: Programmes
Programmes en Programmes Programmes You can find an overview of the pro- ning time will change if the rinse aid Programmes grammes that can be selected here. system is switched off or rinse aid Different programmes, which can be needs to be added. found on the control panel of your The consumption values can be appliance, are available depending... -
Page 20: Information For Test Institutes
en Programmes Programme Programme sequence Additional func- tions Tableware: Most economical pro- → "Additional ¡ Cleaning mixed table- gramme: Eco 50° ware and cutlery. Pre-Rinse ¡ functions", Level of soiling: Page 21 Cleaning 50 °C ¡ Removing common ¡ Intermediate rinse ¡ household food remnants ¡... -
Page 21: Additional Functions
Additional functions en Saving Personalisation function Additional func- on the appliance tion Press . Switch on with mixed ¡ loads containing table- Press the right programme button. Intensive ware with different soil- → "Programmes", Page 19 ing levels, e.g. place Press the button for the relevant very soiled pots and additional function. -
Page 22: Features
en Features Press in the levers on the right and Features Features left on the outside of the basket. You can find an overview of the pos- Features sible features of your appliance and how to use them here. These features depend on the model of your appliance. - Page 23 Features en Lift the basket forwards out of the Lift the basket slightly and guide catches . the rear detent pins into the rear locking hooks of the guide rails . Lower the basket and press the front detent pins into the notches ...
-
Page 24: Bottom Basket
en Features Removing the bottom basket Bottom basket Pull the bottom basket right out. Arrange pans and plates in the bot- Lift the basket out of the front hold- tom basket. ers and pull forwards slightly. Cutlery basket Lift the basket out of the rear hold- ers. -
Page 25: Cutlery Basket
Features en To fold down the front prongs, Cutlery basket push the lever forwards and fold Arrange cutlery in the cutlery basket, down the prongs . always without sorting it and with the sharp points downwards. If you want to return the cutlery drawer to the original position, fold Cutlery drawer the side shelf back up until it clicks... - Page 26 en Features Lift the cutlery drawer forwards out Insert the cutlery drawer . of the catches . Observe the position of the detent pins. Lower the cutlery drawer and pull out. Lift the cutlery drawer slightly and guide the lower detent pins into the lower locking hooks of the guide rails ...
-
Page 27: Etagere
Features en Push the lever forwards and fold Etagere down the prongs . Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. To use the prongs again, fold them back up. -
Page 28: Optional Extra Cleaning Area
en Features Inserting baking sheet spray head Optional extra cleaning area Use the baking sheet spray head in- Use the Optional extra cleaning area stead of the top basket to clean large in the top basket to clean all types of trays, grilles and plates. -
Page 29: Basket Heights
Features en Pull out the top basket. Place the Optional extra cleaning area in the top basket and lock in Pull the tab on the Optional extra position . cleaning area up and forwards . Check that the mounts are in the correct position. -
Page 30: Before Using For The First Time
en Before using for the first time You can change the settings for Before using for the first time Before using for the initial start-up and other "Basic set- tings" → Page 40 on the appli- first time ance at any time or use the Home Connect app on your mo- Configure the settings for initial start- Before using for the first time... -
Page 31: Setting The Water Softening System
Water softening system en Note: Set the water hardness determ- ter hardness: the higher the water ined on your appliance. hardness, the greater the amount of special salt required. → "Setting the water softening sys- tem", Page 31 ATTENTION! With a water hardness of 0 - 8 °E Detergent may damage the water ¡... -
Page 32: Switching Off The Water Softening System
en Rinse aid system Place the lid back on the dis- Rinse aid system Rinse aid system penser and turn to close. You can use the rinse aid system Rinse aid system Switching off the water and rinse aid to get tableware and softening system glasses rinsed perfectly without marks. -
Page 33: Setting The Amount Of Rinse Aid
Detergent en Spilled rinse aid can cause ex- Press repeatedly until the display cessive frothing during the wash shows "Rinse aid dispenser". cycle. Press repeatedly until the Close the lid of the dispenser for display shows 0. rinse aid. To save the settings, press The lid clicks into position. -
Page 34: Unsuitable Detergents
en Detergent Combined detergent Detergent Description Besides conventional separate deter- Powder deter- Powder detergent is re- gents, a number of products are gent commended for shorter available with additional functions. "Programmes" → Page 19. These products contain not only de- The dosage can be adjus- tergent but also rinse aid and salt re- ted to the level of soiling. -
Page 35: Adding Detergent
Detergent en pletely dispense with certain sub- Add the detergent to the dry deter- stances. The cleaning effect may gent dispenser. be restricted here. Set the rinse aid and the water ¡ 50 ml softening system to the separate 25 ml detergent or combined detergent 15 ml in use. -
Page 36: Tableware
en Tableware Close the lid of the detergent dis- Damage to glass and table- penser. ware Avoid damage to glass and table- ware. Cause Recommendation The following table- Only put tableware in ware is not dish- the dishwasher if it is washer-safe: marked as dish- Items of cutlery... -
Page 37: Arrange Tableware
Tableware en To save resources, do not pre- Cause Recommendation rinse tableware under running wa- The water temperat- Select a programme ter. ure of the programme with lower temperat- Observe the following when arran- is too high. ures. ging tableware: After the programme –... -
Page 38: Removing Tableware
en Basic operation Removing tableware Setting a programme To adjust the wash cycle to the soil- WARNING ing level of the tableware, select a Risk of injury! suitable programme. Hot tableware can cause burns to the Press the right programme button. skin. -
Page 39: Starting The Programme
Basic operation en Starting the programme Terminate programme Press To end a programme early or to ▶ switch from a programme that has The programme has ended when already started, you will need to can- the display shows "Finished!". cel it first. Notes Press for approx. -
Page 40: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Time setting 00:00 - 24:00 Set the current time. -
Page 41: Changing Basic Settings", Page
Basic settings en Basic setting Selection Description Eco forecast Switch EcoCheck on or off. When selecting the programme, the average wa- ter consumption and energy consumption is briefly shown on the display. Emotion Light Switch the interior lighting of the appliance on or On via main switch off. -
Page 42: Cleaning Products
en Cleaning and servicing Holding down will Select the programme with the change the set values in 10-minute highest temperature. steps. → "Programmes", Page 19 To save the settings, press "Start the programme without approx. 3 seconds. tableware." → Page 39 Cleaning products Cleaning and servicing Cleaning and servicing Only use suitable cleaning products to clean your appliance. -
Page 43: Filter System
Cleaning and servicing en Phase Removal of Detergent Placement Food remnants and de- Machine cleaner Detergent dispenser posits To ensure optimum cleaning perform- Activate the "Optional extra clean- ¡ ance, the programme doses the de- ing area" → Page 28. tergents independently of each an- Remove any coarse soiling in the other during the relevant cleaning interior with a damp cloth. - Page 44 en Cleaning and servicing Press the locking catches Coarse filter gether and lift the coarse filter out . Cleaning filters Soiling in the dishwashing water may block the filters. After each wash check the filters for residue. Turn the coarse filter anticlockwise and remove the filter system ...
-
Page 45: Cleaning Spray Arms
Cleaning and servicing en Cleaning spray arms Limescale and soiling in the dish- washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove . Pull up the lower spray arm to re- move. -
Page 46: Troubleshooting
en Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 47: Error Code / Fault Display / Signal
Troubleshooting en Fault Cause Troubleshooting Appliance door does not Appliance door and door Clean the appliance door and door ▶ open. seal are soiled. seal with a damp cloth and a little washing-up liquid. Automatic door opening is Wait one second after closing the ▶... - Page 48 en Troubleshooting Fault Cause Troubleshooting E:3200 or indicator for wa- Remove the filter from the supply ter supply lights up. hose Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back Check the water connection for leaks.
-
Page 49: Washing Results
Troubleshooting en Fault Cause Troubleshooting A different error code ap- A technical fault is present. Press . pears in the display window. Unplug the appliance or switch off the fuse. E:0100 to E:9010 Wait at least 2 minutes. Insert the mains plug of the appli- ance in a socket or switch on the fuse. - Page 50 en Troubleshooting Fault Cause Troubleshooting Tableware is not dry. Use a different combined detergent with a better drying performance. Activate "Extra Dry" → Page 40. Extra Dry not activated to im- ▶ prove drying performance. Tableware removed too Wait until the programme ends. early or drying process not Only remove tableware 30 minutes yet ended.
- Page 51 Troubleshooting en Fault Cause Troubleshooting Remnants of food on table- Washing programme selec- Select a more intensive washing ▶ ware. ted too weak. programme. → "Programmes", Page 19 Adjust the sensitivity of the sensors. ▶ → "Sensors", Page 12 Tableware has been pre- Only remove large remnants of food ▶...
- Page 52 en Troubleshooting Fault Cause Troubleshooting Water marks on plastic Due to laws of physics Select a more intensive pro- ▶ parts. droplet formation on plastic gramme. → "Programmes", Page 19 surfaces is unavoidable. After drying water marks are Position tableware at an angle. ▶...
- Page 53 Troubleshooting en Fault Cause Troubleshooting Tea residue or lipstick marks Washing temperature is too Select a programme with a higher ▶ on tableware. low. washing temperature. → "Programmes", Page 19 Too little detergent is being Use a suitable "Detergent " ▶ → Page 33 and follow the manufac- used or is unsuitable.
- Page 54 en Troubleshooting Fault Cause Troubleshooting Plastic parts are discol- Washing temperature is too Select a programme with a higher ▶ oured. low. washing temperature. → "Programmes", Page 19 Tableware has been pre- Only remove large remnants of food ▶ cleaned too intensely. The and do not prerinse tableware.
-
Page 55: Information On Display Panel
Troubleshooting en Fault Cause Troubleshooting Rust spots on cutlery. Cutlery is not sufficiently Use rust-resistant tableware. ▶ rust-resistant. Knife blades are often more severely af- fected. Cutlery may also rust if Do not wash rusting items. ▶ washed together with rust- ing items. -
Page 56: Malfunctions
en Troubleshooting Malfunctions Fault Cause Troubleshooting Clean the "Filters" → Page 44. Water is left in the appliance Filter system or area under at the end of the pro- the filters is blocked. Clean the "Wastewater pump" gramme. → Page 58. Programme has not yet Wait until the programme ends or ▶... -
Page 57: Mechanical Damage
Troubleshooting en Mechanical damage Fault Cause Troubleshooting Appliance door cannot be Door lock has been activ- Close the appliance door with ▶ closed. ated. greater force. Door cannot be closed due Check whether the appliance has ▶ to installation method. been installed properly. When closed, the appliance door, its decor or attached parts should not knock against adjacent cabin-... -
Page 58: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 59: Protect Appliance From Frost
Customer Service en Protect appliance from frost Disposing of old appliance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 60: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
en Technical specifications With any warranty claims, we will from water damage, the appliance make sure that your appliance is re- must be connected to the power paired by trained after-sales techni- supply. cians using genuine spare parts, in- The liability guarantee is valid for ¡... - Page 61 (0.5 bar) spective appliance. Max. 1 MPa ¡ (10 bar) Declaration of Conformity Inlet rate Min. 10 l/min Gaggenau Hausgeräte GmbH hereby Water temperature Cold water. declares that the appliance with Hot water max.: 60 °C Home Connect functionality meets Capacity 13 place settings the essential requirements and other...
