Quick Start Guide
Model 2900 System Manual
Thunder Scientific Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2900 and is the answer not in the manual?

Questions and answers

Related Manuals for Thunder Scientific 2900

Summary of Contents for Thunder Scientific 2900

  • Page 1 Quick Start Guide Model 2900 System Manual Thunder Scientific Corporation...

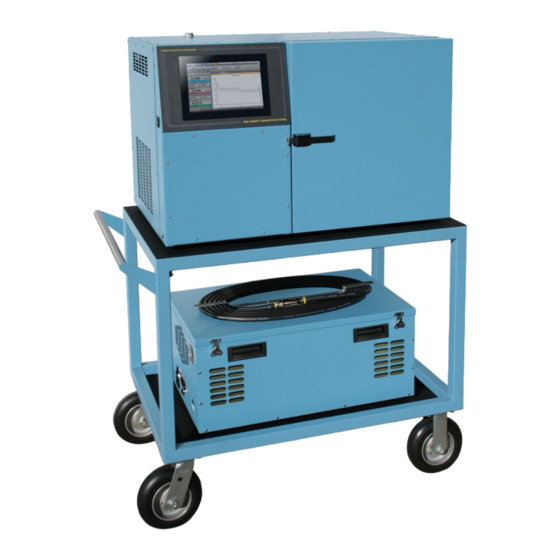

  • Page 2 Model 2900 Humidity Generation System Document #SG2900 - Edition 1.8 Quick Start Guide...

  • Page 3: Table Of Contents

    Generating and Shutting down ............... 18 2.13.7 Power-Off ..................... 19 2.13.8 Set Date and Time ................. 20 2.13.9 Help ...................... 21 Reference Drawings 18D29901-2,3 &4 + 18D29909-1, 2 Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 4: Getting Started

    ETTING TARTED This section will provide the user with information about the Model 2900 humidity generator, where to obtain technical support, software license agreement, specifications, uncertainty, facility requirements and installation. Following sections will provide further details on how to use and operate the Model 2900 generator using the ControLog software.

  • Page 5: Notice

    "as is" basis and the entire risk as to their quality and performance rests with the user. Thunder Scientific Corporation shall not be liable for any incidental or consequential damages in connection with or arising out of the furnishing, use, or performance of the examples, procedures or program.

  • Page 6: Safety Symbols

    Table 1-1 2.4 T ECHNICAL UPPORT If the user requires assistance with any aspect of the 2900 Humidity Generating System or the ControLog application, technical support can be obtained by contacting Thunder Scientific Corporation by any of the following means: Web: www.ThunderScientific.com...
  • Page 7 Should you have any questions concerning this Agreement, or if you desire to contact TSC for any reason, please write: Thunder Scientific Corporation, 623 Wyoming NE, Albuquerque, NM 87123 Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 8: Warranty

    2.6 W ARRANTY Thunder Scientific Corporation (TSC) warrants, to the Buyer, the Product manufactured by TSC to be free of defects in material and workmanship under normal use and service and to be free from inadequate mechanical design when operated within the specified design limitations for a period of one year from date of acceptance.

  • Page 9: Specifications

    The system will limit mass flow rate to 20 L/min for %RH greater than 95. Using glycol/water as the temperature heat transfer fluid from -10 to 72 °C. Note: the 2900 can only operate for a finite amount of time at or below 0 °C Temperature Control Stability is defined as the standard deviation over a 10-minute period, as measured by the saturation temperature control sensor after being at point for 60 minutes.

  • Page 10: Uncertainty

    Chamber pressure at 1 atmosphere, Uncertainty values represent an expanded uncertainty using a coverage factor, k=2, at an approximate level of confidence of 95%. Uncertainty is not specified at saturation temperatures below 0 °C or at flow rates below 10 L/min. Uncertainty is based on the worst-case value from the 2900 uncertainty analysis.

  • Page 11: Facility Requirements

    500 hours of use depending upon the temperature and humidity at which the generator is operated (reference section 13.3.4). During operation near ambient temperature and 50% RH, one gallon should last for approximately 200 hours. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 12: Installation

    4. Remove polyethylene covering from unit. 5. Inspect for any visible damage. 6. Remove any/all accessory boxes. 7. Using forklift or another suitable lifting device, lift unit from skid and place on the 2900 cart or instrument bench. CAUTION! BEFORE APPROACHING THE EQUIPMENT WITH THE FORKLIFT, VISUALLY LOCATE ANY HARDWARE WHICH MIGHT PROJECT INTO THE PATH OF THE FORKS.

  • Page 13: Reservoir Initial Filling Procedure

    – at the 2900. Adjust the 2900’s internal pressure regulator (REG) to 10 psiG below the supply pressure, but never above 150 psiG. For example, if the supply pressure indicates 165 psiG then adjust the internal pressure regulator to 150 psiG. If the supply pressure indicates 155 psiG then adjust the internal pressure regulator to 145 psiG (10 psiG below).

  • Page 14: Quick Start

    When the Remote/Manual switch is in the Remote position the ACS compressor will not – run when first switched to ON. The compressor is remotely controlled by the 2900 and will not start until the user requests an operation that requires supply pressure.

  • Page 15: Loading Screen

    After the system boots the generator will show a loading screen which will indicate the status of the loading process and will also show the software version of the generator. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 16: Controlog Screen

    Upon completion of the loading process the generator will show the main ControLog page and a dialog showing the status of establishing communication with the generator. Once communication with the generator is established the generator’s parameter and data tabs will be displayed. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 17: Control Parameters

    The Parameter Tab Group is located on the left side of the application and contains a parameter tab for each connected device. The 2900 Parameters contain all the control and measurement parameters critical to the operation of the humidity generator.
  • Page 18 Enter the new value into the Setpoint Entry box and select Ok. Notice that the Percent Relative Humidity setpoint value updates to the new value and the actual values begin moving toward the new setpoint. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 19: Control Modes

    Parameter Name, the Actual Value and the Unit the value is displayed in. 2.13.5 Control Modes The user can change the operating mode of the 2900 by selecting from the drop-down menu within the Mode group on the Generator’s Operation menu tab.

  • Page 20: Generating And Shutting Down

    Selecting Shutdown from the run menu commands the 2900 to shutdown. The 2900 may be shutdown whenever it is generating. When stopped, all system functions shutdown, pressure is vented, and the idle Control/Display screen is shown. During this idle time, when the 2900 is stopped, gas is not flowing through the generator.

  • Page 21: Power-Off

    The user is safe to switch the power switch to OFF once the PC has shut down completely (display goes blank). CAUTION! TURNING OFF POWER WITHOUT SHUTTING DOWN THE SYSTEM FIRST CAN CORRUPT THE EMBEDDED WINDOW SYSTEM DRIVE. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 22: Set Date And Time

    Start by long pressing or right clicking anywhere within the status bar. A long press is when you touch and hold the screen. Long enough for a square selection box to appear. Releasing will open the status bar context menu. Model 2900 System Manual – Document #SG2900 - Edition 1.8 September 2019...

  • Page 23: Help

    Select “Set Date and Time” from the context menu to open the system Date and Time dialog. 2.13.9 Help The Help Menu located on the upper right side of the screen, allows the user to open the 2900 System Manual.
  • Page 24 DO NOT SCALE PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION 2900 Components TOLERANCES FURRY 08/05/2018...
  • Page 25 DO NOT SCALE PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION 2900 Components TOLERANCES FURRY 08/05/2018...
  • Page 26 DO NOT SCALE PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION 2900 Components TOLERANCES FURRY 08/05/2018...
  • Page 27 DO NOT SCALE PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION 2900 Components TOLERANCES FURRY 08/05/2018...
  • Page 28 PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION Fluid Fill / Drain Instructions TOLERANCES FURRY...
  • Page 29 PROPRIETARY NOTICE THIRD ANGLE PROJECTION FROM DRAWING THIS DRAWING AND INFORMATION CONTAINED 623 Wyoming S.E. Albuquerque, NM 87123 WITHIN IS PROPRIETARY TO THUNDER SCIENTIFIC AND CANNOT BE COPIED OR REPRODUCED WITHOUT SPECIFIC WRITTEN PERMISSION Fluid Fill / Drain Instructions TOLERANCES FURRY...
