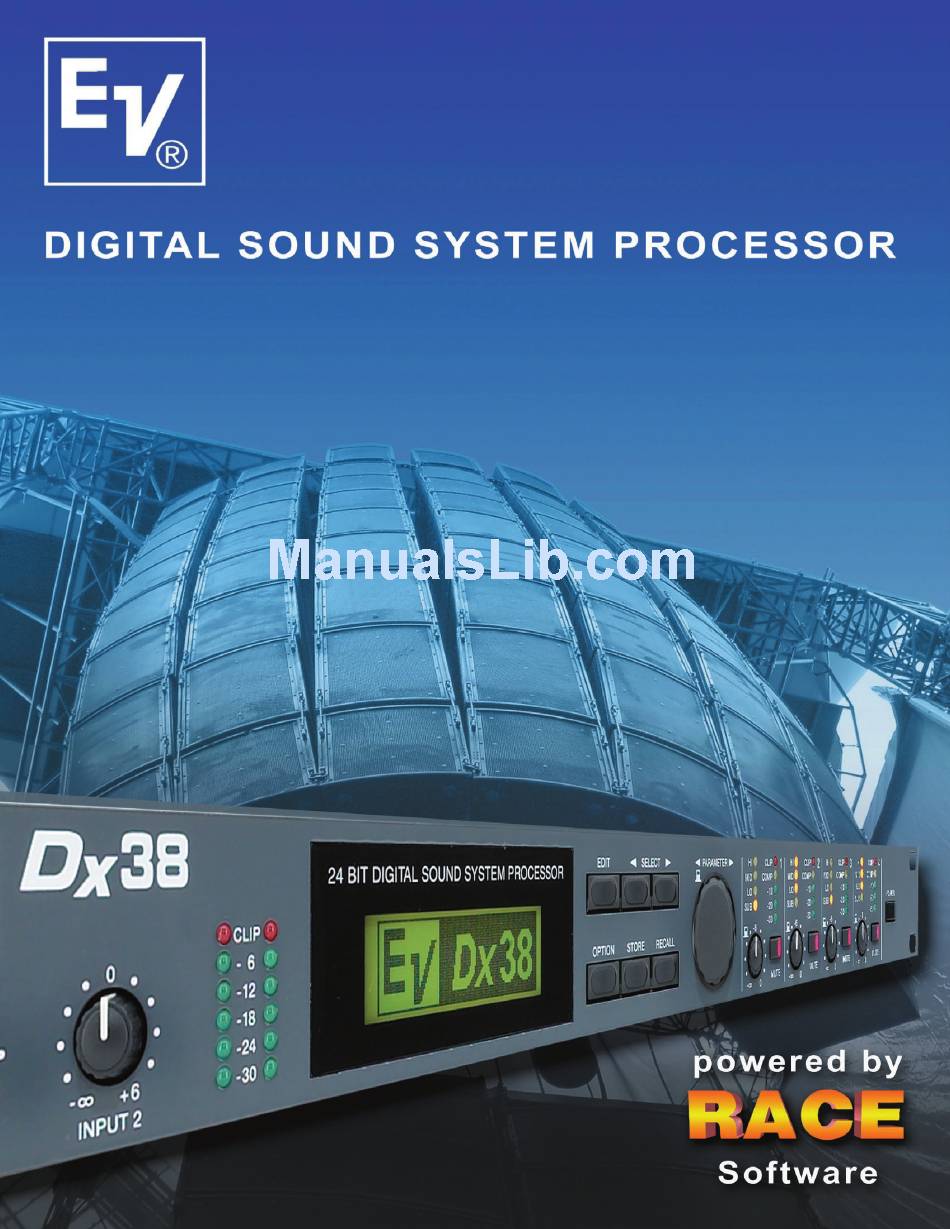

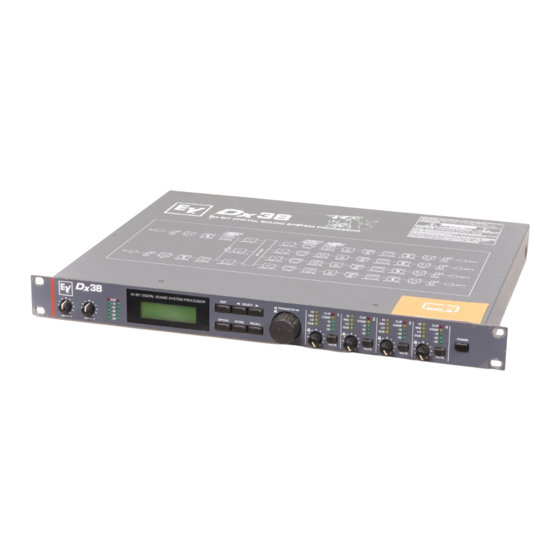

  • Page 1 Dx38...
  • Page 2 RACE software is EV’s professional audio solution for modeling the response of loudspeaker systems both simple and complex within specific venue measurements, and for digitally control- ling such systems through the Dx38. RACE enables engineers to seamlessly integrate room influence, speaker positioning, and parameter settings, and RACE system presets guarantee a solid, accurate basis from which to begin system tuning.

  • Page 3: Configuration Window

    (Sub, Low, Mid, Hi, or any combination) for quick output assignment. The output level control pots are push pots that send dedicated output information directly to the display for editing. And the Dx38 can be locked to prevent unauthorized changes.
  • Page 4 RACE thus displays the system’s acoustical response — including all parameters used on the Dx38, but without any room influence — in realtime. The Speaker window works exclusively with EV speaker systems and helps optimize the use of all digital parameter functions.
  • Page 5 The output meter display works like the whole editor in realtime. Level control and mute are available for each channel. You don't need a PC to use the Dx38! The Dx38’s parameters can all easily be edited on the front control panel. Once you...
  • Page 6 Setup Mode. RACE Networks Control up to 124 Outputs With the Dx38’s optional RS-485 interface, RACE software permits control of large, complex speaker systems of up to 124 outputs. Access to complex net- works is provided either by exchanging the factory-installed RS-232 interface with an optional RS-485 interface, or by connecting a DCN-485 converter (RS- 232 to RS-485) to the PC’s COM port.
  • Page 7 Placement Window: Precise Speaker Positioning RACE’s Placement window allows the user to optimize speaker positioning relative to a key listening position (the “listener’s head”). The Placement feature combines response data from preset RACE speaker files (as measured from each enclosure’s center grille) with the system’s physical geometry (for example, with subs on the floor and flying top cabinets) to display the system’s acoustic response...

  • Page 8: Rear View

    Singapore: Telex Pte. Ltd. 3015A Ubi Road 1, 05-10 Kampong Ubi Industrial Estate, Singapore 408705, Phone: +65 6746-8760, Fax: +65 6746-1206 Pro Audio Group • Telex Communications, Inc. • 12000 Portland Avenue South • Burnsville, Minnesota 55337 • USA Tel: 952-884-4051 • Fax: (USA) 952-884-0043 (INTL) 952-887-9212 • Web: www.electrovoice.com 90-250 V AC (50-60 Hz)
