Type: Modular Blast Chiller
Model: AP26BC-2T

Standard Features

PERFORMANCE:

• Blast chilling (soft or hard) lowers the food core temperature from 160°F to
38°F within 90 minutes.
• Chilling times will vary somewhat, depending on the food quantity, initial
temperature, density, moisture content, specific heat, and type of container.
• The airflow has a high velocity, indirect pattern designed to cool all levels at
identical rates.
• Time/temperature chilling rates meet or exceed all FDA, NSF, and state
regulations.

TOUCHSCREEN CONTROLS:

• 7" glove-safe capacitive touchscreen
• Easily readable from across the kitchen
• User friendly interface and quick access to all functions
• Quick-start button for one touch operation
• Capable of automated defrost and sanitation cycles
• HACCP logger, data download via optional Wifi card or USB port
• Available cycles - Soft Chill, Hard Chill, Quick Start
• Two core tempera ture probes are provided

ASSEMBLY:

• Unit manufactured using cam-lock insulated panels that are sized for easy
assembly and ingress
• Internal electrical connections done via quick connect male-female
connectors to minimize field wiring

CABINET CONSTRUCTION:

• Constructed of polished type 304 stainless steel,
• 4" of CFC-free, high density polyurethane insulation.
• Fully rounded interior corners
• Removable magnetic door gasket.
• The cabinet floor is a 7 /8" thick insulated panel with NSF cove
• Integral 2" long ramp
• Clearance: 15" at the top cabinet for service. 30.5" at the front for door
opening.

REFRIGERATION SYSTEM:

• Refrigeration system is complete with all components including controls,
evaporator, TXV and solenoid valves, and blower system
• E-coated (electro-deposition coated) multiple circuits evaporator designed
specifically for blast chilling operation
• Wash-down type motorized impeller fans with sealed ball bearing and
overload protection
• Hinged swing out vent panel for easy evaporator cleaning

Warranty

The warranty covers all parts found to be defective and the labor required to
replace them for a period of one year from the date of shipment.
Warranty excludes food probes.
5800 SE 78th St. Ocala, FL 34472-3412
T: 1.800.327.3015 • 352.245.7055
www.americanpanel.com
Project Name: _________________________________
Item #: _______________________________________
Quantity: _____________________________________

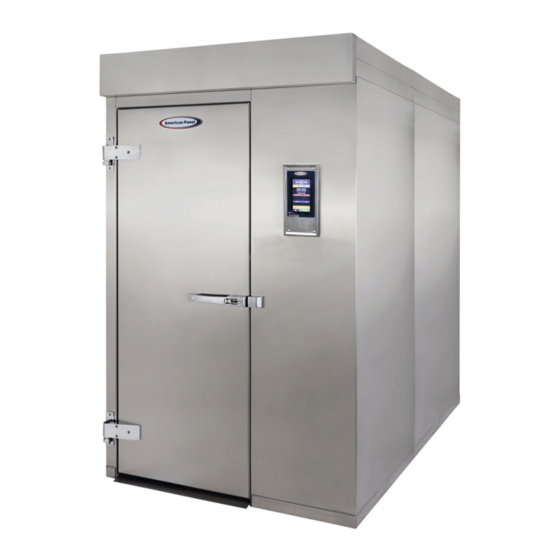

Overview: American Panel's modular series of blast chillers and shock
freezers make site restrictions a thing of the past. These units are assembled
in the field, the same way a typical walk-in is erected. No more wondering
how you're going to get that large piece of equipment through the door. The
modular series also features a consolidated evaporator fan assembly. This
places all of the components within the cabinet on one side, which greatly
reduces the overall footprint of the unit. American Panel quality and precision
in a flexible format to fit your needs. 7" glove safe capacitative touchscreen
control allows for simple 3 step control, or use the customizable quick-start
button for one touch operation.

Capacity

Up to two mobile racks (not included), maximum dimensions of
26"W x 36"D x 73.5"H.

Product Yield

520 lbs. - 160 - 38˚F in 90 minutes
600 lbs. - 160 - 38˚F in 120 minutes

Certifications

AP26BC-2T_Spec 2/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HURRICHILL AP26BC-2T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Panel HURRICHILL AP26BC-2T

  • Page 1 • Fully rounded interior corners places all of the components within the cabinet on one side, which greatly reduces the overall footprint of the unit. American Panel quality and precision • Removable magnetic door gasket. in a flexible format to fit your needs. 7” glove safe capacitative touchscreen •...
  • Page 2 Controller Soft Chilling: The air temperature is held in the range of 28°F to ADDITIONAL FEATURES: 35°F, ideal for delicate food items. The chilling cycle is completed when the food core temperature reaches 38°F. Thawing (Optional): Not available on AP26BC-2T. Hard Chilling: The air temperature is lowered to and held within Holding: At the end of any cycle, the unit will automatically switch a range of 10°F to 20°F.
