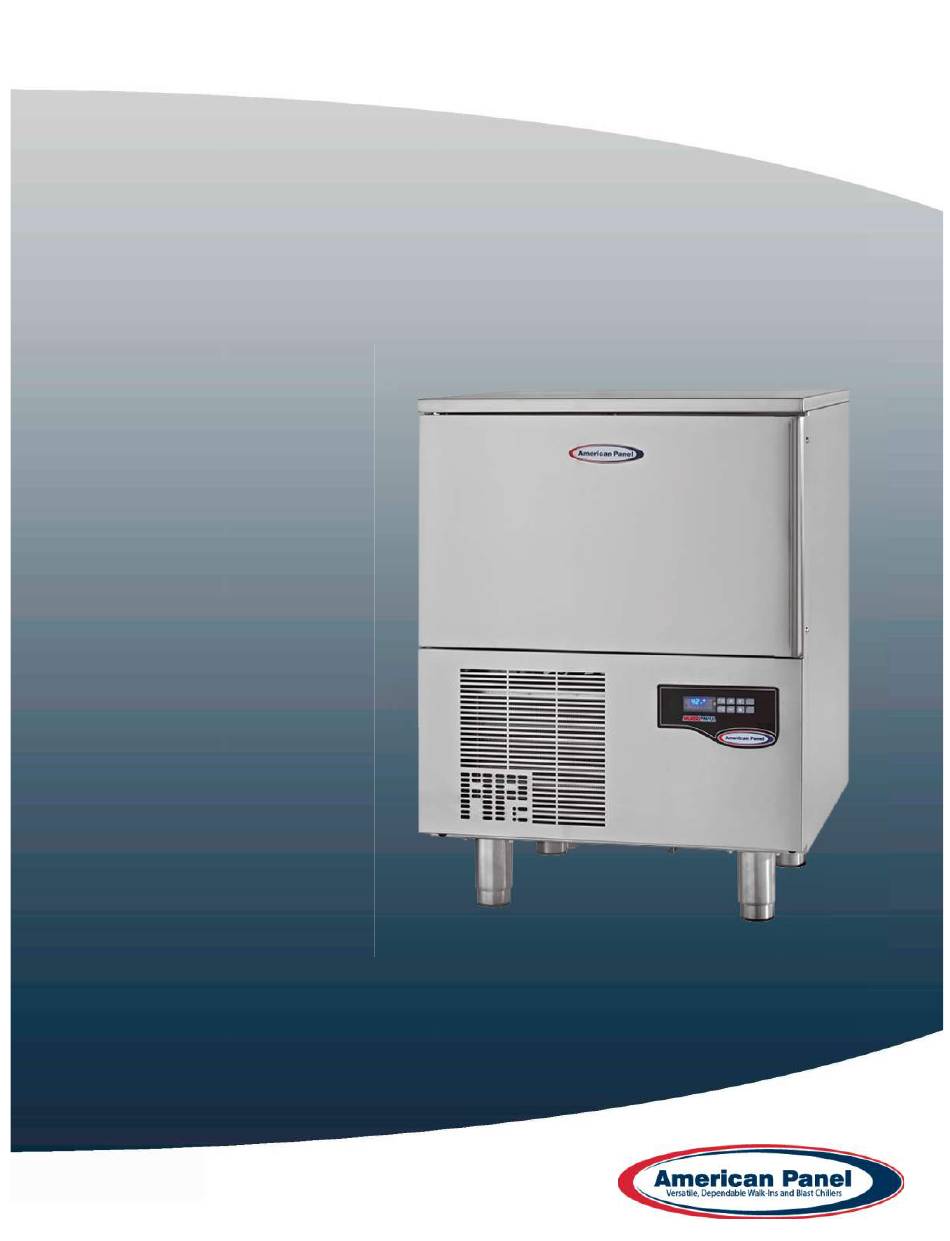

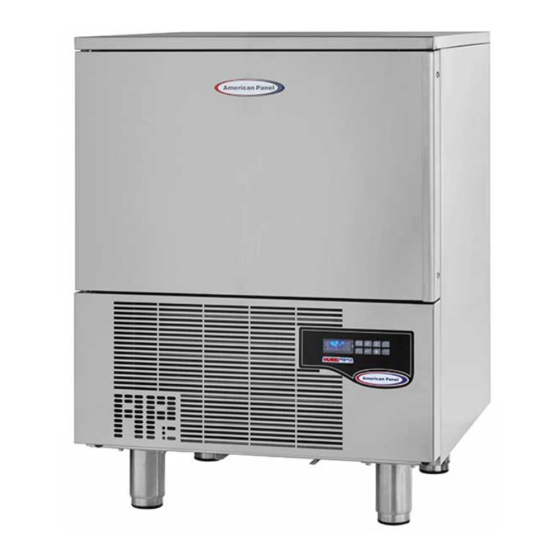

- Page 1 HURRiCHiLL BLAST CHILLERS & SHOCK FREEZERS AP3BCF30-1 AP3BCF30-1 AP5BCF45-2 AP5BCF45-2 Installation & User’s Manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty.................................. Installation................................Checking for Proper Installation........................Specifications & Performance........................General Operating Instructions........................Cycles Explained..............................Display..................................Starting A Cycle..............................Alarm Codes................................Maintenance Instructions..........................Cleaning Procedure............................. -
Page 4: Warranty
NONE NONE American Panel Corporation agrees to repair or replace at its option, FOB Factory, any part which proves to be defective due to defects in material or workmanship during the warranty period, providing the equipment has been properly installed, maintained and operated in accordance with the HurriChill™... -
Page 5: Installation
Installation American Panel Corporation equipment has been shipped in a package designed to sufficiently protect from damage under normal shipping circumstances. Upon receiving the shipment, carefully inspect the package for visible damage and check the number of packages against the Bill of Lading. Notify the carrier immedi- ately of any shortage or damage to your shipment. -
Page 6: Checking For Proper Installation
Installation Checklist (Cont’d) Verify the electrical service to be in accordance with the manufacturer label located on the right side of the unit. Connect the unit to the mains. Reach-In Models: • Plug the unit into the wall receptacle Condensate Drainage Reach-In Models: •... -
Page 7: Specifications & Performance
Installation Checklist (Cont’d) Note: American Panel Corporation blast chillers are equipped with a short cycle protection. If the unit is stopped or the door is opened and closed during a chilling cycle more than once, the compressor will not start for a period of 3 to 5 minutes. -
Page 8: General Operating Instructions
General Operating Instructions Panning and Loading Follow the methods below for faster cooling, freezing and thawing: • Place the food in shallow pans. • Do not use food pans deeper than 2 ½” and do not fill the pan with more than 2” of product. •... -
Page 9: Display
Cycles Explained (Cont’d) The air temperature will cycle between -25°F and -15°F until the food core temperature will reach 0°F, at this point the blast chiller will switch into holding mode meaning that the air temperature will cycle between -4°F and 3°F until the food is removed from the cabinet and/or the cycle is stopped by the operator. -
Page 10: Alarm Codes
Alarm Codes Data or memory failure. Air probe failure – replace air probe Evaporator probe failure – replace evaporator probe Food probe failure – replace food probe. Unit will run based on time until the probe will be replaced Real time clock data lost. Maximum temperature alarm - Contact technician to check the refrigeration system. -
Page 11: Cleaning Procedure
Blast Chiller Evaporator Coil Cleaning Procedure The following cleaning procedure is recommended as part of routine maintenance activity for all American Panel Corporation blast chillers. IMPORTANT: Do not use any sharp or abrasive tools to clean the evaporator coil! Before cleaning the evaporator coil run the defrost cycle to make sure the coil is completely free of ice. When cleaning the evaporator coil particular attention must be paid to the kind of cleansing agent used. - Page 12 Part Numbers CONTACT FACTORY 1-800-327-3015...
- Page 13 American Panel Corporation 5800 SE 78th Street P: (800) 327-3015 Ocala, FL 34472 F: (352) 245-0726...
