Introducing Lock Studio
Lock Studio is a connectivity device from Vicon, offering a cost-effective and silent solution for providing
synchronization and timecode to your Vicon Vero and Vicon Vantage systems (Vicon Bonita and MX T-Series
systems are also supported). Lock Studio features:
• Timecode and genlock, including genlock to SD, HD and 3G SDI broadcast digital video signals, and
extracting timecode metadata
• Support of VESA standards
• Remotely triggered start and stop
• General Purpose Input and Output (GPIO) sockets for synchronizing external devices
• Sync to SteamVR for use with HTC Vive

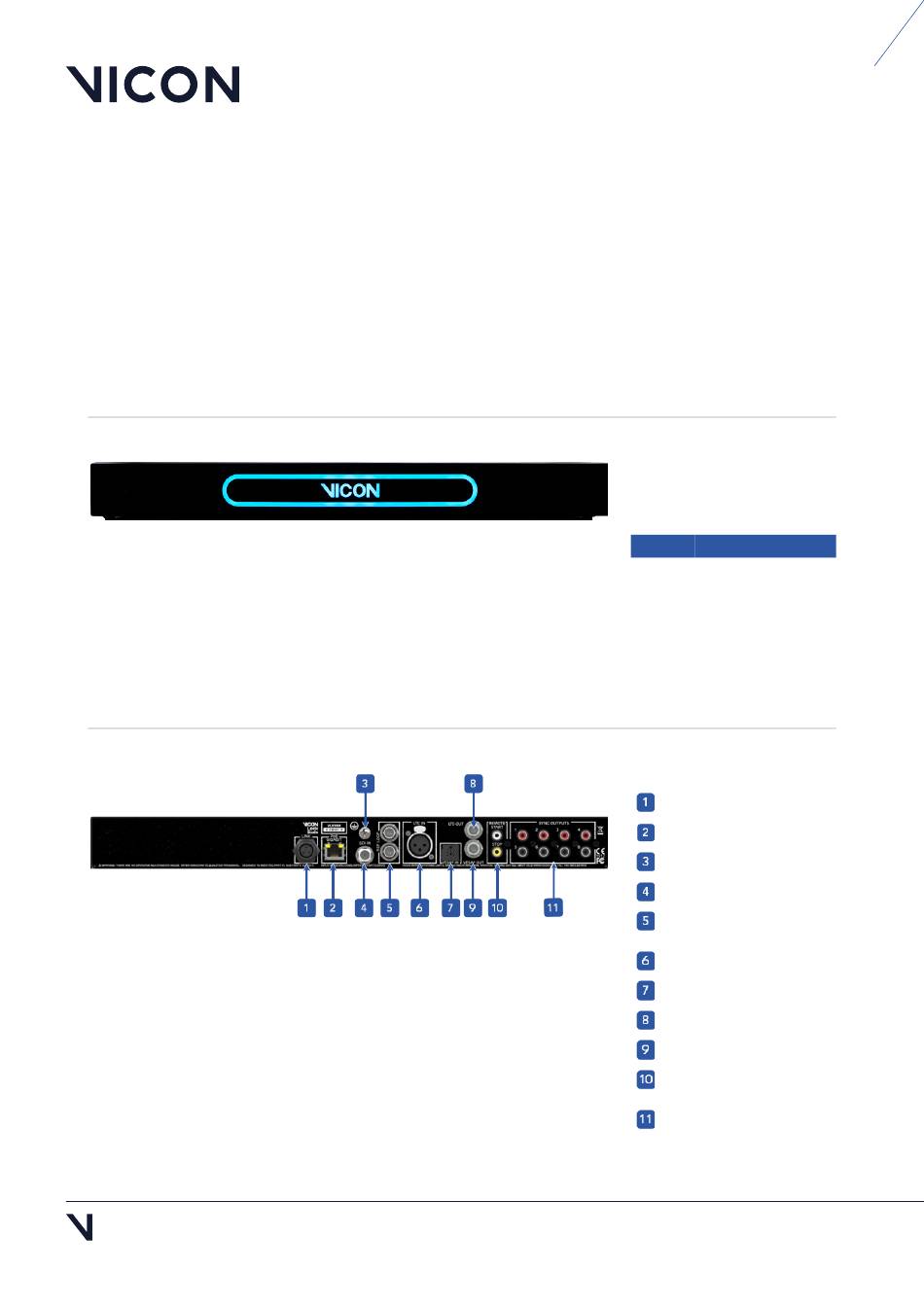

Lock Studio front view
Lock Studio rear view
Page 2
B E Y O N D M O T I O N
Status light (front)
On the front of the Lock
Studio, the Vicon logo
illuminates to indicate status.
Color Status
Red Booting
Green Booted but not
connected
Blue Communicating with
software
Cyan Lock Studio selected
in software

Connections (rear)

Link input/output (I/O)
PoE
Earthing (grounding) point
SDI input
Analog video reference
input including VITC
Timecode input: LTC
VESA sync input
Timecode output: LTC
VESA sync output
Remote Control input start
and stop
GPO sync outputs (x8)
