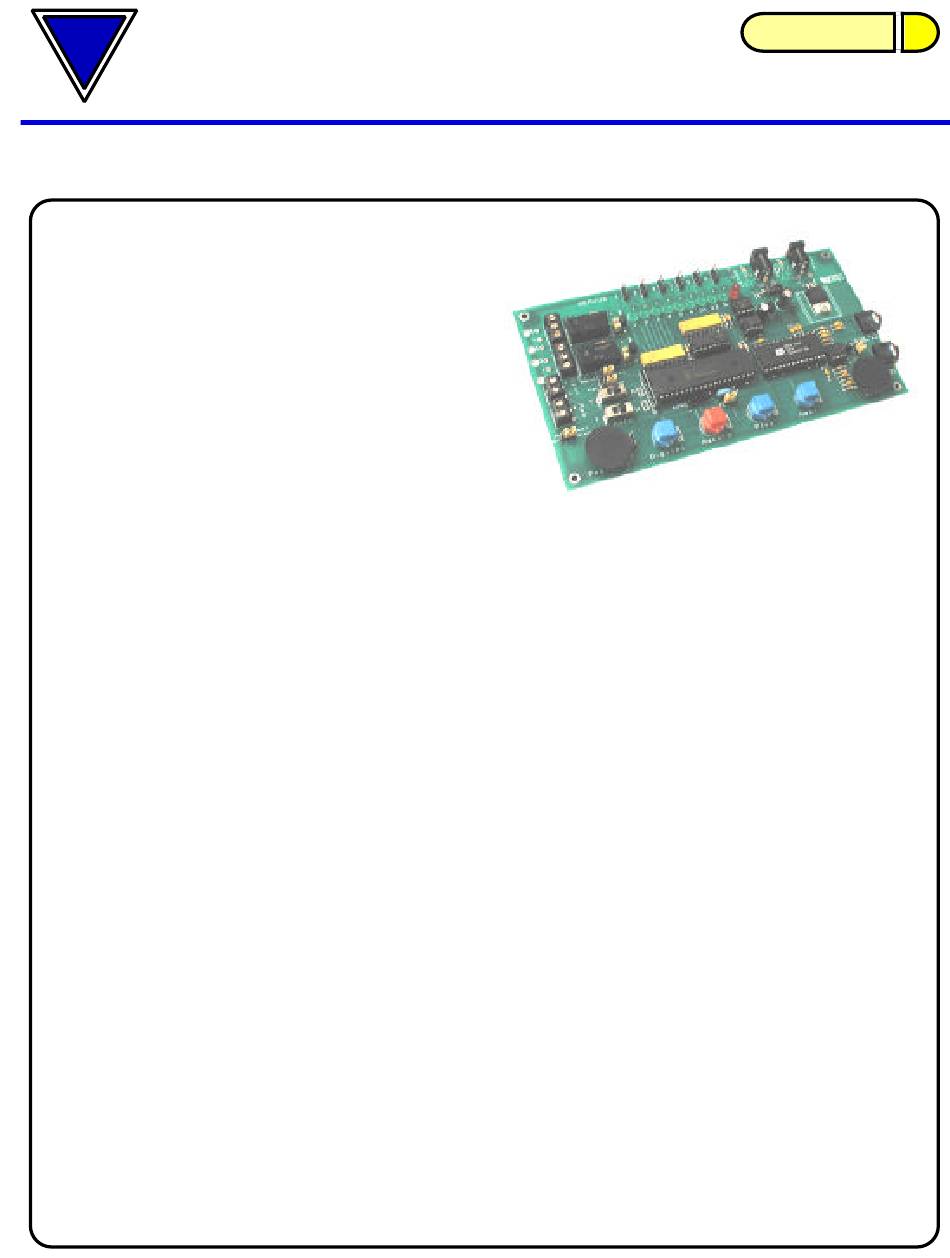

Blue Point Engineering Wizard - 11 Instruction Manual

Blue Point
Engineering Inc.

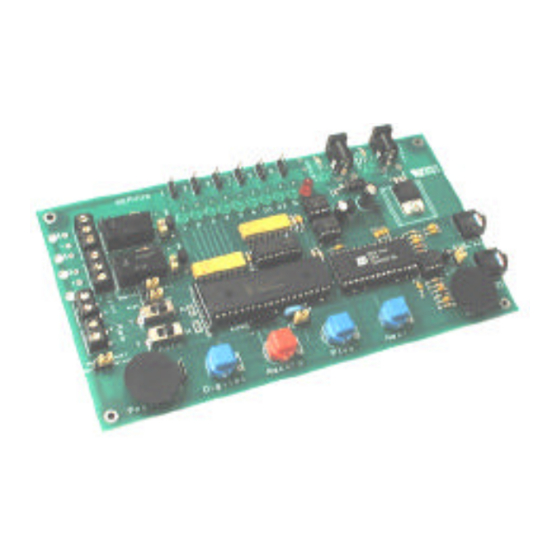

Wizard - 11 Board
The Wizard 11 Board will record and playback up to
6 minutes of motion for up to 6 servos and On and
Off relay action for 2 digital outputs. It also
incorporates a 4-minute audio recording and playback
IC sound chip with the option to control one servo
channel from recorded moves, from an input audio
signal or directly from the on-board sound IC chip.
The board includes features such as looping action with
variable delay between loops, auto start-up on
power up and a connection terminal for a PIR, remote
switch or sensor to initiate playback start.
Recording sessions are built up on a simple channel
-by- channel method using on-board switches and
potentiometer control. No computer or complex
programming is required to operate board.
During recording, all previously recorded channels are
re-played to aid synchronization.
WIZARD - 11 BOARD FEATURES:
• 2 Digital channels - either 0 / 4.5 Volts @ 10mA outputs or change over relay rated 30V @ 2 Amp.
• 6 Servo channels – one channel (ch2) may be automatically controlled from an audio signal either from
the line input or from the on-board sound chip.
• 4 minute (240 sec) high quality sound chip - digital recording from line input.
( Computer sound card, CD player, wav files, etc.).
• Digital ON-OFF, NEXT, PLAY and RECORD on-board buttons.
• Servo action reversing option on the audio channel servo - 2
• Maximum and minimum servo travel set points for the audio servo channel - 2
• 2 - selectable on-board relays ( 2 Amp @ 30 Volts dc ).
• Relays have insert wire terminal connection blocks.
• 2 - direct Digital control signal 0 / 4.5 Volts dc -10 mA connection pads, for hard wiring to board outputs.
• On-board potentiometer to determine the time delay between playback loops during automatic loop play,
fully adjustable between 0 and 65 seconds.
• Record enable / disable jumper to protect recorded programming routine.
• On-board AUTO-PLAY and LOOP-PLAY switches.
• Maximum and Minimum set points to the audio servo channel (ch-2) and optional reversing servo action.
• Remote terminal block activation connection for manual start switch, pressure mat or PIR sensor.
• Programming and operation Green and Red status LED's.
• EEPROM - containing the programmed data, can easily be removed and copied to other Wizard - 11 boards.
• Synchronization output signal to activate other Wizard boards linked together.
• Board is powered from regulated 9 Volt dc power supply and 6 Volt dc power supply.
• REMote - board trigger input from remote sensor with H or L signal activation jumper.
• Many more unique features.
Board Functions
Position Potentiometer - Servo motion, Time delays
Adjusts the position of the currently selected servo travel ( Channel -1 through Channel - 6 )
Sets the audio channel end stops.
Sets the time delay between playback in loop-play, adjustable to between 0 to 65 seconds.
: - CONTROL
Pointing the Way to Solutions!
WIZARD - 11 BOARD
Board Size: 7-3/8" L x 4-1/8" W x 1/2"H
Wizard - 11 Board is pre-assembled and tested.
Regulated 9 Volt dc power supply @ 2 Amp and
Regulated 6 Volt dc power supply @ 5 Amp
power supply required
Instruction I
www.BPEsolutions.com
Controller
Page 1
