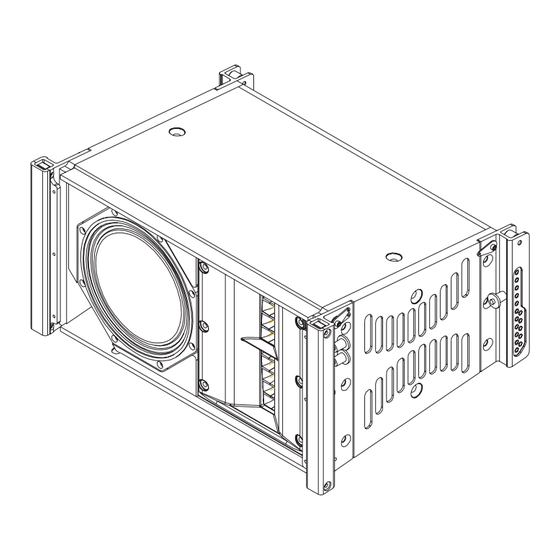

Electro-Voice Xlvc Series XLD-281 Brochure & Specs
  1. Manuals
  2. Brands
  3. Electro-Voice Manuals
  4. Speaker System
  5. Xlvc Series XLD-281
  6. Brochure & specs

Electro-Voice Xlvc Series XLD-281 Brochure & Specs

Line-array systems
Hide thumbs Also See for Xlvc Series XLD-281:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xlvc Series XLD-281 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electro-Voice Xlvc Series XLD-281

Summary of Contents for Electro-Voice Xlvc Series XLD-281

  • Page 2 Electro-Voice ® , an industry pioneer – still setting standards in professional sound reinforcement Line-Array Systems from Electro-Voice: A true advantage The “Hydra” – ® ’s plane wave generator The Hydra™ equalizes the path length to ensure equal arrival times at the exit, which is necessary to create a plane wave.
  • Page 3 X-Line Very Compact – Full Bandwidth Line Array for demanding applications X-Line Very Compact – in concert & touring applications The High Frequency Advantage of X-Line Very Compact – new Hydra™ Elements and new Neodymium Drivers Whenever highest audio performance but limited size and weight has to be combined, Electro-Voice’s X-Line Very Compact is the answer.

  • Page 4: System Components

    XLD281 Full bandwidth 3-way line array element • Full Bandwidth 3-way Element (60Hz-20kHz) • Very Compact, Lightweight • CCT ™ (Coverage Control Technology) • 120° Horizontal Coverage to 250 Hz • Simple, Quick Integrated Rigging • Versatile Subwoofer Integration • Bi-Amp or Tri-Amp Operation •...
  • Page 5 XLD281 Full bandwidth 2-way line array element • Full Bandwidth 2-Way Element (75Hz-20kHz) • Most Compact, Very Lightweight • Simple, Quick Integrated Rigging • Bi-Amp or Fullrange Operation • Neodymium Transducers • LAPS Aiming and Flying Software The XLE181 is the core element for constructing most compact line array systems.
  • Page 6 Xs212 double 12” side-firing bass cabinet The XS212 is a double 12-inch bass cabinet featuring two of the new DVX3120 woofers. A unique configura- tion allows side firing transducers to match the XLD281 horizontal coverage and match the rigging footprint. That allows to either use the XS212 above or below arrays of XLD281 or, if vertical space is limited to be flown behind the full range array.
  • Page 7 System Applications: Cabinets: 32 XLD281, 8 XS212, 6 X-Sub Amplifiers: 24 CP3000S (2 Spare) Controllers: 10 Dx38 Cabling: 16 NL8-long, 30 NL8-short 5 control segments for optimized array control (can be operated optional with 4). Optional drive: 24 P3000RL 16 XLD-Triamped (5 Segments) – Medium to Larger Venues Horizontal Coverage Typical: Distance Total Amp: Power...
  • Page 8 System Applications: Cabinets: 24 XLD281, 6 XS212, 4 X-Sub Amplifiers: 18 CP3000S Controllers: 8 Dx38 Cabling: 12 NL8-long, 22 NL8-short 4 control segments for optimized array control. Optional drive: 12 CP2200 & 6 CP3000S, or 18 P3000 RL 12 XLD Triamped (4 Segments) – Medium Horizontal Coverage Typical: Distance Total Amp: Power...
  • Page 9 System Applications: Cabinets: 16 x XLD 281, 4 x XS212 Amplifiers: 8 x CP 3000S Controllers: 4 x DX38 Cabling: 6 x NL8 long, 14 x NL8 short Three control segments for optimized array control. Optional drive with 6 P3000RL & 2 P3000RL, or 6 CP2200 & 2 CP3000RL. Add subbass extension add 2 X-Subs. System Applications: Cabinets: 12 x XLD 281, 4 x XS212...
  • Page 10 System Applications: Cabinets: 16 x XLD 281, 4 x XS212 Amplifiers: 8 x CP 3000S Controllers: 4 x DX38 Cabling: 6 x NL8 long, 14 x NL8 short 3 contol segments for optimized array control. Optional drive: 6 x P1200RL & 2 x P3000RL, or 6 x CP2200 & 2 x CP3000RL. For bass extension add 2 XA212 per side.
  • Page 11 System Applications: Cabinets: 12 x XLD 281, 2 x X-Sub Amplifiers: 8 x CP 3000S Controllers: 4 x DX38 Cabling: 6 x NL8 long, 10 x NL8 short 3 contol segments for optimized array control. Optional drive: 6 x P1200RL & 2 x P3000RL, or 6 x CP2200 & 2 x CP3000RL. For subbass extension add 2 X-Subs.
  • Page 12 System Applications: Cabinets: 18 x XLD 281, 4 x XS212, 2 X-Sub Amplifiers: 3 x P3000RL, 9 x P1200RL Controllers: integrated (IRIS software) Cabling: 11 x NL8 long, 13 x NL8 short 3 segments for optimized array control. Optional Drive: 9 x CPS2.8 & 3 x CPS2.11, 6 Dx38. 6 XLD-Biamp (3 Segments) –...
  • Page 13 System Applications: Cabinets: 12 x XLD 281, 4 x XS212 Amplifiers: 2 x P3000RL, 6 x P1200RL Controllers: integrated (IRIS software) Cabling: 6 x NL8 long, 10 x NL8 short 3 control segments for optimized array control. Optional Drive: 6 x CPS2.8, 2 x CPS2.11, 4 Dx38. For sub bass extension add 2 X-Sub System Applications: Cabinets: 12 XLE181, 4 XS212...
  • Page 14 System Applications: Cabinets: 12 x XLE 181, 4 x XS212 Amplifiers: 8 x CP 3000S Controllers: 4 x DX38 Cabling: 6 x NL8 long, 10 x NL8 short 3 contol segments for optimized array control. Optional drive: 6 x CP2200 & 2 x CP3000S. System Applications: Cabinets: 12 x XLE 181, 4 x XS212...
  • Page 15 Notes...
  • Page 16 Phone: +852 2351-3628, Fax: +852 2351-3329 Singapore: Telex Pte. Ltd. 3015A Ubi Road 1, 05-10 Kampong Ubi Industrial Estate, Singapore 408705 Phone: +65 6746-8760, Fax: +65 6746-1206 © 2005 EVI Audio GmbH · Internet: www.electrovoice.com · SUBJECT TO CHANGE WITHOUT PRIOR NOTICE...
