Voice communication for Free
High Performance Embedded VoIP Gateway
03IP12ME.D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP1200 and is the answer not in the manual?

Questions and answers

Related Manuals for DSG Technology IP1200

Summary of Contents for DSG Technology IP1200

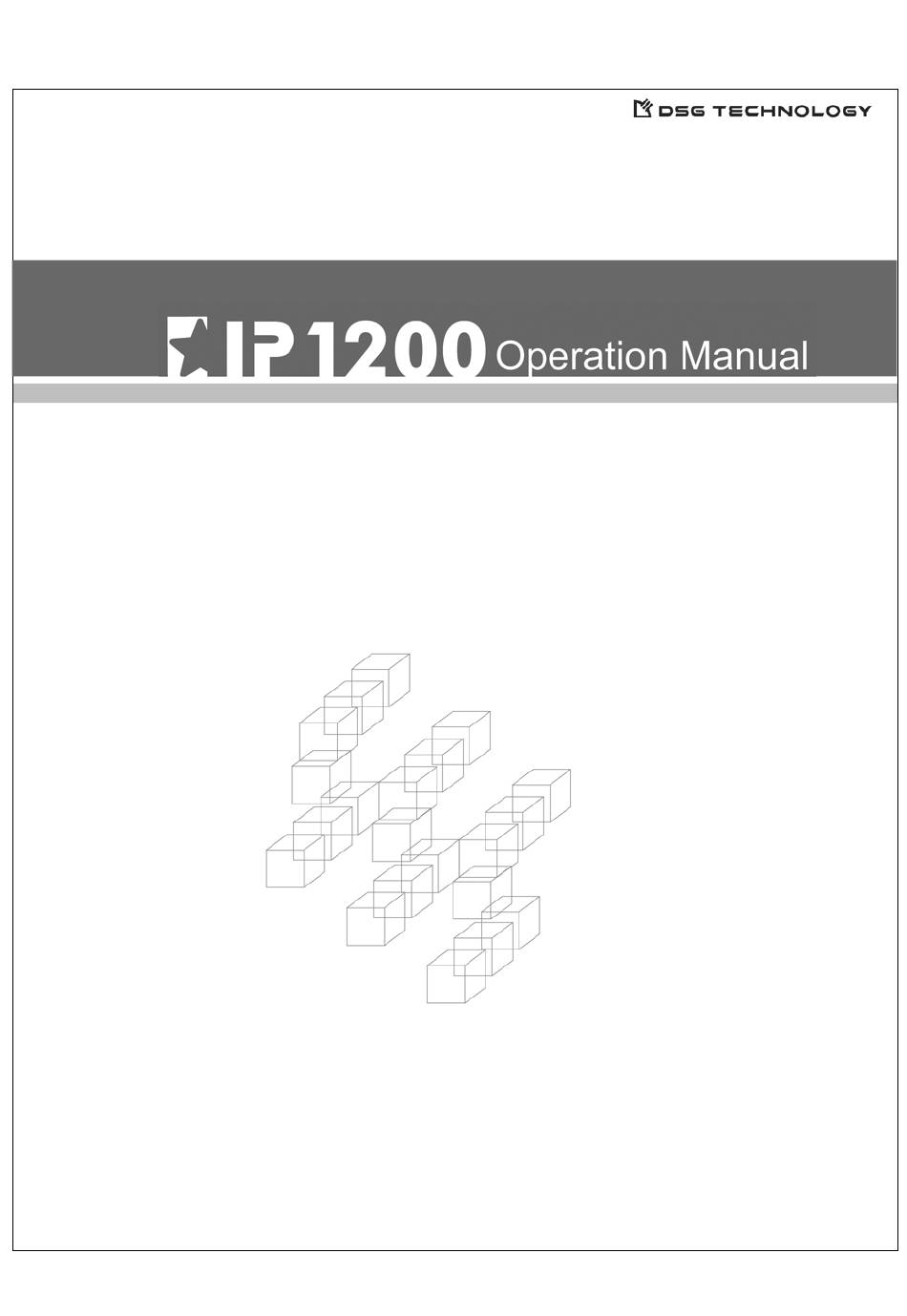

  • Page 1 Voice communication for Free High Performance Embedded VoIP Gateway 03IP12ME.D...
  • Page 2 DSG Technology shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, use of this manual or the examples herein.

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS Chapter 1 Understanding Your IP1200 Overview…………………………………………………………………………………..4 All-in-one Design…………………………………………………………………………4 Comprehensive Operation Modes…………………………………………………..4 VPN Mode……………………………………………………...…………………….4 ITSP Mode………………………………………………………………………….4 Terminology…………………………………………………………….………………5 Conventions……………………………………………………………………………….5 Chapter 2 Installing Your IP1200 Hardware Installation…………………………………………………………………..8 Connecting the DC Power Supply………………………………………………..8 Connecting the Line Ports…………………………………………………………8 Connecting to TCP/IP Network………………………………………………..8 Ports Definitions…………………………………………………………………………..9...
  • Page 4 In ITSP Mode………………………………….………………………………………...34 Scenario 1-4: Local IP1200-Remote IP1200…………………..…………………...34 Scenario 5: FXO (with PBX)-DSG VoIP Devices…………………………….…..34 Scenario 6: FXO (with PBX)-Regular Phone Users……………………………...34 Scenario 7: DSG VoIP Devices-Local IP1200…………..………………………..34 In DHCP Environment……………..…………………………………………………...35 Appendix A: Troubleshooting the IP1200 Appendix B: Specifications Appendix C: Quick Installation Guide...

  • Page 5: Chapter 1 Understanding Your Ip1200

    Public Switched Telephone Network (PSTN). Users can place Internet calls to a remote IP1200 and via it to the remote PSTN. Moreover users can also place Internet calls directly to PSTN networks. IP1200 is an outstanding gateway delivering the new way of communications.

  • Page 6: Overview

    Figure 1: VPN Mode Diagram ITSP Mode IP1200 allows you to talk to anyone anywhere with ultra low rates. Supported by DSG Global Internet Telephony Network, IP1200 provides an immediate connection to worldwide regular phone users as well as any users of DSG VoIP devices, InterPhone, IPStar and InterStar.

  • Page 7: Terminology

    Chapter 1 Understanding Your IP1200 Figure 2: ITSP Mode Diagram Note: IPStar is a Modem-based Internet Phone Device. InterStar is an Ethernet-based Internet Phone Device. InterPhone is a full-featured Ethernet Key Phone. Terminology In this manual, there are some terminologies you might not be acquainted with. The following is a list of commonly used voice technology terms.

  • Page 9: Chapter 2 Installing Your Ip1200

    Chapter 2 Installing Your IP1200 CHAPTER 2 Installing Your IP1200 Connecting IP1200 is easier than connecting a laptop PC. In your IP1200 package, you will find: An IP1200 main unit A DC 5V/12V power adapter and power cord A RJ-45 network cable...

  • Page 10: Connecting The Dc Power Supply

    PBX trunk-side. Plug a telephone line connected to an analog phone or a PBX’s trunk-side into a FXS RJ11 port If you connect the IP1200 FXS ports to the PBX’s trunk side, each port will obtain an access code or a line indicator can be viewed from phone sets.

  • Page 11: Indicators

    Chapter 2 Installing Your IP1200 For 8-port IP1200, open TCP 1100 port and UDP 1101-1108 ports. Note: Misplacing FXO equipment into FXS interface and vice versa may damage IP1200. Be sure that the FXO/FXS interfaces are connected to the adequate telephone lines and equipment.

  • Page 13: Chapter 3 Configuring Your Ip1200

    With these easy steps, the IP1200 is ready to use in no time. Before You Start To use IP1200 as a VoIP gateway, you need to subscribe an Internet access line from your local ISP. It could be xDSL, Cable Modem access or Leased Line. You will need the following information to set up your IP1200.

  • Page 14: Items

    ETHERNET port on IP1200 and the other end to the LAN port on your PC. Note: You can also use a crossover cable connecting one end to the CONSOLE port on IP1200 and the other end to your PC’s COM port.
  • Page 15 Chapter 3 Configuring Your IP1200 will always be transmitted 2:FXO Auto starting from Port 1. When set 3:FXO Cyclic as Cyclic, calls will be 4:FXS Auto transmitted to Port 2 if the 5:FXS Cyclic previous call was picked by 6:Forbidden Port 1.

  • Page 16: Ip Address

    IP1200, it is recommended that you assign a static and real IP address to IP1200. If you assign pseudo IP address to IP1200, you need to open the TCP and UDP ports for the IP address assigned to IP1200 from your router.

  • Page 17: Gateway Ip Address

    After the prompt displays New DNS (press ESC to exit):, input the DNS Address information <xxx.xxx.xxx.xxx> and then press ENTER. Note: IP1200 has a preset DNS address as 168.95.1.1. Unless your ISP requires a specific DNS Address, you may keep the default setting.

  • Page 18: Dhcp

    New DHCP (0:Off, 1:On, press ESC to exit) : 1 Press any key to continue ... If you assign pseudo IP address to IP1200, you need to open the TCP and UDP ports for the IP address assigned to IP1200 from your router.

  • Page 19: Check Account Balance

    ITSP Account item. Note: The default account to store calling points is the Device ID Number preset in IP1200. You may ask your distributor to credit the default account so you can use it instantly. You may also send a mail to sales@dsg.com.tw for more information.

  • Page 20: Country Code

    ITSP Account or Device ID Account, you can make phone calls to any regular phone user in addition to connect to remote IP1200 by Dial Plan. When your IP1200 is in ITSP Mode, the MODE LED is in Red color. If there is any interruption of registration, IP1200 will try to register again every 10 minutes.
  • Page 21 # sign which represents a hot key . Maximum: 20 digits. If you would like to make a phone call from your IP1200 to remote IP1200 extensions or other DSG VoIP devices, you can create patterns as below. Step 1 At the prompt displays Select the option to setup:, input <20>...

  • Page 22: Pattern 1: Fxo(With Pbx)-Fxo(With Pbx)

    When you use PBX, an interval will occur between dialing the CO line access code and getting an outgoing line. If your IP1200 or Remote IP1200 is connected to a PBX, you might need to send a pulse signal to generate a pause so as to provide the interval.

  • Page 23: Pattern 4: Fxs-Fxs

    To call a remote InterStar, you can also choose to dial the InterStar’s Device ID Number directly when you are in ITSP Mode, instead of using the Dial Plan. First make sure your IP1200 is in ITSP Mode, and the remote InterStar is on the Internet.

  • Page 24: Password For Fxo

    After the prompt displays New FXO Password (digits, press ESC to exit):, input the password <xx...> and then press ENTER. Note: The maximum length of the password is 10 digits. If you leave it as blank, anyone can access to IP1200 from PSTN without a password.

  • Page 25: Disable Telnet Function

    Authorized Devices Setup You can set a list of DSG VoIP devices and authorize them to get connected to your IP1200. This will prevent your IP1200 from being used by unauthorized devices. The DSG VoIP devices might include IP1200, IP1000, InterStar, InterPhone or IPStar.

  • Page 26: Connected Type

    Chapter 3 Configuring Your IP1200 Prompt example: If you would like to set IP1200 to pick up the incoming phone call at the 2 rings, input it as follows. Select the option to setup : 15 New Rings to Answer (1-20, press ESC to exit) : 2 Press any key to continue ...

  • Page 27: Port Configuration

    Chapter 3 Configuring Your IP1200 Port Configurations This item allows you to enable, disable specific ports when they are broken. You can also view the duration of an activated call and the total number of calls been connected since power on.

  • Page 28: Record Volume

    The busy tone signal is an indication of the end of a conversation or unavailability of the remote party. By tuning the busy tone parameters, you can allow IP1200 to detect the busy tones more precisely for efficiently disconnecting phone calls. This section covers the hang up issues associated with various regional POTS and PBX systems interoperating with IP1200.

  • Page 29: Advanced Options

    At the prompt Select item to setup (1-4, press ESC to exit): , input <1> and press ENTER to edit 1)Busy tone cycles to hangup. Based on your phone system’s setting, select the number of busy tone rings from 2 to 9 for IP1200 to disconnect the line after detecting the busy tone.

  • Page 30: On-Line

    At the prompt Select item to setup (1-10, press ESC to exit): , input <5> and press ENTER to edit. Select a level from -20 to 20. Press ENTER to save. This item is used when you raise the local IP1200’s 6. Play Volume or remote IP1200’s 7.

  • Page 31: Configuration

    ENTER. You will be disconnected and exit. Restoring to Default Settings If there is any system error or you forget your IP1200’s IP address or Telnet password, you may reset IP1200 back to the factory default.
  • Page 33 IP1200. IP1200 supports both FXO and FXS telephone interface. It is more than a reliable and affordable long distance saving phone system. IP1200, the high performance embedded VoIP gateway, is the ideal telephony mate for small to medium size enterprises.

  • Page 34: Scenario 1: Fxo (With Pbx)-Fxo (With Pbx)

    LINK is on; it means your IP1200 is connected to your LAN successfully. In VPN Mode, if the LED color of MODE is green, it means your IP1200 is not registered to DSG Center and you can make peer-to-peer phone calls, e.g. from your IP1200 to the remote IP1200 and/or remote PSTN.

  • Page 35: Scenario 2: Fxo-Fxo

    Step 3 Dial the extension number you would like to reach. Note: Be sure your telephone is connected to a FXS port of Local IP1200 and the remote PBX trunk-side is connected to one FXS port of Remote IP1200. IP1200 Operation Manual 33...

  • Page 36: Scenario 5: Fxo (With Pbx)-Dsg Voip Devices

    AUTO InterStar Extension 333 Step 1 From your office, you can dial extension number 111 to reach your IP1200. You will then hear the dial tone. Step 2 To call remote InterStar as extension 333, make sure the remote InterStar is connected to the Internet, then...

  • Page 37: Environment

    Pick up an online DSG VoIP Device and dial the IP address assigning to the Local IP1200 and separated by “ ” sign and a suffix “ ” sign to call (e.g. If the Local IP1200 IP address is 192.168.001.001, dial to call).
  • Page 38 Do I need a real IP address to configure my IP1200? It is recommended you assign a real IP address to your IP1200. If you assign a private IP address, you need to perform the port mapping. For details, see the question as below.
  • Page 39 The reason might be that the busy tone parameter of IP1200 is different from the one of your telephony company or your PBX system. As a result your IP1200 is not able to detect the busy tone signal and disconnect the line. You can adjust the parameters on Setting Item 21 Busy Tone Setup to match the requirement of your Telephone Company or PBX system.
  • Page 40 315mm x 198mm x 60mm Weight Approximately 2300g Power Input DC 5V, 12V Temperature 0~50ºC (32~122ºF) Humidity 10% to 90% non-condensing Internal RAM 8 MB Voice Compression G.723.1 standard, G.729a Optional Network Protocol TCP/IP, DHCP, Telnet 38 IP1200 Operation Manual...
  • Page 41 In the section below, you will find configuration items and Dial Plan setting examples. You may use this guide to quickly set up your IP1200. During the operation, if you reset IP1200 as described in page 29 “Restoring to Default Settings”, only IP Address, Gateway IP, Subnet Mask, DNS and Telnet Password items will be retrieved to the...

  • Page 42: Setup

    3. After off-hook but no dialing 0 to 300 sec 30 sec action been made within this duration, lines will be released. 4. Used when your IP1200 -20 to 20 (24)Advanced Options cannot receive good voice quality. After adjusting the local 1.
  • Page 43 The series of dot signs ‘…………’ followed by the comma sign mean the length of phone number allowing Remote IP1200 to dial. First accessing your IP1200 and you will hear the dial tone. To call extension 222 in the remote office, dial . To call a customer whose telephone number is 12345678 at the remote side, dial .
  • Page 44 In the above pattern, because you set the area code 2 of Taipei in the Dest. Pattern, you won’t be able to make long distance calls from Remote IP1200. If you don’t want to set long distance call restrictions, in the Dest. Pattern, set...
  • Page 45 Copyright ©2003 DSG Technology. All rights reserved. DSG, DSG Technology, and the DSG Technology logo are registered trademarks of DSG Technology, Inc. or its affiliates in the U.S. All other trademarks mentioned in this document are the property of their respective owners. The use of the word partner does not imply a partnership relationship between DSG and any of its resellers.
