Summary of Contents for Stairville D1210

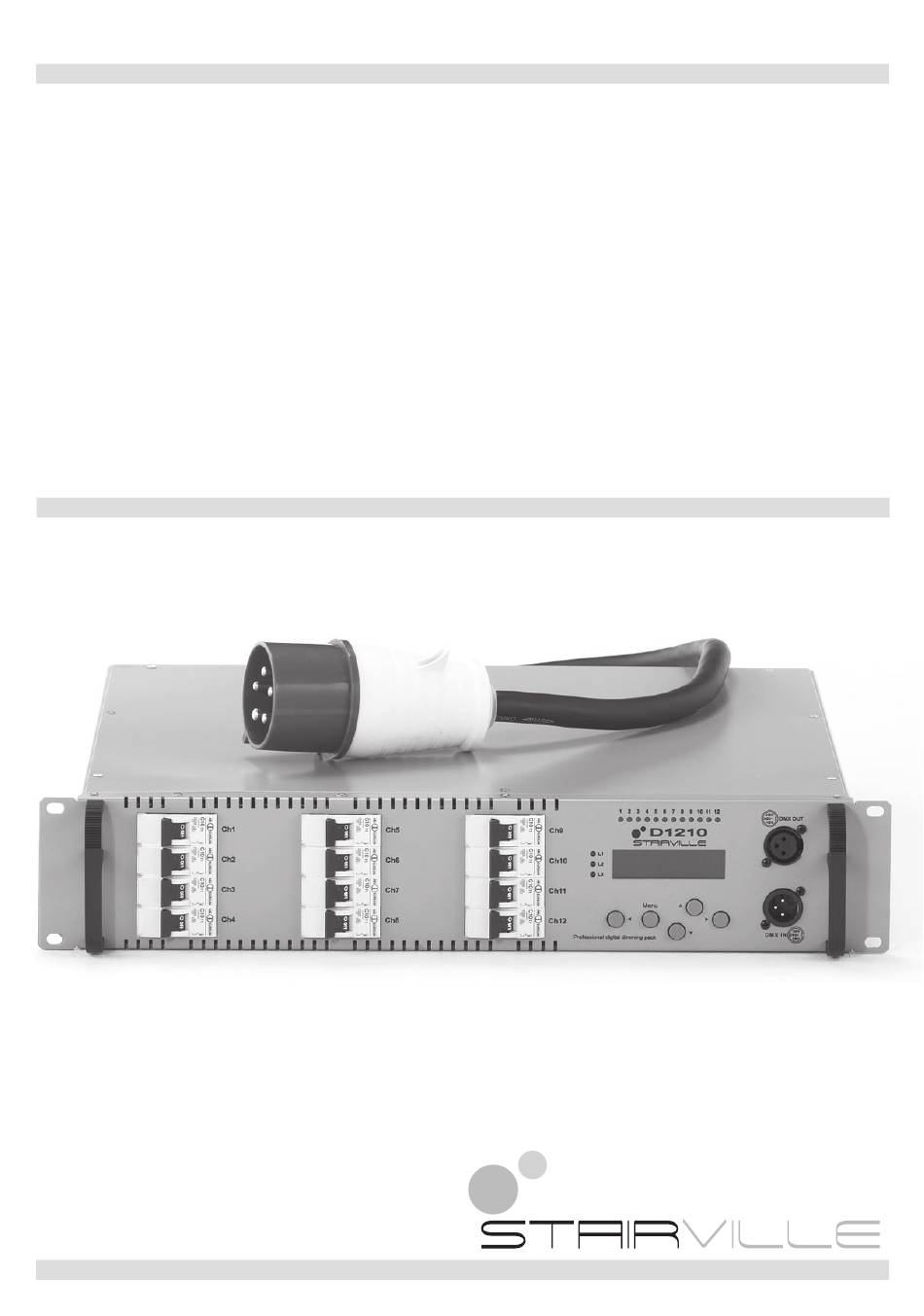

- Page 1 D1210 Owner‘s Manual 12 CHANNEL DIGITAL DIMMER PACK...
- Page 2 Notes on safety For your own safety you must read through this chapter at first completely! Risk of electrical shocks! • Only connect the device to a mains power supply, that complies to the technical specifications given in this manual. •...
- Page 3 ATTENTION! • Damages caused by the disregard of this user manual are not subject to warranty. Neither the manufacturer nor the importer will accept liability for these kind of damages or any resulting damages, defects, or problems. The electric connection must only be carried out by a qualified electrician! All electric and mechanical connections must comply with European safety norms.

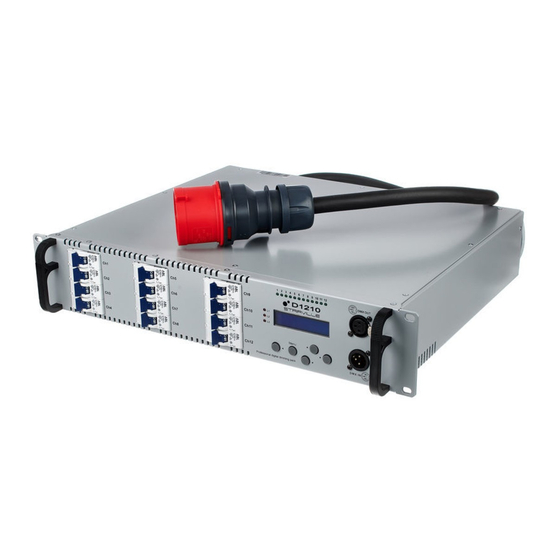

- Page 4 Front panel q Circuit Breaker t DMX Signal output w Phase LED indicator y DMX Signal input e Channel LED indicator u Control Keys r LCD Display Rear panel i AC Power Output o Cooling Fan a Main AC Power Input...
- Page 5 Once you have powered the unit the phase indicator LED’s will light and the LCD will display after a second: “STAIRVILLE D1210 / DIGITAL DIMMER”. This means that D1210 is ready to be used. The green LED’s on the front panel will show the intensity for channels.
- Page 6 Preheat setup D1210 have individual channel preheat values which can be set in this way: Enter “Unit Setup”->”Preheat Ch1= 0” and press (Menu) key. The channel number will start to blink. Select the desired channel pressing (Up) / (Down) keys and then press (>).
- Page 7 Unit Status Display channels values You can see the value of each channel of the D1210 entering “Unit Status”-> “Channel 1= 68” and press (Menu) key. The channel number will start to blink. To change the current channel press (Up) or (Down) keys.
- Page 8 © 2010 Musikhaus Thomann Treppendorf 30 • 96138 Burgebrach • Germany www.thomann.de...
