Kallista CENTRAL PARK WEST P21211-LV-SN Installation Manual

Record your model number.
Install the O-ring. Install the
3
handles with the "H" and "C" facing
forward.
8 Connect the hoses.
Remove the aerator, turn on the
13
water, flush the hoses, and
check for leaks.
1363518-2-A
Stainless (Non-Staining) Plumbers Putty
Important Information
Follow all local plumbing and building
codes.
Install the washer and ring. Do not
4
tighten the screws.
9 Disassemble the drain.
Turn off the water. Reinstall the
14
aerator.
Do not use petroleum-based
plumbers putty on marble or stone
surfaces.
Turn the handles to the OFF
5
position. Align the handles.
10 Apply plumbers putty to the
flange and thread onto the drain
body.

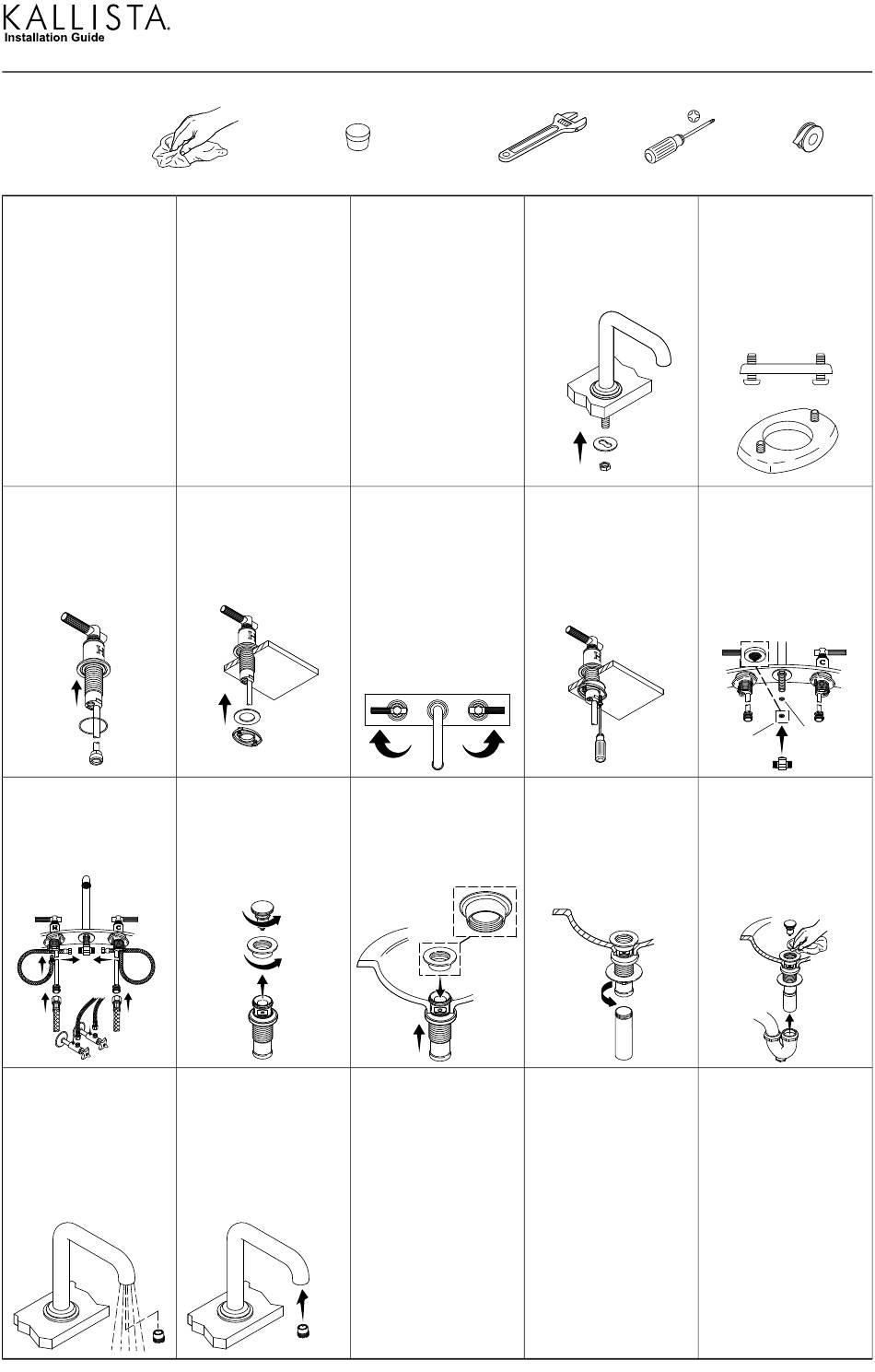

1 Install and secure the faucet.
Secure the handles.
6
11 Tighten the nut. Apply thread
sealant to the drain pipe threads.
Sealant Tape
2 Partially thread the screws into the
rings.
Install and tighten the tee with the
7
screen cone down.
Nylon
Rubber
Washer
Screen
Gasket
12 Install the stopper. Connect the
trapway. Wipe away excess
putty.
