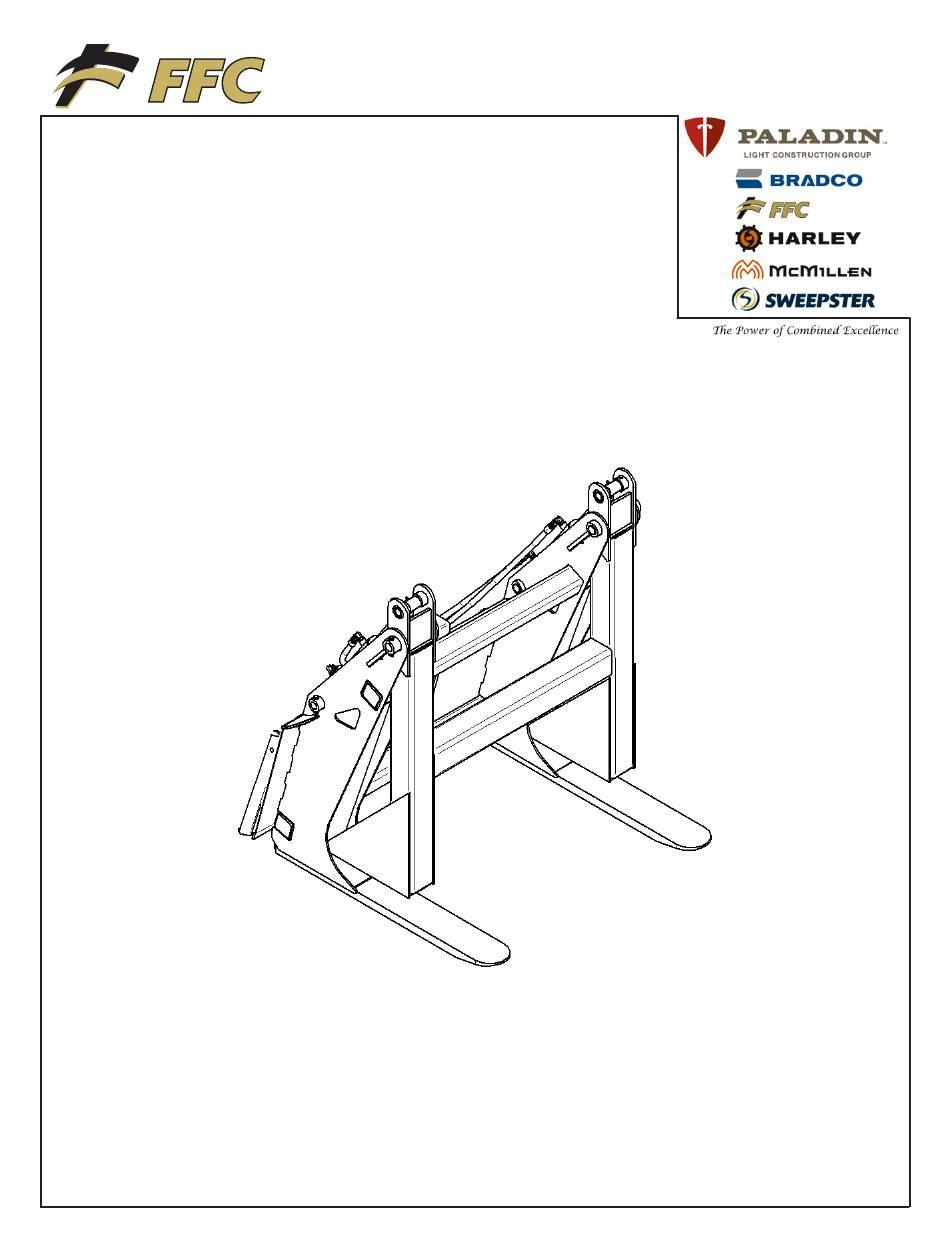

- Page 1 OPERATOR’S AND PARTS MANUAL LOG GRAPPLE SERIAL NUMBER: ___________________ Manual Number: MR15533 Part Number: LAF1142 MODEL NUMBER: ___________________ Rev. 2 800-456-7100 I www.paladinlcg.com 503 Gay Street, Delhi, IA 52223, United States of America 2-09-09...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................... 3 GENERAL INFORMATION ..................3 SERIAL NUMBER ..................... 3 OWNER AND OPERATOR SAFETY INFORMATION SAFETY STATEMENTS ................. 4 SAFETY PRECAUTIONS ................4-7 SAFETY SIGNS ..................... 8-9 SPECIFICATIONS ..................... 10-11 MOUNTING ....................... 12 HYDRAULIC CONNECTION ..................13 OPERATION ...................... - Page 4 2/09/09 MR15533...
-
Page 5: Introduction
FFC at the telephone number or address listed on the cover of this manual. Keep this manual available for reference whenever this product is being handled or used. Provide this manual to any new owners and/or operators. -
Page 6: Safety Statements
SAFETY STATEMENTS THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. DANGER THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. - Page 7 GENERAL SAFETY PRECAUTIONS WARNING! PROTECT AGAINST FLYING DEBRIS Always wear proper safety glasses, goggles or a face shield when driving pins in or out, or when any operation causes dust, flying debris, or any other hazardous material. WARNING! LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them.
- Page 8 GENERAL SAFETY PRECAUTIONS WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the function, safety, life, and performance of the attachment. When making repairs, use only the manufacturer’s genuine parts, following authorized instructions. Other parts may be substandard in fit and quality.
- Page 9 EQUIPMENT SAFETY PRECAUTIONS Obey all the safety instructions listed in this section and throughout this manual. DANGER! DO NOT USE THE LOG GRAPPLE TO LIFT ROUND BALES! DANGER! GRAPPLE MOVES QUICKLY! • Do not stand near or place extremities near grapple or between grapple and implement.
- Page 10 SAFETY SIGN LOCATIONS The diagram on this page shows the location of the decals used of the FFC Log Grapple. The decals are identified by their part numbers, with reductions of the actual decals located on the following page. Use this information to order replacements for lost or damaged decals. Be sure to read all decals before operating the attachment.
-
Page 11: Safety Signs
SAFETY SIGNS PART # 40150 WARNING! READ MANUAL PART # 50-0724 WARNING! HIGH PRESSURE FLUID PART # 50-0737 WARNING! PINCH POINT PART # RDL3103 WARNING! FALLING LOAD PART # RDL3125 PART # RDL3139 WARNING! CRUSH HAZARD SAFETY INSTRUCTIONS 2/09/09 MR15533... -
Page 12: Specifications
PRIME MOVER/LOADER SPECIFICATIONS IMPORTANT Exceeding any of the maximum recommended prime mover/loader specifications CAN result in damage to this product and WILL void all FFC warranties. DESCRIPTION SPECIFICATIONS Lift Capacity of Prime Mover's Loader 6,400 lbs. maximum Hydraulic Pressure Output 4,000 psi. - Page 13 BOLT TORQUE BOLT TORQUE SPECIFICATIONS GENERAL TORQUE SPECIFICATION TABLES given. Always use grade 5 or better when replacing bolts. SAE BOLT TORQUE SPECIFICATIONS NOTE: The following torque values are for use with extreme pressure lubricants, plating or hard washer applications Increase torque 15% when using hardware that is unplated and either dry or lubricated with engine oil.
-
Page 14: Mounting
The Log Grapple must fit onto the loader the same as the original bucket fit, either quick- attach, pin connection or as intended by the loader manufacturer. If the Log Grapple does not fit properly, contact FFC before operating. •... -
Page 15: Hydraulic Connection
HYDRAULIC CONNECTION READ AND UNDERSTAND ALL SAFETY STATEMENTS Read all safety decals and safety statements in all manuals before beginning any Log Grapple hydraulic connection. Know and obey all OSHA regulations, local laws, and other professional guidelines for your operation. Know and follow good work practices when assembling, maintaining, repairing, mounting, removing, or operating this equipment. -
Page 16: Operation
OPERATION Read all Safety Precautions before operating your new attachment. Refer to your machines operator's manual for attachment operation. POSITIONING • Be aware of how the load’s weight is distributed. • Open grapple. • Always make certain that forks are completely under the load before lifting. •... -
Page 17: Maintenance
• Before servicing or cleaning -- lower attachment to ground, close grapple and shut off engine. • Make no modifications to the attachment, do not repair with any parts other than original FFC parts. BEFORE EACH USE •... -
Page 18: Parts Illustration
LOG GRAPPLE PARTS ILLUSTRATION 2/09/09 MR15533... -
Page 19: Parts List
LOG GRAPPLE PARTS LIST ITEM QTY. LAF1142 DESCRIPTION LAF1160 Main Frame Weldment LAF1161 Grapple Weldment LAF3100 Upper Cylinder Pin LAF3098 Grapple Pivot Pin Lower Cylinder Pin LAF3099 Grade 5 Hex Head Cap Screw .38" x 2.5" 1049 1048 Grade 5 Hex Head Cap Screw .38" x 2.25"... -
Page 20: Warranty
Limited Warranty Except for the Excluded Products as described below, all new products are warranted to be free from defects in material and/or workmanship during the Warranty Period, in accordance with and subject to the terms and conditions of this Limited Warranty. Excluded Products.
