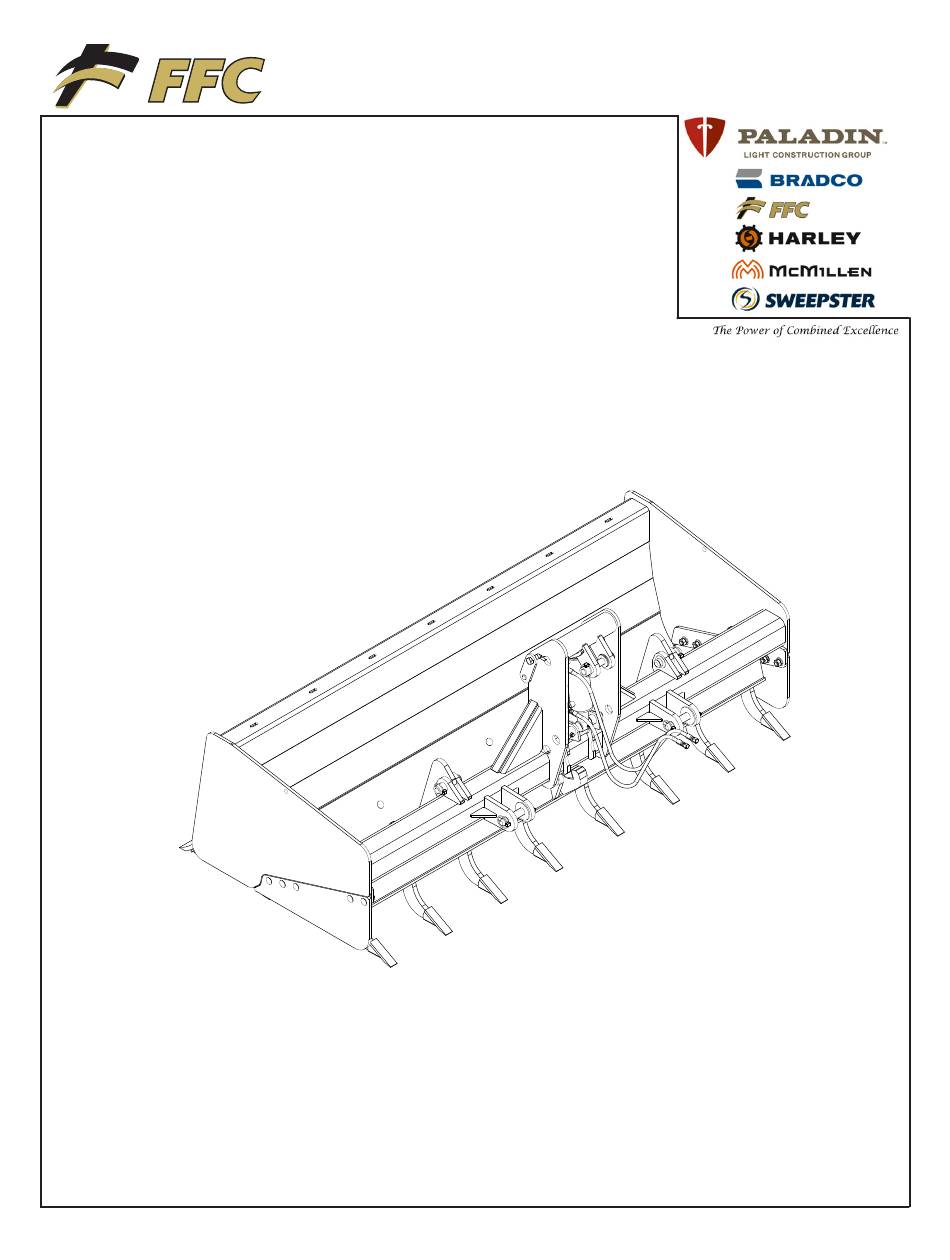

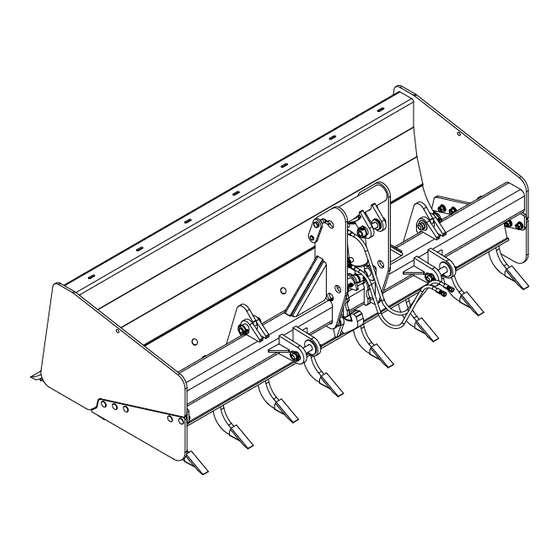

- Page 1 OPERATOR’S AND PARTS MANUAL BOX SCRAPER 13888 Shown SERIAL NUMBER: ___________________ Manual Number: MR15554 Part Number: 13884 & 13888 MODEL NUMBER: ___________________ Rev. 2 800-456-7100 I www.paladinlcg.com 503 Gay Street, Delhi, IA 52223, United States of America 2/19/09...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................2 GENERAL INFORMATION ..................2 SERIAL NUMBER ....................2 OWNER AND OPERATOR SAFETY INFORMATION SAFETY STATEMENTS ................3 SAFETY PRECAUTIONS ................4-5 SAFETY SIGNS .................... 6-7 SPECIFICATIONS ....................8-9 MOUNTING ......................10 HYDRAULIC CONNECTION ................... 11 SETUP ........................ -
Page 4: Introduction
FFC at the telephone number or address listed on the cover of this manual. Keep this manual available for reference whenever this product is being handled or used. Provide this manual to any new owners and/or operators. -
Page 5: Safety Statements
SAFETY STATEMENTS THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. DANGER THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. - Page 6 GENERAL SAFETY PRECAUTIONS WARNING! PROTECT AGAINST FLYING DEBRIS Always wear proper safety glasses, goggles or a face shield when driving pins in or out, or when any operation causes dust, flying debris, or any other hazardous material. WARNING! LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them.
- Page 7 GENERAL SAFETY PRECAUTIONS WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the function, safety, life, and performance of the attachment. When making repairs, use only the manufacturer’s genuine parts, following authorized instructions. Other parts may be substandard in fit and quality.
- Page 8 SAFETY SIGN LOCATIONS The diagram on this page shows the location of the decals used on the FFC Box Scraper. The decals are identified by their part numbers, with reductions of the actual decals located on the following page. Use this information to order replacements for lost or damaged decals. Be sure to read all decals before operating the attachment.
-
Page 9: Safety Signs
SAFETY SIGNS PART # 40150 WARNING! READ MANUAL PART # 50-0724 WARNING! HIGH PRESSURE FLUID PART # RDL3155 RED REFLECTIVE TAPE PART # 50-0737 WARNING! PINCH POINT HAZARD 2/19/09 MR15554... -
Page 10: Specifications
Exceeding any of the maximum recommended prime mover specifications CAN result in damage to this product and WILL void all FFC warranties. DESCRIPTION SPECIFICATIONS Weight of Prime Mover without Box Scraper 20,000 lbs. maximum Category of Prime Mover's 3-Point Hitch Category II only Hydraulic Pressure Output... - Page 11 BOLT TORQUE BOLT TORQUE SPECIFICATIONS GENERAL TORQUE SPECIFICATION TABLES given. Always use grade 5 or better when replacing bolts. SAE BOLT TORQUE SPECIFICATIONS NOTE: The following torque values are for use with extreme pressure lubricants, plating or hard washer applications Increase torque 15% when using hardware that is unplated and either dry or lubricated with engine oil.
-
Page 12: Mounting
3. Carefully raise the 3-point hitch to check clearances and to verify that all mounting procedures have been successfully completed. IMPORTANT Lubricate all grease fittings before connecting this product to your prime mover's hydraulic system. Refer to BOX SCRAPER MAINTENANCE and follow the instructions 2/19/09 MR15554... -
Page 13: Hydraulic Connection
BOX SCRAPER HYDRAULIC CONNECTION READ AND UNDERSTAND ALL SAFETY STATEMENTS Read all safety decals and safety statements in all manuals before beginning any Snow Blower hydraulic connection. Know and obey all OSHA regulations, local laws, and other professional guidelines for your operation. Know and follow good work practices when assembling, maintaining, repairing, mounting, removing, or operating this equipment. -
Page 14: Setup
Operating this product with the ripper shanks only partially extended into the ground CAN result in damage to this product and WILL void all FFC warranties. 4. Restart your prime mover and raise the 3-point hitch. Completely retract the hydraulic cylinder to extend the ripper shanks to their lowest and locked position. -
Page 15: Operation
Remember that you Box Scraper is not your bulldozer and is not designed to remove pavement, uproot trees, etc. - Page 16 BOX SCRAPER MAINTENANCE READ AND UNDERSTAND ALL SAFETY STATEMENTS Read all safety decals and safety statements in all manuals prior to operating or working on this equipment. Know and obey all OSHA regulations, local laws, and other professional guidelines for your operation. Know and follow good work practices when assembling, maintaining, repairing, mounting, removing, or operating this equipment.
-
Page 17: Maintenance
MAINTENANCE MAINTENANCE RECORD Use this log to record maintenance performed on the attachment. Maintenance Procedure Performed Date Comments Performed 2/19/09 MR15554... -
Page 18: Service
BOX SCRAPER SERVICE READ AND UNDERSTAND ALL SAFETY STATEMENTS Read all safety decals and safety statements in all manuals prior to operating or working on this equipment. Know and obey all OSHA regulations, local laws, and other professional guidelines for your operation. Know and follow good work practices when assembling, maintaining, repairing, mounting, removing, or operating this equipment. - Page 19 BOX SCRAPER SERVICE (continued) READ AND UNDERSTAND ALL SAFETY STATEMENTS Read all safety decals and safety statements in all manuals prior to operating or working on this equipment. Know and obey all OSHA regulations, local laws, and other professional guidelines for your operation. Know and follow good work practices when assembling, maintaining, repairing, mounting, removing, or operating this equipment.
-
Page 20: Parts Illustration
BOX SCRAPER PARTS ILLUSTRATION 2/19/09 MR15554... - Page 21 BOX SCRAPER PARTS LIST ITEM QTY. 13884 13888 DESCRIPTION 07-10058 Shoulder Screw .63" X .75" (.5"-13) Zinc Plated LAF3871 07-10163 Reversible Cutting Edge .63" X 8" Curved with Square Holes 07-10187 Tube Round 1.244" X 1.010" X .75" Hardened 07-10188 Pin Cat II Top Link 1"...
-
Page 22: Warranty
Limited Warranty Except for the Excluded Products as described below, all new products are warranted to be free from defects in material and/or workmanship during the Warranty Period, in accordance with and subject to the terms and conditions of this Limited Warranty. Excluded Products.
