Summary of Contents for FFC AUTORAKE LAF6866

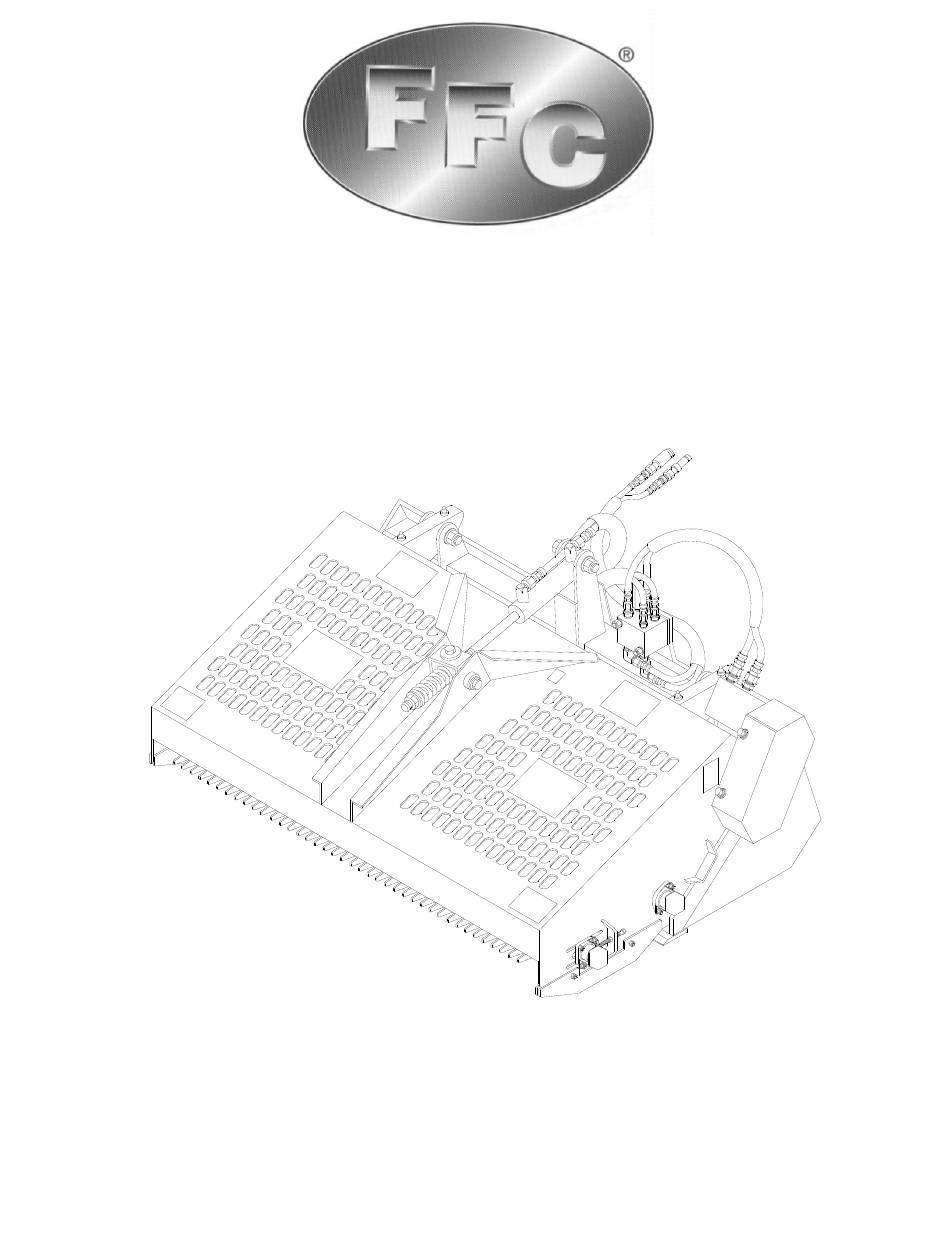

- Page 1 Farmers’ Factory Company ® AUTORAKE OWNER'S & OPERATOR'S MANUAL 100 EAST LEE ROAD Models covered: LEE, IL 60530 LAF6866, 1-800-747-2132 LAF6876 06-23-00 OWNER'S & OPERATOR'S MANUAL FFC PART # MR15595 FARMERS’ FACTORY COMPANY...
-
Page 2: Table Of Contents
FFC at the telephone number or address listed on the cover of this manual. -
Page 3: Owner And Operator Safety Information
Translations of this manual into other languages are available by submitting an order to FFC. The best safety device is a careful operator. FFC and your dealer ask that YOU be that careful, responsible equipment operator. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WORK SAFELY - A CAREFUL OPERATOR IS THE BEST INSURANCE AGAINST ACCIDENTS !! SECTION 1 • Use the right tool for the job at hand. • Make sure that your tools are in good condition WARNING for performing the desired function. Obey all the safety instructions listed in •... - Page 5 / injury. quick-attach manufacturer. • If this product does not fit properly, contact FFC WHEN DEALING WITH HYDRAULICS DURING ANY before operating. TYPE OF ASSEMBLY, OPERATION, MAINTENANCE, •...
-
Page 6: Safety Signs
• Safety signs are available, free of charge, from your dealer or from FFC. PLACEMENT OR REPLACEMENT OF SAFETY SIGNS ITEM 1 1. Clean the area of application with non-flammable solvent, and then wash the same area with soap and water. -
Page 7: Connection
POWER UNIT SPECIFICATIONS IMPORTANT Exceeding any of the maximum recommended power unit specifications CAN result in damage to this product and WILL void all FFC warranties. DESCRIPTION SPECIFICATIONS Rated net Engine Horsepower of Power Unit 110 maximum Weight of Power Unit without Autorake 10,000 lbs. -
Page 8: Operation
IMPORTANT Attempting to pick up large rocks, large tree branches, etc. CAN result in damage to this product and WILL void all FFC warranties. IMPORTANT Using this product to till compacted soil CAN result in damage to this product and WILL void all FFC warranties. -
Page 9: Maintenance
IMPORTANT Using heat to straighten bent rake chain teeth CAN result in damage to this product and WILL void all FFC warranties. • Check for bent rake chain teeth and cold straighten those teeth. BEFORE EXTENDED STORAGE (More than 2 month) •... -
Page 10: Service
® AUTORAKE SERVICE SAFETY FIRST!! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS (pages 2-5 of this manual) BEFORE BEGINNING ANY ® AUTORAKE SERVICE 1. Park your power unit on a level surface with this product properly attached. 2. Place your power unit’s transmission in “Park” and engage the parking brake. 3. -
Page 11: Illustration
PARTS ILLUSTRATION... -
Page 12: Parts List
Hydraulic Relief Valve: Male #10 O-Ring Boss LAF4278 Hydraulic Elbow: 90 Degree, Male #10 O-Ring Boss To Male #10 JIC 1 Contact FFC To Obtain The Correct Hydraulic Hose Quick Coupler: #10 Female O-Ring Boss, Couplers (And Possibly Adapters). With Male Connection... - Page 13 ® AUTORAKE PARTS LIST (Continued) LAF6866 LAF6876 ITEM QTY. 66” 76” DESCRIPTION LAF6824 Connecting Link: #80 Double Pitch LAF6867 LAF6877 Bucket Weldment LAF6868 LAF6878 Main Housing LAF6869 LAF6879 Rake Chain Shaft: Idler LAF6870 LAF6880 Rake Chain Shaft: Drive LAF6871 LAF6881 Rake Chain Weldment RHW1203 Hex Head Cap Screw: 3/8”...
-
Page 14: Specifications
NUMBERS FROM HYDRAULIC CYLINDER ILLUSTRATION LAF4105 Barrel: 2” I.D. x 8-1/2” Stroke With Internal Cross Tube End LAF4106 Shaft: 1” Dia. With Turned Down 5/8-18 Threaded End LAF4107 Head: 1” I.D., Nominal LAF4108 Piston: 2” O.D. x 5/8” I.D., Nominal RHW8605 Nut: 5/8”...
