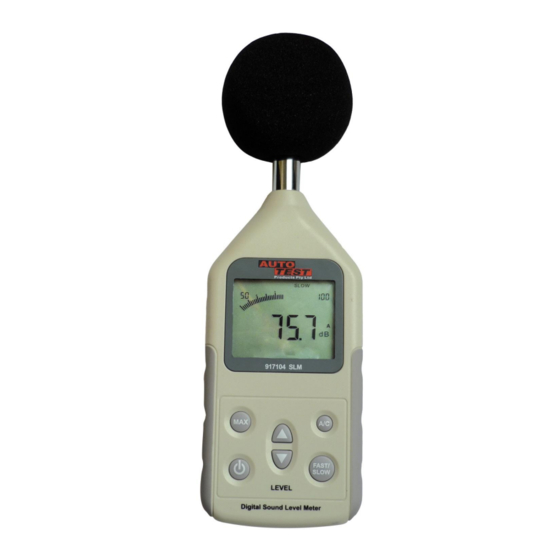

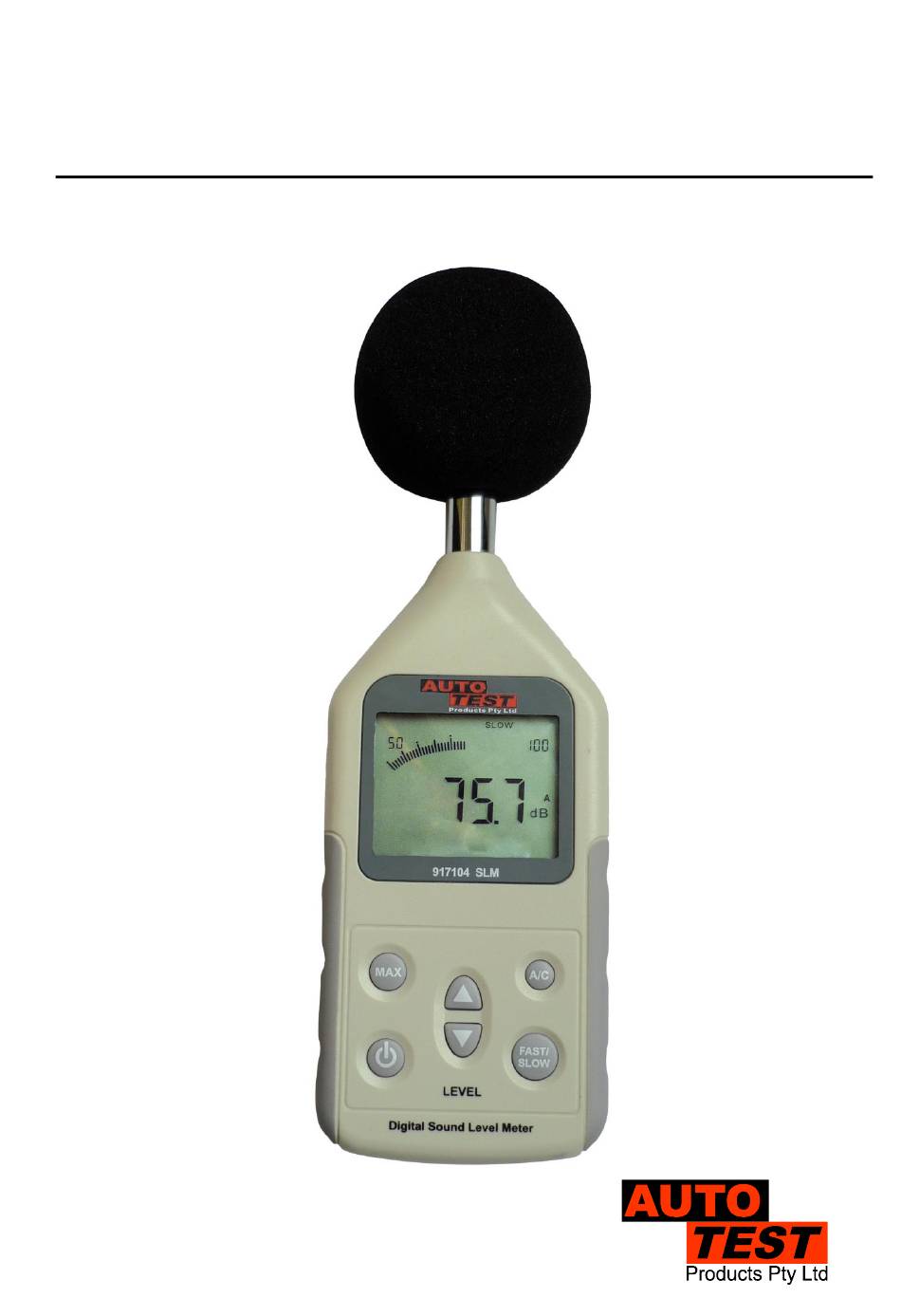

- Page 1 User Manual Version 1.1 TEST™ AUTO Digital sound level meter...
- Page 2 Precautions: Please read this operation manual carefully before using this equipment for correct operations. This equipment has been designed to meet the measurement requirement of Safety Engineers, Health, Industrial Safety offices and Sound Quality control in various environments. Features: 1) This unit was designed according to the IEC651 TYPE 2 & ANSI S 1 .4 TYPE 2 for sound level meters.
- Page 3 16) Self calibration time: 10 sec (every turn on) 17) Operating Temperature: 0C to 40C Operating Humidity: 10% to 80% RH I8) Storage Temperature: - I0C to 60C Storage Humidity: 10% to 70%RH 19) Dimensions: 265(L)*72(W)*35 (H) mm 20) Weight: 300g (including batteries) Calibration Procedures: Use a Standard Acoustic Calibrator.
- Page 4 Name and Functions: 1) Electric Condenser Microphone. 2) LCD Display. 3) Power switch 4) Level range control switch; 30dB—80dB; 50dB—l00dB; 60dB—10dB; 80dB—l30dB 5) Maximum value hold switch. (MAX) 6) Frequency weighting select switch. A: A weighting for general sound level measurements. C: C- weighting for checking the low frequency content of noise.
- Page 5 LCD Display Description: 1) Level range. 2) Instantaneous sound pressure level. 3) Low battery mark. 4) Maximum value is held during measurement. 5) Measured value. 6) Measurement Unit. 7) Frequency weighting A/C. 8) Level range Bar graph. 9) Over Range Indicator. 10) Slow time weighting.
- Page 6 Pre-operation: 1) Use a Screwdriver to open the battery door and install four 9V battery in the battery compartment. 2) Install battery door with Screwdriver. 3) When the battery voltage drops below the operating voltage, a symbol appears, please replaced with a new one. 4) When the DC adapter is used, insert the plugs (3.5) of the adapter into the DC 9V connector on the side panel.
- Page 7 Cautions 1) Do not operate the unit in an environment of high temperature and humidity. 2) Please take the battery out from the unit if not in use for any extended period of time. 3) When using the unit in the presence of wind, it is recommended to fit the windscreen to avoid undesired signals.
- Page 8 TEST AUTO Products Pty Ltd. 61-63 Parsons st. Kensington, VIC 3031 Australia Enquiries: (+61 3) 8840 3000 Service: (+61 3 8840 3016 Sales: (+61 3) 8840 3017 Fax: (+61 3) 8840 3099 Email: service@autotest.net.au sales@autotest.net.au info@autotest.net.au www.autotest.net.au...
