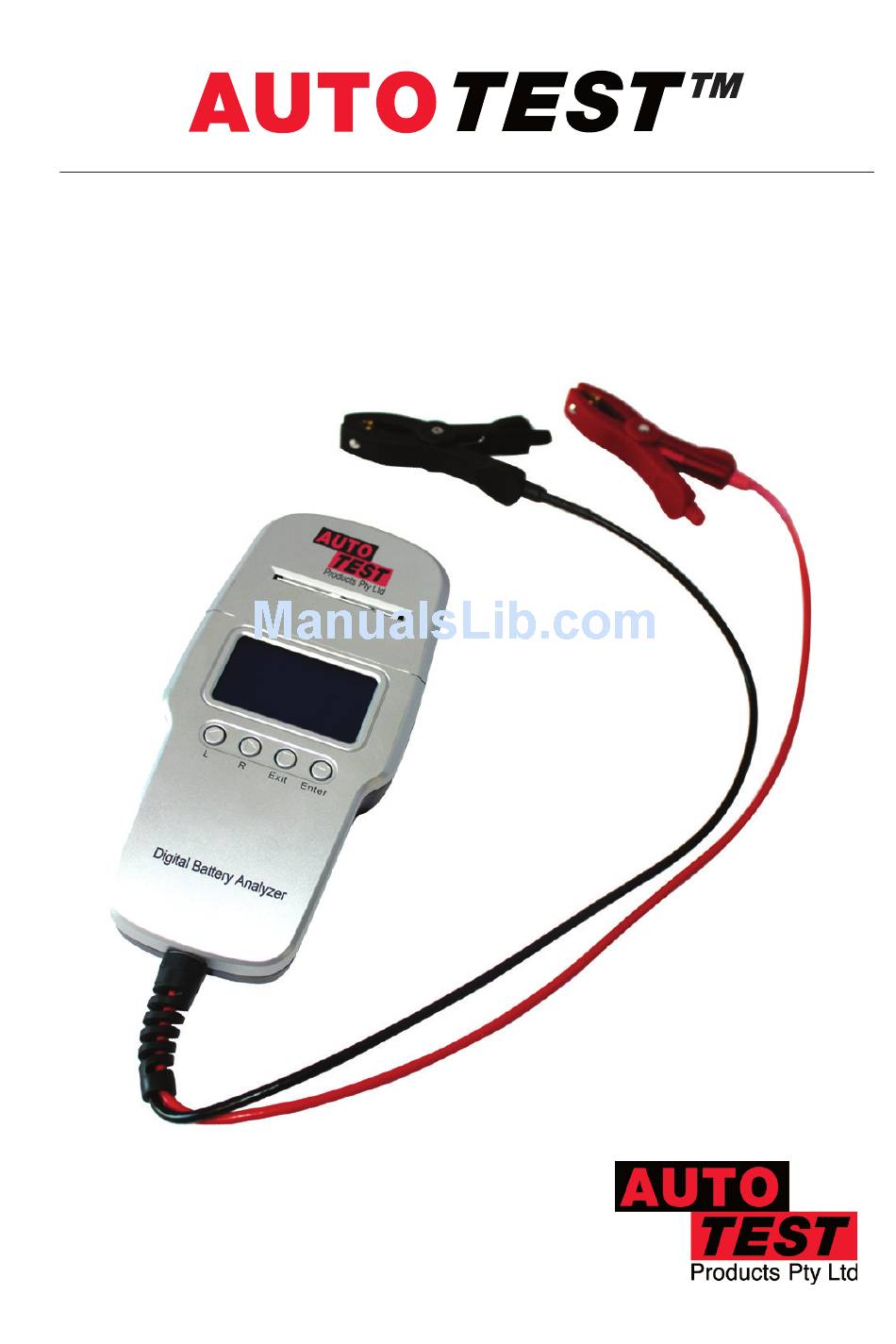

  • Page 1 Battery Analyzer User’s Manual Version 1.1...
  • Page 2 Caution This analyzer is used to test 12 volt automotive batteries. A freshly charged battery will show a higher than normal voltage. If this is the case, turn on headlights for a few minutes to allow the voltage to stabilise. Always connect directly to the leads of the battery terminals, as connection to a remote post or vehicle ground will affect test results.

  • Page 3: Table Of Contents

    Contents Page 4 Introduction Specifications Battery Suitability Product Features Installation and Testing Installation Battery Test State of Health (Battery Condition) Testing Charging System Test Start System Test Maximum System Test Maintenance Adjusting Date and Time Replacing Thermal Paper Roll Appendix: Conversion Tables of Battery Size Range EN and DIN Conversion Tables JIS Specification Conversion Tables...

  • Page 4: Introduction

    Frequency Of Testing Range: 100Hz Packing Dimensions: 320 x 240 x 55mm Product Dimensions: 207 x 103 x 37mm Battery Suitability This battery analyzer is suitable for batteries using the following capacity rating standards and ranges: • CCA: 100-1700 • IEC: 100-1000 •...

  • Page 5: Product Features

    Product Features 1. Thermal paper roll holder and slot 2. Display shows options and data output 3. Right key for selecting functions and data 4. Left key for selecting functions and data 5. Exit key for clearing memory and exiting functions 6.

  • Page 6: Installation And Testing

    Installation Connect the clips to the appropriate battery terminal or post; red to positive, black to negative. Once the battery analyzer initialises, it will display the Language Selection screen. Select your language and press Enter to enter the main menu. To select one of the four test functions, use the L and R keys.

  • Page 7: State Of Health (Battery Condition)

    5. The results of the test will be shown on the display: • SOC: State of change • SOH: State of health • CCA/IEC/EN/JIS/DIN: Cold cranking as measured on the test • V: Battery voltage as measured on the test. •...

  • Page 8: Testing

    Testing Charging System Test 1. Connect analyzer to battery terminals. 2. Select Charging System Test. 3. Start the engine and bring it to 2000RPM for about 15 seconds. 4. Analyzer displaying a countdown to 00. 5. Continue to idle engine whilst test results are being displayed. 6.
  • Page 9 3. Start the vehicle’s engine. 4. The start voltage will be displayed. If the figure is above 8.0V then the starter system is OK. Below 8.0V indicates a faulty starter system. If this is the case, check all connections, including the main battery and grounds connnections, wiring and the starter motor.

  • Page 10: Maintenance

    Replacing the Thermal Paper Roll 1. To access the paper roll, slide the access cover up and away from the battery analyzer. 2. Connect the analyzer to a suitable battery. Place the cut edge of the new paper roll under the black rubber roller.

  • Page 11: En And Din Conversion Tables

    Appendix Conversions Tables of Battery Size Range EN and DIN Conversion Tables Specification Specification Type Same Type Type Same Type 52805 52815 56420 56322 88066 53517 56530 56618 56638 53520 53521 53522 56618 56619 56620 53625 53638 53836 56633 56647 56641 53646 53621...
  • Page 12 EN and DIN Conversion Tables Continued Specification Specification Type Same Type Type Same Type 54590 58838 58833 88092 54827 59040 59017 59018 55040 88056 59218 59219 55041 55042 59226 59215 55044 55414 88056 59514 55046 59518 59519 55056 59615 59616 55057 54827 88156...

  • Page 13: Jis Specification Conversion Tables

    EN and DIN Conversion Tables Continued Specification Specification Type Same Type Type Same Type 56077 56530 67043 67045 1000 56091 55800 68032 38034 1000 56111 55048 70029 70038 70027 1050 56218 55092 70036 68040 68021 56219 56216 71014 71015 1150 56220 72515 1150...
  • Page 14 JIS Specification Conversion Tables Continued Specification Specification JIS (New) JIS (Old) MF CMF JIS (New) JIS (Old) 28B19R NS40S 70D23R 35-60 28B19L NS40LS 70D23L 25-60 32B20R NS40 75D23R 32B20L NS40LS 75D23L 32C24R 240 325 75D26R F100-5 32C24L N40L 240 325 75D26L F100-5L 34B17R...
  • Page 15 JIS Specification Conversion Tables Continued Specification Specification JIS (New) JIS (Old) MF CMF JIS (New) JIS (Old) 46B24L NS60L 325 360 130E41L NX200-10L 46B24RS NS60S 325 360 130F51R 46B24LS NS60LS 325 360 130F51L 46B26R 145F51R NS150 46B26L 145F51L NS150L 46B26RS 145G51R N150 900 1100...
  • Page 16 279 Normanby Road, Port Melbourne VIC 3207 tel +613 9647 9797 fax +613 9646 3427 sales@autotest.net.au www.autotest.net.au...
