Summary of Contents for SmartWitness CP4

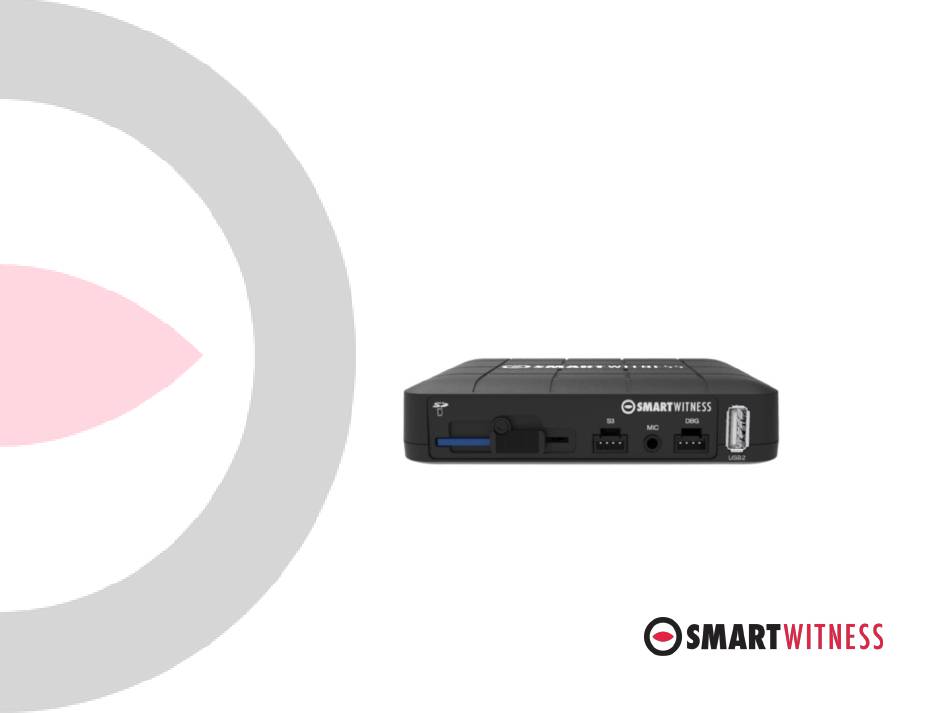

- Page 1 SmartWitness CP4 Device Configuration Guide This is Video Telematics.
- Page 2 4. Click “Save to apply to SD card 5. Eject Card safely from your PC CLICK HERE FOR VIDEO DEMONSTRATION *SD cards can also be removed from the CP4 to review video and data. For this, the SmartWitness PC viewer software is required which you can download here or visit Support.smartwitness.com...
-
Page 3: Device Tab
Delayed Power Shutdown: Amount of time CP4 stays powered on after ignition is turned off. Wakeup Interval: Time interval in which the CP4 will automatically power up again after shutdown Register Interval: How long the CP4 stays powered on during the wakeup interval. -
Page 4: Record Tab
5 minutes (Continuous Mode option only) Tamper Detection ensures that MDT files are not tampered/manipulated. When using SmartWitness PC software, any MDT file which is not an original MDT file will populate a warning. Tamper setting... - Page 5 Event Tab – G-Sensor *G-Sensor Sensitivity Settings Ecall is a severe impact G-Sensor which can be configured to send emergency notifications separately from lower level shock events. Check this box to increase G-Sensor threshold at higher vehicle speeds.* When checked, only Ecall and Shock events will trigger (accel, brake, and turn events will be ignored) *See pg 10 for more details on G-Sensor thresholds.
- Page 6 Also the input type should be selected (NC/NO, or 12V ON/OFF). NOTE: Alarm4 may not be supported by older versions of CP4 hardware. CP4 devices shipping from August 2018 and forward will support this 4 alarm input.
- Page 7 Smart API both adjust the standard UTC time to local time automatically SD Card auto format feature enables the CP4 to perform automatic maintenance on the SD cards when there is an issue. SD cards need to be re- formatted occasionally over time.
-
Page 8: Connectivity Tab
WPA/WPA2 encryption and have a password of at least 8 characters (cannot be an open network). You can set up to 10 WiFi SSIDs. CP4 will scan for as many networks as are added here in its settings... -
Page 9: Server Tab
URL and (if necessary) the License Key to enter here. Transmit Live Tracking Data: Check to enable http posts from the CP4 to server. Livetrack2 contains GPS coordinates. LiveTrack3 does not. Transmit Event Data: Check to enable CP4 posting event notification and images to the server. - Page 10 CP4 G-Sensor Threshold Table Low Speed Table High Speed Table ACCSENX ACCSENY ACCSENZ ACCSENX ACCSENY ACCSENZ Sudden start/ Sudden start/ Sudden start/ Sudden start/ impact Quick Turn Impact Quick Turn Level axis Level sudden stop1 sudden stop2 sudden stop1 sudden stop2...

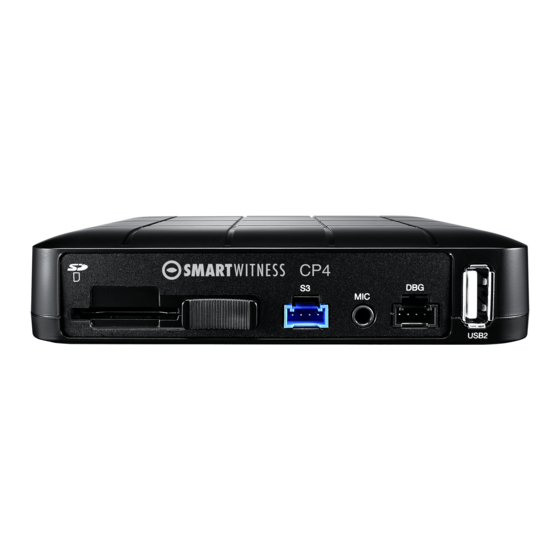

- Page 11 CP4 Hardware CP4 Installation guide can be downloaded here...
- Page 12 SmartWitness USA SmartWitness UK 1016 Lunt Avenue Unit 2 Valley Point, Beddington Farm Schaumburg, IL 60193 USA Road, Croydon, CR0 4WP, UK smartwitness.com This is Video Telematics.
