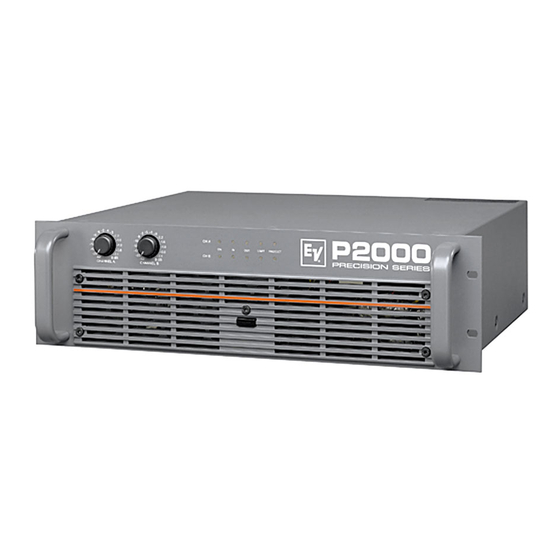

Electro-Voice Precision P2000 System Application Manual
  1. Manuals
  2. Brands
  3. Electro-Voice Manuals
  4. Speaker System
  5. XI 1191
  6. System application manual

Electro-Voice Precision P2000 System Application Manual

Electrovoice precision p2000: reference guide
Hide thumbs

Advertisement

Quick Links

Download this manual
System Applications

Advertisement

loading
Need help?

Need help?

Do you have a question about the Precision P2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Electro-Voice Precision P2000

Summary of Contents for Electro-Voice Precision P2000

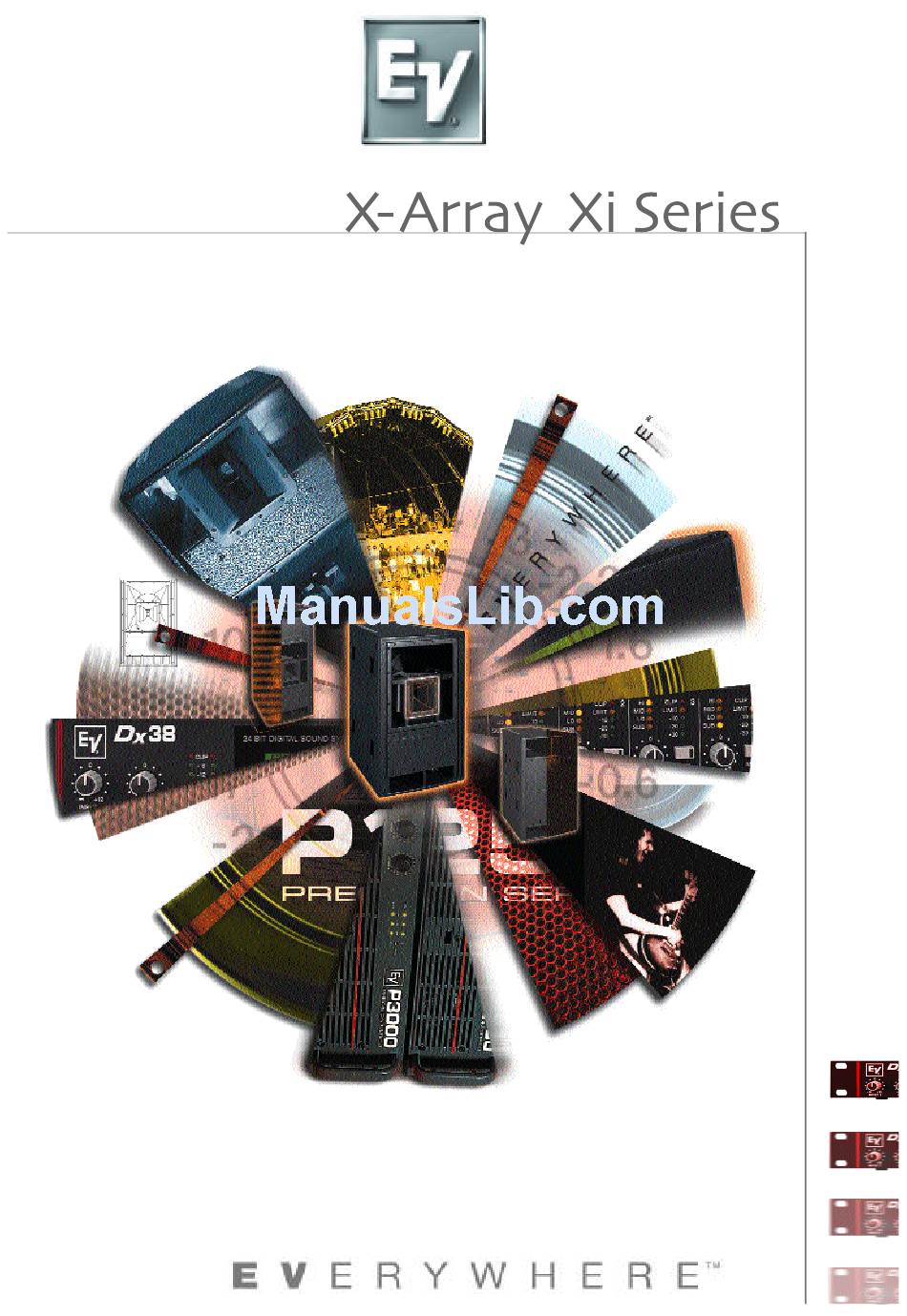

  • Page 1 System Applications...
  • Page 2 Right L: 2 “ R: 2 “ L: 12 “ R: 12 “ Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Hi L Lo R Options P2000 may be used for 12” alternatively. Xi 1122 Xi 1122 2 x 120°-150°...
  • Page 3 L: 2 “ R:2 “ L: 15 “ R:15 “ Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Hi L Lo R Options P2000 may be used through out (deduct ~3 dB on HF input level).
  • Page 4 Right L: 2 “ + 10” R: 2 “ + 10” L: 12 “ R: 12 “ Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Out 4 Hi L Lo R Hi R Options MF and HF horns could be rotated for vertical use.
  • Page 5 2 x 18 “ 2 x 120°-150°, 4 X 80° 15-20 meters 4,300 Watts * OS V1.05, might change w/o prior notice Out 4 Preset * Hi R #35 (HP on 1&3 to 80Hz) #42 (adjust Level on Out1) XI 1122...
  • Page 6 For dance floor use 1 Xi 1152 per corner. If no separate feed is available for sub use sum L+R. For 3-way stereo see 3.1 XI 1152 Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Hi L Lo R Options P3000 may be used through out.
  • Page 7 Out 1 Main Left Main Right Lo L Comments If no seperate sub signal available, use Sum L+R. Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Out 4 Hi L Lo R Hi R Options MF and HF horns could be rotated for vertical use.
  • Page 8 R:10“ + 2 “ R: 1 x 18 “ L:1 x 18 “ 3 x 100° 20-35 meters 4,400 Watts * OS V1.05, might change w/o prior notice Out 4 Preset * Hi C #47(Out1&2), #48 (route Out4 to In2)
  • Page 9 S: 2 x 18” S:2 x 18” R: 2 x 12” R:10” + 2” 3 x 100° 20-25 meters 6,300 Watts * OS V1.05, might change w/o prior notice Out 4 Preset * Hi C #49(Out1&2), #50 (route Out4 to In2)
  • Page 10 S: 2 x 18 “ S:2 x 18 “ 2 x 100° + 2 x 85° 25-30 + 20-25 meters 7,650 Watts * OS V1.05, might change w/o prior notice Out 4 Preset * Hi C Hi Si #42(Out1), #35 (Out 3&4)
  • Page 11 Left Right L: 2 “ L: 15 “ L:2 x 18 “ R:2 x 18 “ Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Lo L Mid L Hi L Lo R Mid R...
  • Page 12 In 2 Main Left Main Right Comments Xi 1122 could be positioned for dedicated horizontal angles Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Lo L Mid L Hi L Lo R Mid R...
  • Page 13 In 2 Main Left Main Right Comments Xi 1152 could be positioned for dedicated horizontal angles Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Lo L Mid L Hi L Lo R Mid R...
  • Page 14 Main Right Comments Preset #49 is overlapped mode for maximum vertical directivity. For max. SPL use 250 Hz X-Over setting. Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Mid L Hi L Mid R...
  • Page 15 R:2 “ L: 12 “ R:12 “ L: 2 x 18 “ R:2 x 18 “ Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Lo L Mid L Hi L Lo R Mid R...
  • Page 16 S u b Main Right Comments Connect to OP Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Out 4 Preset * Lo L Mid L Hi L #50 (Out1, route to In2), #42 (Out2: HP from 80Hz to 50Hz)
  • Page 17 Lo R Comments 4 x Xi 1082 Sub: 2 x 18” Sub:2 x 18” Capacity Horizontal coverage: Average distance: Total amp. power: Out 2 Out 3 Out 4 Preset * Mid L Hi L #50 (route Out4 to In2) Mid C...
  • Page 18 Dx38: Dx 38 configuration Dx38 In 1 In 2 Main Left Main Right Comments Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Sub L Lo L Mid L Sub R Lo R Mid R...
  • Page 19 Main Left Main Right Comments Very “punch” orientated set-up. For longer narrow venues stack Xi 1183. Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Sub L Lo L Mid L Sub R Lo R...
  • Page 20 If Low channel is operated in mono, the Sub signal could be handle through the 2nd Dx38 – the 3rd ist not needed. to OP Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Sub L Lo L Mid L...
  • Page 21 Main Right Sub Mono Comments to OP R: 2 x 18 “ (2181) R: 2 x 18 “ (2181) Capacity Horizontal coverage: Average distance: Total amp. power: Out 1 Out 2 Out 3 Sub L Lo L Mid L Sub R...
  • Page 22 60 meters 21,000 Watts * OS V1.05, might change w/o prior notice Out 4 Preset * Hi L Hi C #49 (Out 3&4), #36 (Out1) Hi R (4 Way) R:2 “ R: 18 “ (11 8 3) R: 18 “ (2181)

  • Page 23: Specifications

    System Applications Xi Series Specifications S p e c i f i c at i o n s Xi 1123/106F Frequency Response 60 Hz - 20 kHz Power Handling Long-term (LF/MF/HF, LF/HF) 300/300/75 W, 300/300 W Sensitivity (1W/1m) Triamp (LF/MF/HF) 98.0/109.0/11.7 dB Biamp (LF/FR) 101.4/106.7 dB...
