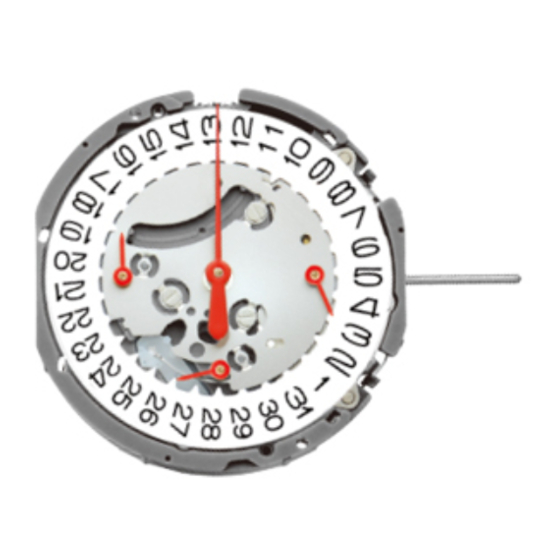

- Page 1 11032021 TECHNICAL GUIDE & PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) ANALOGUE QUARTZ...
-
Page 2: Specification
Version-01 SPECIFICATION Cal.VK6 Series (VK63A/67A) Cal. No. VK63A VK67A Item Movement φ30.80 mm × 29.10 mm ( 3H - 9H ) Outside diameter Movement φ29.00 mm Casing diameter size Total height 5.10 mm 2 Hands (hour, minute) Date Calendar Small second hand... - Page 3 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil ○ ○ → Disassembling procedures Figs. Moebius 9010 NORMAL QUANTITY ○ ○ → Reassembling procedures Figs. Moebius 9030 SUFFICIENT QUANTITY ○ 0012 354 Date indicator maintaining plate screw ○...
- Page 4 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil ○ ○ → Disassembling procedures Figs. Moebius 9010 NORMAL QUANTITY ○ ○ → Reassembling procedures Figs. Moebius 9030 SUFFICIENT QUANTITY ○ 0273 038 Hour wheel ○ 0012 354 Switch lever holder screw ○...
- Page 5 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil ○ ○ → Disassembling procedures Figs. Moebius 9010 NORMAL QUANTITY ○ ○ → Reassembling procedures Figs. Moebius 9030 SUFFICIENT QUANTITY ○ ○ 0016 121 0016 121 Switch spring screw Switch spring screw ○...
- Page 6 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil ○ ○ → Disassembling procedures Figs. Moebius 9010 NORMAL QUANTITY ○ ○ → Reassembling procedures Figs. Moebius 9030 SUFFICIENT QUANTITY ○ ○ 0186 002 ** 0016 121...
- Page 7 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil ○ ○ → Disassembling procedures Figs. Moebius 9010 NORMAL QUANTITY ○ ○ → Reassembling procedures Figs. Moebius 9030 SUFFICIENT QUANTITY ○ 0231 059 Third wheel and pinion ○...
- Page 8 Version-01 PARTS CATALOGUE Cal.VK6 Series (VK63A/67A) Remarks: Different parts for each CAL. Cal. Parts code Parts name Parts form VK63 VK67 Intermediate small hour hand wheel and pinion ○ 0817 048 Intermediate date wheel and pinion 0157 012 Small hour hand wheel ○...
-
Page 9: Technical Guide
Version-01 TECHNICAL GUIDE Cal.VK6 Series (VK63A/67A) 1.Detailed assembling of chronograph wheel [ NOTE ] There is a mark on parts. Parts are set in order of the mark as shown in the table below. Image example of the mark [ Cal.VK63 ] [ Cal.VK67 ]... - Page 10 Version-01 TECHNICAL GUIDE Cal.VK6 Series (VK63A/67A) Oil quantity Lubricating : Types of oil Moebius 9010 NORMAL QUANTITY SUFFICIENT QUANTITY 2.Oiling spot ○ Hammer There must be oil within the range of the arrow. ○ Lower plate for chronograph bridge Note *1: Oiling should be done on the ...
- Page 11 Version-01 TECHNICAL GUIDE Cal.VK6 Series (VK63A/67A) 3.Spring setting position ○ Train wheel stop lever ○ Lower plate for chronograph bridge ○ Hammer operating lever (A) ○ Hammer ○ Hammer operating lever ○ Chronograph coupling lever Setting position 4.Switch lever (A) and (B) setting position ○...
- Page 12 Version-01 TECHNICAL GUIDE Cal.VK6 Series (VK63A/67A) 5.To remove the winding stem 1) Set the winding stem to normal position. 2) Pull out the winding stem while pushing "A". Push "A" 6.To remove or install the battery 1) Remove the hook of the switch spring's battery clamp.
- Page 13 Version-01 TECHNICAL GUIDE Cal.VK6 Series (VK63A/67A) 8.How to install the hands Place the movement directly on a flat metal plate, or something alike to install the hands. Metal plate [ Note: Second / Minute chronograph hands setting ] (1) Push button (A) ( Chronograph start )
-
Page 14: Operation
Version-01 OPERATION Cal.VK6 Series (VK63A/67A) DISPLAY AND CROWN / BUTTON OPERATION << VK63 >> << VK67 >> *12 *1 Note *1: Hour hand *6: 24 hour hand Crown at first position *11: (Date setting) *2: Minute hand Chronograph hour hand... - Page 15 Version-01 OPERATION Cal.VK6 Series (VK63A/67A) [ Note ] It is not necessary to set the chronograph hands after the battery is exchanged. If the chronograph hands position are incorrect, following below procedure all the chronograph hands will be reset to "0" position.
