TMI Products VK83 Operation Manual

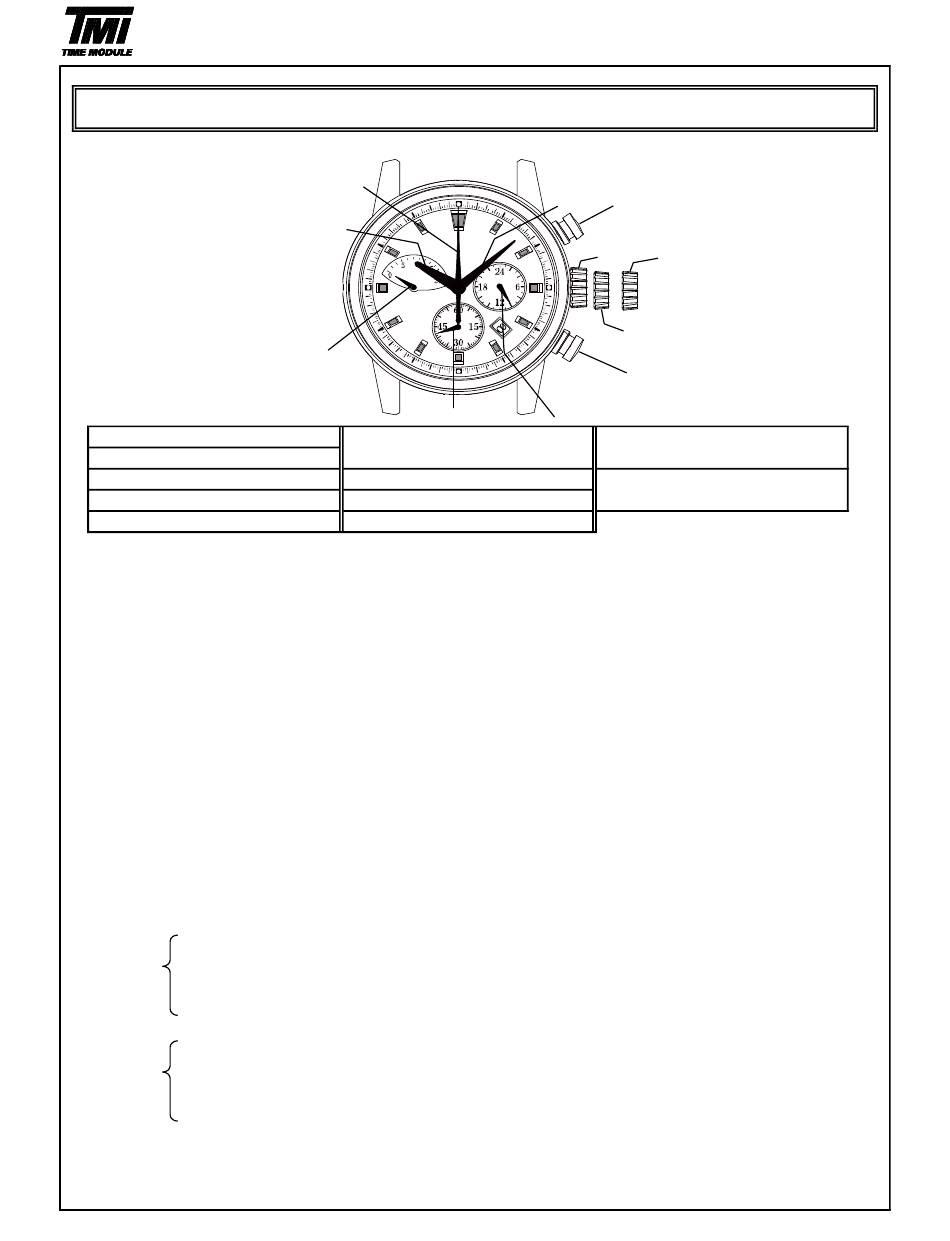

DISPLAY AND CROWN / BUTTON OPERATION
Note
*1: Hour hand
*2: Minute hand
*3: Chronograph second hand
*4: Small second hand
*5: 24 hour hand

1.How to set the time

1) Pull out the crown to the second click position.
2) Turn the crown to set hour and minute hands.
(Check that AM / PM is set correctly.)
3) Push the crown back into the normal position.
[ Note ]
If the crown is pulled to the second position while the chronograph is started, the chronograph hands
will continue to move. This is not a malfunction.

2.How to set the date

1) Pull out the crown to the first click position.
2) Turn the crown clockwise for date setting.
*Do not set the date between 9:00 P.M. and 3:00 A.M. as this will cause a malfunction.
3) Push the crown back into the normal position.

3.How to reset (after battery change)

It is possible to reset by the following two methods.
1) Set the crown to the normal position.
Method 1 2) Touch the AC terminal of circuit block and the switch spring with conductive tweezers
to reset the circuit.
3) The small second hand will move at two-second interval for 10 seconds.
1) Pull out the crown to the second click position.
Method 2 2) Press the button (B) for two seconds and release the button.
3) Push the crown back to the normal position.
4) The small second hand will move at two-second interval for 10 seconds.
* If the crown is operated within this 10 seconds, the two-second interval movement will not activate.
OPERATION
<< VK83 >>
*3
*1
*6
*4
Chronograph minute hand
*6:
(20 minute)
*7: Button (A) (START / STOP)
*8: Button (B) (RESET)
*9: Crown at normal position
*2
*7
*9 *11
*10
*8
*5
Crown at first position
*10:
(Date setting)
Crown at second position
*11:
(Time setting)
Version-01
Cal.VK83A
