- Page 1 INTERACTIVE MODULE PreciseTouch TRANSFORM ANY FLAT SURFACE into a TOUCHSCREEN QUICK INSTALLATION GUIDE...

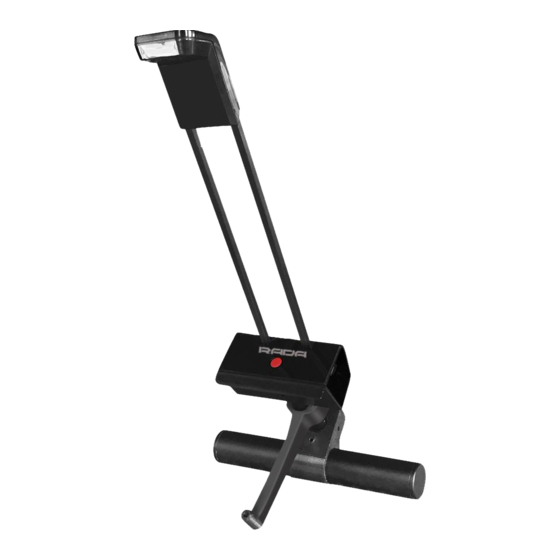

- Page 2 PRODUCT ARCHITECTURE Front View Back View Signal Indicator Scanner Base Calibration Button Micro USB Supporting Rod Counterweight CONNECTION DIAGRAM Video Control and Power Control and Power Video How to start using PreciseTouch: Step 1. Assemble PreciseTouch - attach the supporting rod to the counterweight, and then also add the PreciseTouch scanner component.
- Page 3 For Windows PC or MAC - press and release the Power button on PreciseTouch within 0.5 seconds. There will be a beep, indicating that the 4-point calibration has started. Tap on the cursor as it will appear on the edges of the working surface with the PrecisePen, starting with top-left. There will be beeps every time a point is calibrated.
- Page 4 PACKAGE CONTENT * Interactive Module PreciseTouch A-PT01 * Counterweight * Supporting Rod * Allen Wrench * Micro USB cable * PrecisePen A-PP01 * Mini USB cable * Quick Installation Guide SPECIFICATION PRECISETOUCH PRECISEPEN Model A-PT01 Model A-PP01 Display Size 20-80 inches Signal 940 nm IR Signal...
