Manual No. BLWR047
Rev. 1 February 2015
oPerAtinG mAnUAl

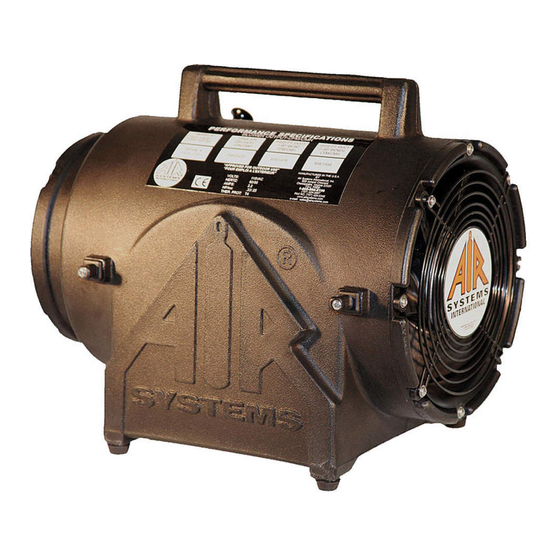

moDelS: cVF-8X220 AnD SVF-10X220
PortABle FAnS For HAZArDoUS locAtionS
II 2 G c
Ex d IIB T6 Gb
ITS 14 ATEX 17992X
0359
Air SyStemS internAtionAl, inc.
IECEx ETL 14.0010X
829 Juniper Crescent, Chesapeake, Va, 23320
Ex d IIB T6 Gb
Telephone (757) 424-3967
Toll Free 1-800-866-8100
Fax No. (757) 424-5348
http://www.airsystems.com
e-mail: sales@airsystems.com
Advertisement
Table of Contents
Related Manuals for AIR SYSTEMS INTERNATIONAL CVF-8X220
Summary of Contents for AIR SYSTEMS INTERNATIONAL CVF-8X220

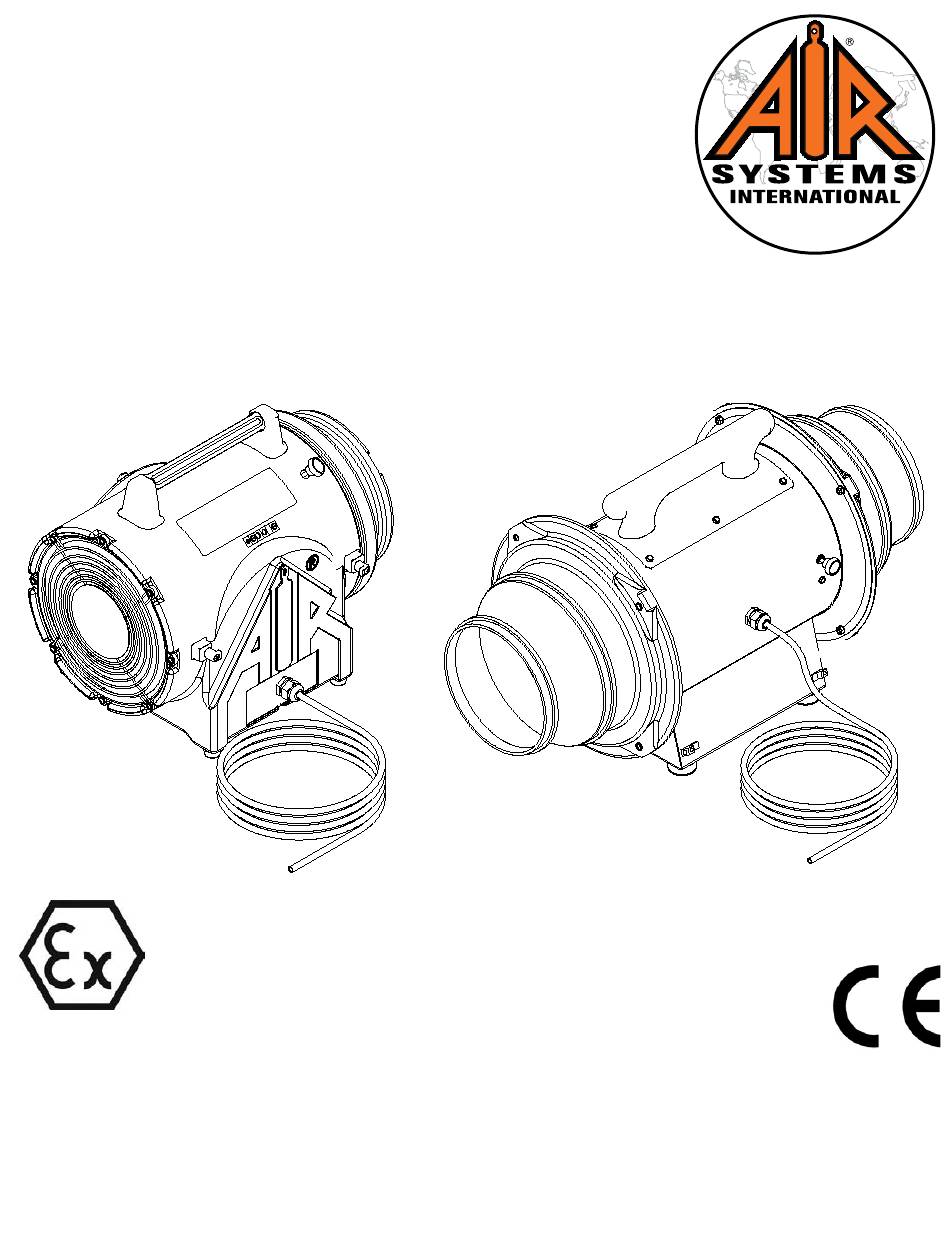

- Page 1 Manual No. BLWR047 Rev. 1 February 2015 oPerAtinG mAnUAl moDelS: cVF-8X220 AnD SVF-10X220 PortABle FAnS For HAZArDoUS locAtionS II 2 G c Ex d IIB T6 Gb ITS 14 ATEX 17992X 0359 Air SyStemS internAtionAl, inc. IECEx ETL 14.0010X 829 Juniper Crescent, Chesapeake, Va, 23320...
- Page 2 ITS 14 ATEX 17992X IECEx ETL 14.0010X Ex d IIB T6 Gb These fans manufactured by Air Systems International, Inc. conform to the relevant Essential Health and Safety Require- ments of the European Machinery Directives and evaluated to: ATEX: EN 13463-1: 2009...
-
Page 3: Operation
Set-UP, AnD cAre eXPloSion-ProoF PortABle FAn moDelS: cVF-8X220 AnD SVF-10X220 Start-Up And installation Secure a grounded electrical source that delivers 220vac, 50/60hz, and at a minimum 5 amps. If the blower is going to be used in a hazardous location, make certain the proper plug is used and the electrical receptacle is design to handle the plug rated for the hazardous location and in conformance with local electrical codes. -
Page 4: Warranty Disclaimer
WARRANTY DISCLAIMER Air Systems’ manufactured equipment is warranted to the original user against defects in workmanship or ma- terials under normal use for one year from the date of purchase. Any part which is determined by Air Systems to be defecti ve in material or workmanship will be, as the exclusive remedy, repaired or replaced at Air Sys- tems’... - Page 5 Attach all grounding wires and assure a complete circuit to the blower or fan in order to remove static charges. The Saddle Vent® is a registered trademark of Air Systems International, Inc. The Conductive Saddle Vent® is covered by U.S. and Foreign Patents...
-
Page 6: Safety Precautions
Note: If volatile or explosive vapors are suspected, use Air Systems’ explosion proof in-line fan, Model: SVF- 10X220 or explosion proof contractors fans, Models: CVF-8X220 or CVF-12EX22. Note: For confi ned space ventilation in non-hazardous locations, use Air Systems’ confi ned space ventilation kit, Model SV-CUP. -
Page 7: Setup And Operation
SetUP AnD oPerAtion SteP 1) Explosion-proof models should be fitted with an ATEX/IECEx approved explosion-proof plug (Killark P/N ELAP15232) to meet hazardous locations specifications. The plug should not be disconnected or connected in a hazardous environment. SteP 2) Place fan in a clean fresh air environment. Note: Inspect fan for damaged or worn parts. Inspect all ducting and couplings for possible air leaks prior to fan operation. -
Page 8: Performance Specifications
Flexcon Permanent Vinyl. Tip Clearance For Installed Fan, 3.00 mm (+1.0 mm/-1.5 mm) NAME DATE 10” EXPLOSION PROOF FAN WITH RED STEEL CONDUCTIVE HOUSING AIR SYSTEMS INTERNATIONAL PREPARED M. BONEY 4/1/14 220-230 VAC/50 Hz 829 JUNIPER CRESCENT DATE:... - Page 9 1/4” DIAMETER SHRINK TUBING, PVC 0.25 DECAL045 MOTOR ROTATION DECAL, PERMANENT OUTDOOR DECAL043 AIR SYSTEMS WORLD LOGO DECAL - 4” DIA. ILF-G GASKET, ROUND, 8 HOLES, FOR SVF FANS, SBR DECAL168 SERIAL NO. DECAL,CVF-8X220,SVF-10X220 DECAL169 PERF. SPEC. DECAL, CVF-8X220, SVF-10X220...
- Page 10 System components: model cVF-8X220 ATEX AND IECEx Certified Product no Unauthorized changes SAFety comPonent-no SUBStitUtion Bluffton Motor Works electric motor model no. 1933007427, part no. MTR043EX22 supplied with 7.62 mm lapp cable. Motor approvals: ATEX DEMKO 134885U, IECEx UL 12.0034U, INMETRO UL-Br 12.0360U...
- Page 11 System components: model cVF-8X220 SeQ. # item # DeScriPtion QUAntity CVF-FANCN 8” FAN, POLYPROPYLENE, POLYONE #PP-16CP/000-2HI CVF-MM MOTOR MOUNT, POLYPROPYLENE, POLYONE #PP-16CP/000-2HI DECAL168 SERIAL NO. DECAL,CVF-8X220,SVF-10X220 CVF8EXP-NM CONDUCTIVE POLYETHYLENE HOUSING, ICORENE 517-C FS10X350TS 10-24 X 3-1/2 FULLY THREADED STEEL STUD...
- Page 12 AcceSSory DrAWinG conDUctiVe cAniSter For cVF-8X220 CONDUCTIVE FLEXIBLE DUCTING CONDUCTIVE PLASTIC ICORENE C-517 CVF-8X220 rePlAcement DUct cAniSter CVF-CND6 Conductive Duct Canister with 6 Ft. (183 cm.) of Conductive Duct CVF-CND15 Conductive Duct Canister with 15 Ft. (457 cm.) of Conductive Duct CVF-CND25 Conductive Duct Canister with 25 Ft.
-
Page 13: Ventilation Kit
SADDle Vent® VentilAtion KitS cVFX25K220 VentilAtion Kit WitH cVF-8X220 25’ Conductive Duct Conductive Saddle Vent® Conductive Duct Canister with 6’ of Conductive Duct Conductive 90° Elbow Universal Mount SVF-10X220 10” AteX FAn SV-cUPcnD VentilAtion Kit 6’ and 15’ of Conductive Duct Conductive Saddle Vent®... - Page 14 Hazardous location & explosive Atmospheres Guide to Equipment Certification Requirements...
-
Page 15: Examination Certificate
eXAminAtion certiFicAte... - Page 16 Air SyStemS internAtionAl, inc. 829 Juniper Crescent, Chesapeake, Va, 23320 Telephone (757) 424-3967 Toll Free 1-800-866-8100 Fax No. (757) 424-5348 http://www.airsystems.com e-mail: sales@airsystems.com Printed in the U.S.A. © Copyright Air Systems International, Inc. 2015 All Rights Reserved...
