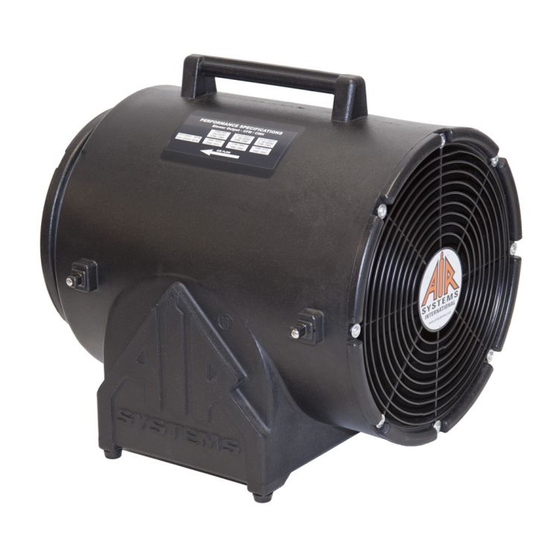

OPERATING INSTRUCTIONS AND REPLACEMENT PARTS
Models: CVF-8EXP / CVF-12EXP / SVF-10EXP
®
C
US
WArninG
this manual must be read carefully and followed by all persons who have or will have the responsibility
for using or servicing this equipment. this equipment will perform as designed only if used according
to the instructions. otherwise it could fail to perform as designed, causing personal injury or death.
Air SyStEMS intErnAtionAl, inC.
829 Juniper Crescent, Chesapeake, Va, 23320
Telephone (757) 424-3967
Toll Free 1-800-866-8100
Fax No. (757) 424-5348
www.airsystems.com.
e-mail: sales@airsystems.com
Advertisement
Related Manuals for AIR SYSTEMS INTERNATIONAL CVF-8EXP
Summary of Contents for AIR SYSTEMS INTERNATIONAL CVF-8EXP
- Page 1 OPERATING INSTRUCTIONS AND REPLACEMENT PARTS Models: CVF-8EXP / CVF-12EXP / SVF-10EXP ® WArninG this manual must be read carefully and followed by all persons who have or will have the responsibility for using or servicing this equipment. this equipment will perform as designed only if used according to the instructions.
-
Page 2: Warranty
The purchaser shall be solely responsible for compliance with all applicable Federal, State and Local OSHA and/or MSHA requirements. Although Air Systems International believes that its products, if operated and maintained as shipped from the factory and in accordance with our “operations manual”, conform to OSHA and/or MSHA requirements, there are no implied or expressed warranties of such compliance extending beyond the limited warranty described herein. - Page 3 Attach all grounding wires and assure a complete circuit to the blower or fan in order to remove static charges. The Saddle Vent® is a registered trademark of Air Systems International, Inc. The Conductive Saddle Vent® is covered by U.S. and Foreign Patents...
-
Page 4: Specifications
Specifications Motor Type 115 VAC, 60 Hz, 1/3 HP, 2.2 amps, .25 kw, Temp. Code T-4 Models: CVF-8EXP and SVF-10EXP Class I & II, Group C,D,E,F,G Motor Type 115 VAC, 60 Hz, 1.5 HP, 9.6 amps, 1.1 kw, Temp. Code T-4 Model: CVF-12EXP Class I &... -
Page 5: Setup And Operation
Set-Up and operation: StEP 1) Explosion-proof models should be fitted with an approved explosion-proof plug to meet hazardous locations specifications. See page 13 for ordering information. StEP 2) Place fan in a clean fresh air environment. Note: Inspect fan for damaged or worn parts. Inspect all ducting and couplings for possible air leaks prior to fan operation. - Page 6 System Components: Model CVF-8EXP...
- Page 7 QUAntity CVF-FANCN 8” FAN, POLYPROPYLENE, POLYONE #PP-16CP/000-2HI CVF-MM MOTOR MOUNT, POLYPROPYLENE, POLYONE #PP-16CP/000-2HI DECAL161 SERIAL NO. DECAL,CVF-8EXP AND SVF-10EXP CVF8EXP-NM CONDUCTIVE POLYETHYLENE HOUSING, ICORENE 517-C FS10X350TS 10-24 X 3-1/2 FULLY THREADED STEEL STUD HDWR070 BLACK ABS ON/OFF KNOB WITH 10-24 THREADS MTR043EXP EXPLOSION PROOF MOTOR WITH 25’...
- Page 8 System Components: Model CVF-12EXP DIMENSIONS: 19”L X 15”W X 17”H OUTSIDE DIA. OF INLET: 14 3/4” OUTSIDE DIA. OF OUTLET: 12”...
- Page 9 System Components: Model CVF-12EXP SEQ. # itEM # DESCriPtion QUAntity CVFFAN12EX 12” FAN, ANTI-STATIC CVF-MM12XP ALUMINUM MOTOR MOUNT DECAL226 SERIAL NO. DECAL,CVF-12EXP CVF-12NM-B CONDUCTIVE POLYETHYLENE HOUSING, ICORENE 517-C HDWR343 1/4-20 X 4” LONG SHAFT/KNOB HDWR344 1/4-20 ROD END FB1/4X075S 1/4-20 X 3/4” LONG STAINLESS STEEL BOLT FN1/4ESNSS 1/4-20 STAINLESS STEEL HEX NUT MTR076EXP...
- Page 10 System Components: Model SVF-10EXP...
- Page 11 1/4” DIAMETER SHRINK TUBING, PVC 0.25 DECAL045 MOTOR ROTATION DECAL, PERMANENT OUTDOOR DECAL043 AIR SYSTEMS WORLD LOGO DECAL - 4” DIA. ILF-G GASKET, ROUND, 8 HOLES, FOR SVF FANS, SBR DECAL161 SERIAL NO. DECAL,CVF-8EXP AND SVF-10EXP DECAL160 PERF. SPEC. DECAL, CVF-8EXP AND SVF-10EXP...
- Page 12 Conductive Canister / Ducting For CVF-8EXP and CVF-12EXP Conductive Canister / Ducting For CVF-8EXP CVF-CND6 Conductive 8” Duct Canister with 6 Ft. (183 cm.) of Conductive Duct CVF-CND15 Conductive 8” Duct Canister with 15 Ft. (457 cm.) of Conductive Duct CVF-CND25 Conductive 8”...
- Page 13 Explosion-Proof Plugs Explosion-Proof Plugs Available: Available For Explosion-Proof Products Conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas. “TURN TO ENGAGE” feature locks in plug and can be used to prevent accidental disengagement. Interchangeable with Crouse-Hinds Ark-Gard 2 and Appleton U-Line...
- Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Rev. 5 January 2019 Air SyStEMS intErnAtionAl, inC. 829 Juniper Crescent, Chesapeake, Va, 23320 Telephone (757) 424-3967 Toll Free 1-800-866-8100 Fax No. (757) 424-5348 http://www.airsystems.com e-mail: sales@airsystems.com Printed in the U.S.A. ©Copyright Air Systems International, Inc. 2019 All Rights Reserved...
