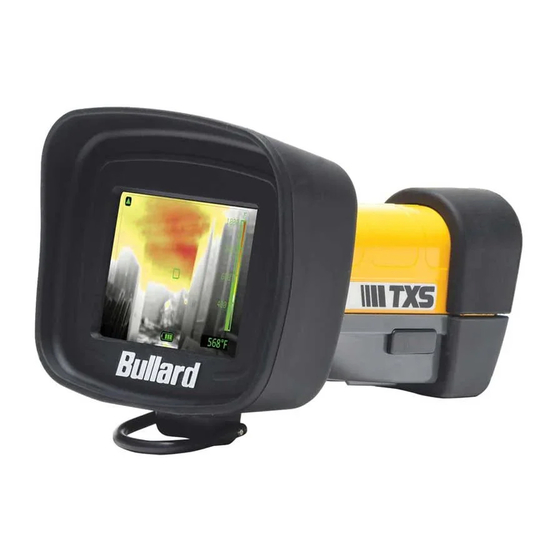

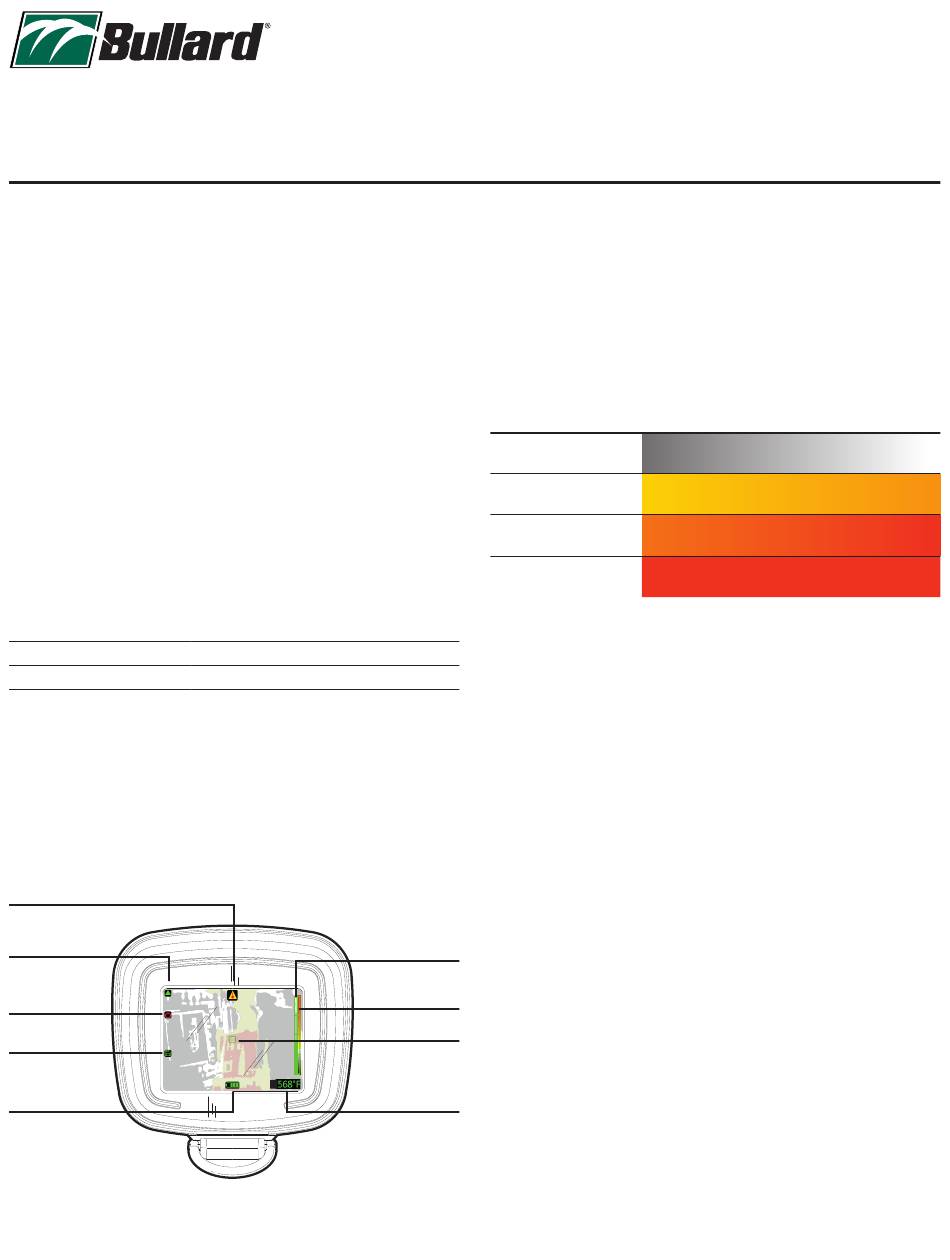

Bullard TXS Instruction Manual

GENERAL OPERATION

To turn ON your Bullard TXS, depress the green power button located
on top of the unit. The screen will display the Splash screen and the
green power button will illuminate. A thermal image will appear within
a few seconds. This image consists of black, white, and grey ele-
ments which indicate heat signatures of objects and scene dynamics.
Warmer elements appear as lighter shades, while cooler elements
appear as darker shades.
To turn OFF your Bullard TXS, depress and hold the power button until
the "red" power icon located in the top left of the display lights up
and a countdown timer appears until the imager powers off. When the
icon changes from red to green, release and the unit will power off.

LED INDICATIONS

The power button LED will be illuminated when the imager is powered
ON. In addition, the same LED changes colors to communicate other
system conditions related to charging, as indicated below.
Solid White
Pulsing Green
Solid Green
Flashing Orange
ON-SCREEN INDICATION
Overheat
Low Sensitivity Mode
Power-off
Data Connection
Power Source
Imager is powered ON (not charging)
Imager battery is charging
Imager is fully charged
Error condition (problem with the TI or
charging system)
F
1000
Temperature
800
Measurement Zone
600
400
w w w . b u l l a r d . c o m / t x s

SUPER RED HOT (SRH) COLORIZATION

The Bullard TXS utilizes easy-to-use Super Red Hot colorization which
displays heat levels in yellow, orange, and red hues. This feature iden-
tifies specific heat layers, thus alerting firefighters to areas of intense
heat through visual awareness of the hottest objects in a scene. The
SRH feature automatically adds colorization at temperatures above
500°F/260°C.
Temperature
< 500°F
< 260°C
500°F - 799°F
260°C - 426°C
800°F - 999°F
427°C - 537°C
> 1000°F
> 538°C
The SRH overlay remains semi-transparent, allowing the scene detail
such as thermal flows to remain visible under the SRH colorization.
SRH has a Heat Color Reference Bar adjacent to the Temperature
Bar. The temperature is illustrated by the filled height of the Tem-
perature Bar and by the Numeric Temperature Indicator below the
bar. The color reference bar is a visual indicator to quickly allow the
user to determine the meaning of the color displayed on the screen.
For example, if the Temperature Measurement Zone is pointed
to an object at 1000°F/538ºC the bar fills to the 1000°F mark.

TEMPERATURE BAR

The Temperature Bar is a bar-graph style temperature gauge in the
right portion of the display. The bar/numeric indicator displayed
represents the approximate temperature of the object viewed within
the Temperature Measurement Zone in the center of the display.
Accuracy of indication is dependent on numerous factors including
the distance from the object being viewed (accuracy decreases as
Temperature
Reference Bar
distance increases) and its emissivity (heat radiation properties).
Your Bullard TXS is factory-calibrated to emissivity corresponding
Heat Color
with normal construction materials. Objects with emissivity varying
Reference Bar
greatly from this norm (particularly reflective objects such as met-
als and shiny materials) will see a reduced accuracy of the tempera-
ture indication.
Numeric
Measurement
BULLARD TXS
THERMAL IMAGER
INSTRUCTION MANUAL
Low
™
High
