OPERATING INSTRUCTIONS
Dishwasher DFI654BXXL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFI654BXXL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko DFI654BXXL

Summary of Contents for Asko DFI654BXXL

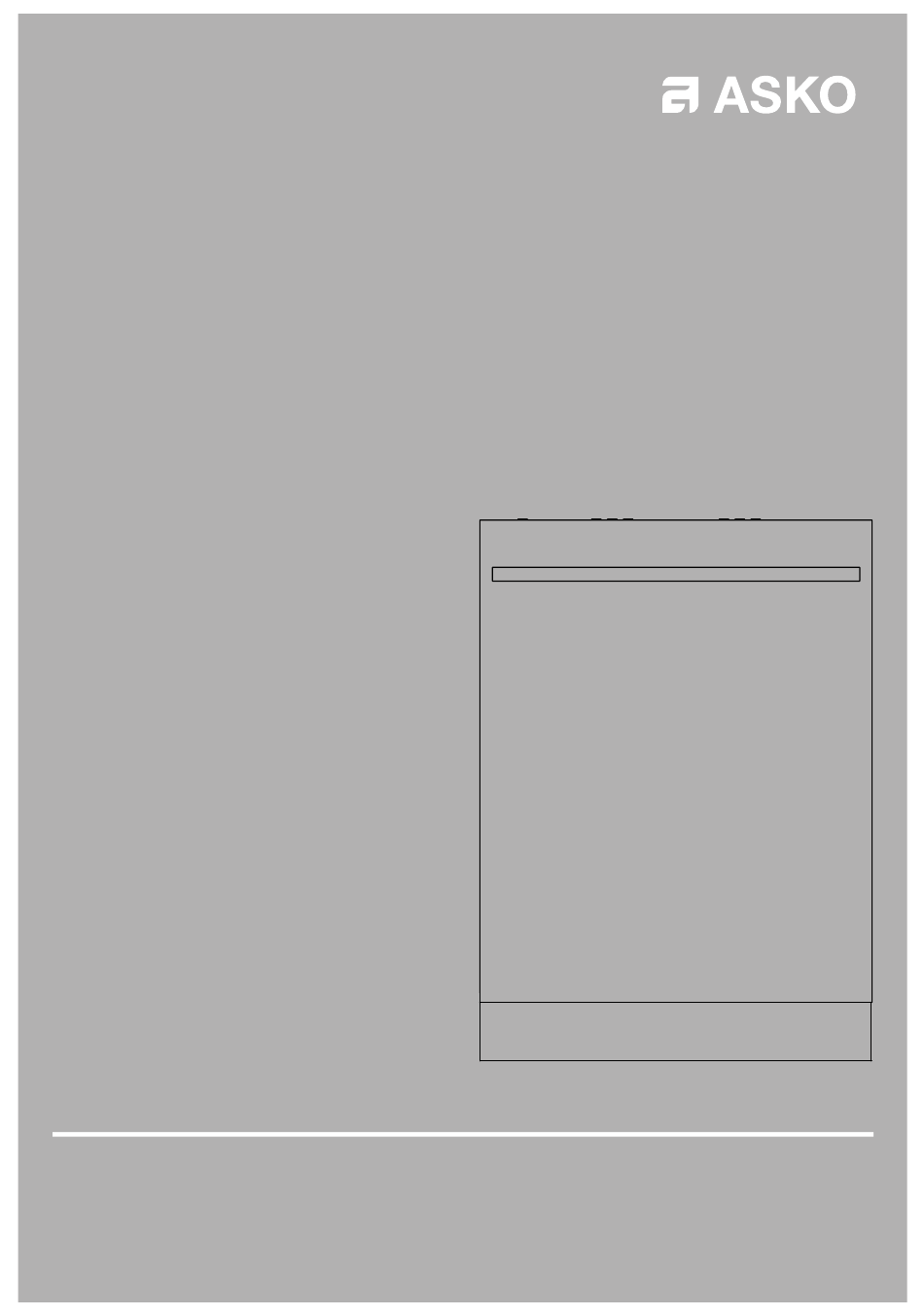

  • Page 1 OPERATING INSTRUCTIONS Dishwasher DFI654BXXL...

  • Page 2: Table Of Contents

    Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. See page 4.

  • Page 3: Safety Instructions

    Safety instructions Child safety NOTE! Children must be watched. Do not allow children Read the operating instructions and keep to use or play with the dishwasher. Be especially them in a safe place! vigilant when the door is open. Some detergent Number of place settings: 15 may remain inside! After adding detergent, al- Never use the dishwasher for any purpose...

  • Page 4: Before Washing For The First Time

    Open the door and press the main power switch. This is important with regard to how much detergent and rinse aid to "Welcome to your new ASKO. This is a first time set up." is shown use. on the display. It is important that you choose the right settings to en- sure good dishwashing results.

  • Page 5: Loading The Dishwasher

    Loading the dishwasher Greener dishwashing Fragile dishes Do not rinse under running water Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged Simply scrape off large food particles before loading the dishwasher. by dishwashing detergent.
  • Page 6 glasses are placed on the wine glass shelf and knives are placed in The dishwasher's baskets the knife stand on the right. The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup.
  • Page 7 WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments. Foldable tines Lower the foldable tines (plate supports) when washing pots and pans.

  • Page 8: Using The Dishwasher

    Using the dishwasher of the detergent to the prewash compartment. Contact the detergent Add detergent manufacturer if you have questions about the detergent. Press to open NOTE! Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effec- tively.
  • Page 9 Open the door and press the main power switch. Starting the dishwasher START STOP 2:00 Speed mode Select the program Select a program mode Select any options Crystal glass The main power switch A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass, such as crystal glass from Orrefors.
  • Page 10 Intensive mode How to get the best drying results Improves the dishwashing results, but the dishwasher uses more energy Fully load the dishwasher. and water. The program time is extended. Angle dishes with hollows, such as cups, so that the rinse water will run off.

  • Page 12: Settings

    Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection using the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection using the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting START...
  • Page 13 Settings Options Rinse aid 0/1/2/3/4/5 Setting for rinse aid dosage. The rinse aid dispenser can be adjust- ed between 0 (Off) and 5 (High dosage). Increase the rinse aid dosage: If the dishes have water marks. Decrease the rinse aid dosage: If the dishes have a sticky white/blue film.

  • Page 14: Care And Cleaning

    Care and cleaning 4 Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher. Top up rinse aid When the rinse aid needs topping up, the above symbol lights on the NOTE! display.
  • Page 15 3 Scoop out the water from the dishwasher tub. 4 In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain. 5 Turn the pump wheel located behind the drainage pump stop by hand.

  • Page 16: Troubleshooting

    Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
  • Page 17 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings blocked. Clean the spray arms. See Chapter Care and cleaning. Unsuitable dishwashing program.
  • Page 18 Problem Possible causes Action Water remains in the dishwasher. The filters are blocked. Clean the coarse and fine filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. The handle should point towards the back of the dishwasher.

  • Page 19: Technical Information

    Technical information Information on energy labelling Energy labelling Australian standard: AS/NZS 2007 Number of place settings: Dishwashing programs: ECO wash , no options Program time: 2:49 hours:minutes Connection: Cold water 20 °C Test method for noise measurement: IEC 60704-2-3 This dishwashing program is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption.

  • Page 20: Installation

    Installation [mm] 1238 30-94 *Remove locking nuts for an installed height of 860-861 mm. **Door length. Nominal dimensions. Actual measurements may vary. It is important that you read through and follow the instructions and Drainage connection directions below. Conduct installation and connection in accordance See the separate installation instructions for necessary information.

  • Page 21: Asko Service

    If you have encountered a problem that you cannot resolve, Do not exceed the permitted water supply temperature. Certain ma- please contact your nearest dealer, see www.asko.com. terials used in some cookware cannot withstand high heat. See When making contact, provide the details on the serial number plate.

  • Page 22: Information For Test Institute

    Information for test institute Request test institute information via e-mail dishwashers@appliance- development.com. The request should include the details on the product’s serial number plate. Include the article number (1) and the serial number (2). ART. NO.: SERIAL NO.:...

  • Page 23: Your Notes

    Your notes...

  • Page 24: Quick Guide

    Use rinse aid to achieve good washing and drying results. (See page 4.) Refill rinse aid indicator. Select a program, a program mode and any options (See page 9.) Press Start/Stop, close the door START STOP ASKO APPLIANCES SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
