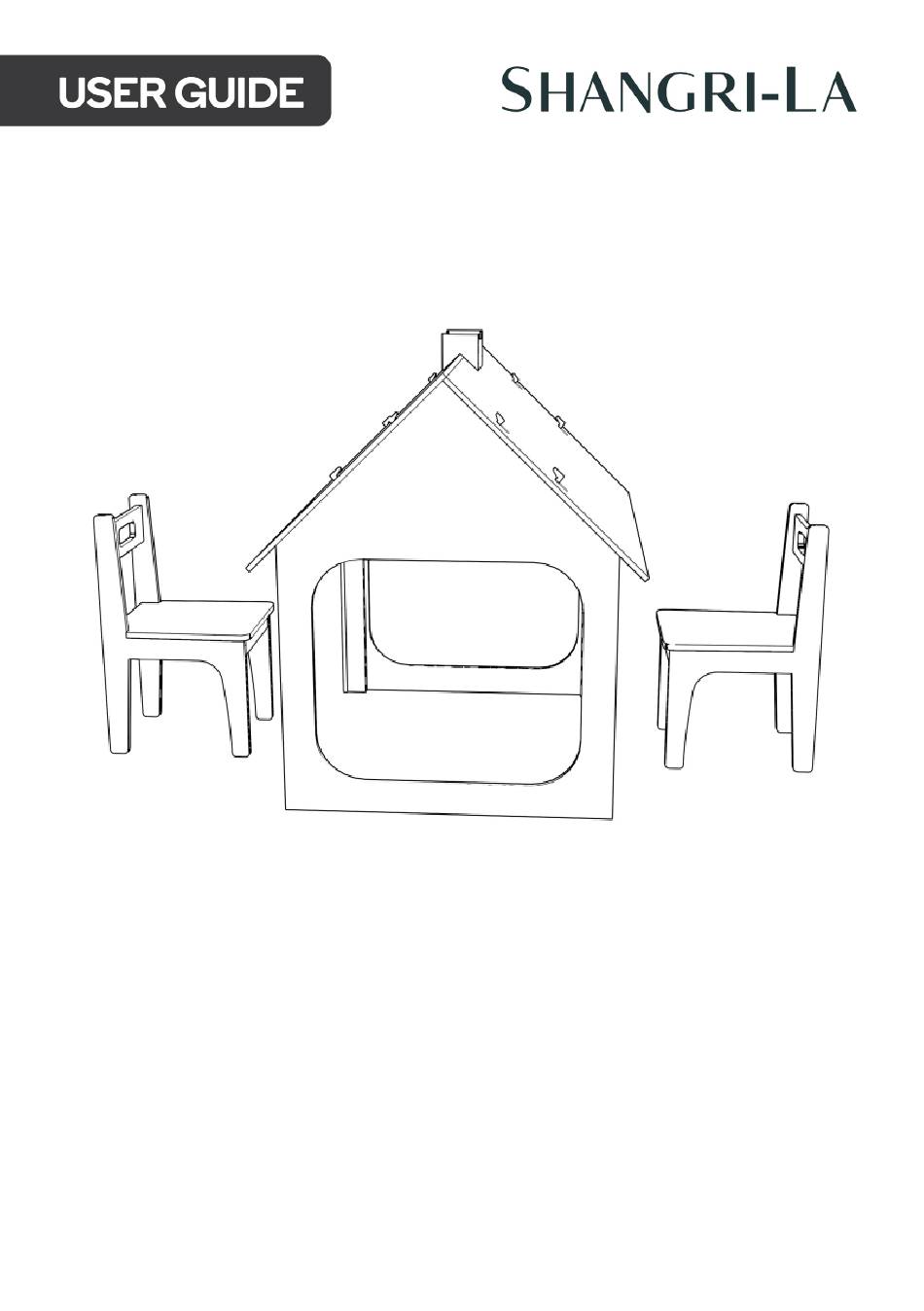

- Page 1 PENNY PLAYHOUSE ACTIVITY TABLE WHITE/NATURAL SLPENNATWNA...
- Page 3 COMPONENTS Left roof panel Chair side frame (x4) Right roof panel Chair back (x2) Chimney Chair cross bar (x4) Side panel (x2) Seat (x2) Horizontal bar (x2) Side bar (x4) Support bar (x4) Hardware A Long screw (x48) B Bracket (x8) C Short screw (x16)
- Page 4 ASSEMBLY Step 1: Using a Phillips screwdriver, secure x2 chair side frames (7) together with x1 chair back (8) and x2 chair cross bars (9) with x8 long screws (A). This creates a chair frame assembly. Repeat this process to create another chair frame assembly.
- Page 5 Step 2: Flip a chair frame assembly upside down. Place a seat (10) onto the chair frame assembly and attach the x4 brackets (B) as shown below. Insert and tighten x8 short screws (C) through the holes of the brackets. Repeat this process with the other chair frame assembly.
- Page 6 The chairs are now complete.
- Page 7 Step 4: Secure x2 side bars (11) to a side panel (4) using x6 long screws (A). This creates a side panel assembly. Repeat this process to create another side panel assembly. Step 5: Secure x2 support bars (6) to one side panel assembly using x6 long screws (A). Repeat this process with the other side panel assembly.
- Page 8 Step 6: Secure the horizontal bars (5) to the support bars (6) of each side panel assembly using x8 long screws (A). Step 7: Hook on and attach the right roof panel (2) onto the side panels (4).
- Page 9 Step 8: Attach the left roof panel (1) the same way onto the side panels (4). Step 9: Place the chimney (3) between the left and right roof panes (1, 2).
- Page 10 Assembly complete.
- Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
